MTL-V4B 4,6,8 Vise on the Tooling Block
Description
다양한 작업물의 최적화된 적용을 위한 유연한 개방 용량.
두꺼운 작업물에 적합하며, 특수 설계로 작업물 클램핑의 안정성을 높일 수 있습니다.

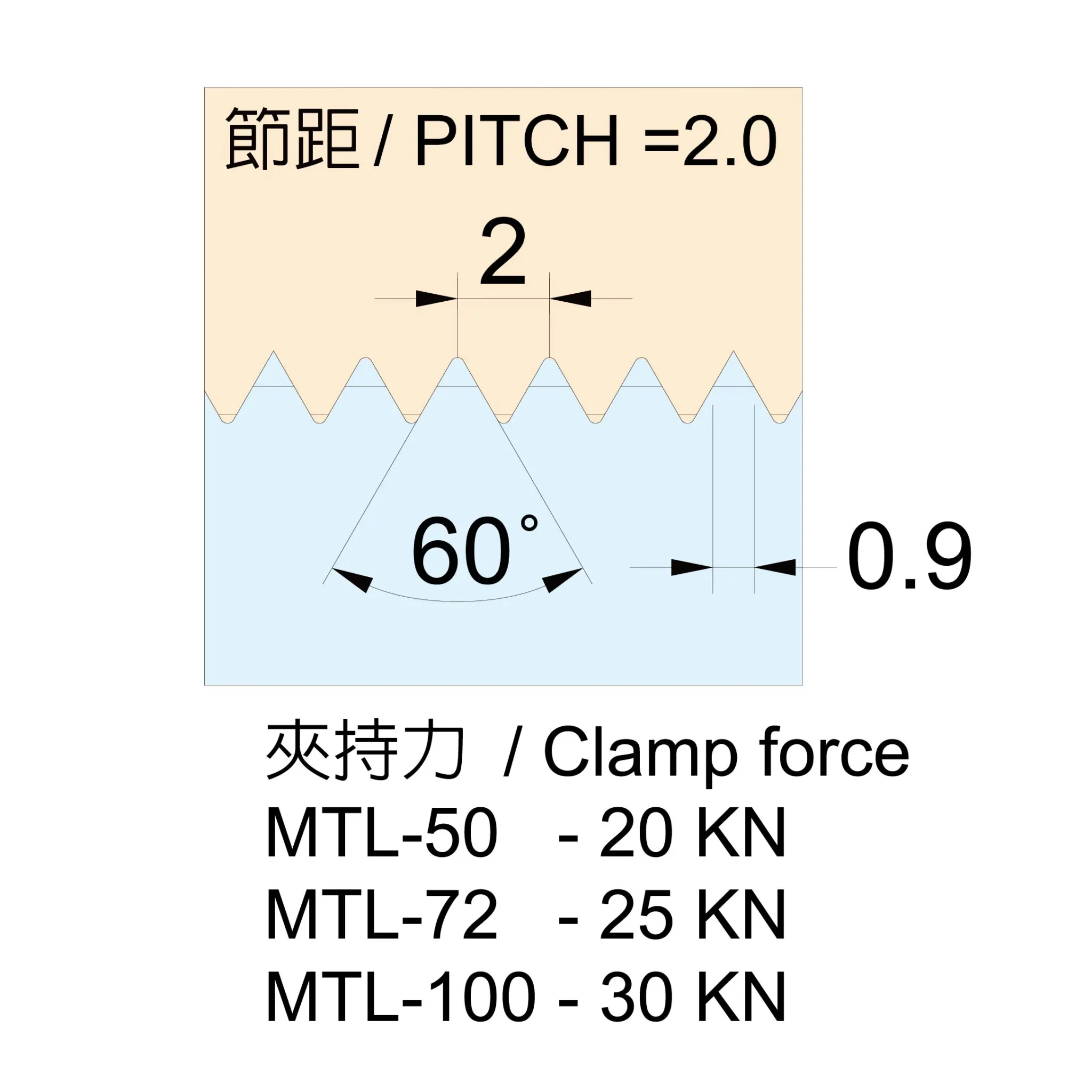

높은 클램핑력으로 중부하 작업에 적합
바이스 본체 – 슬라이딩 표면: 경화, 내구성 및 정확성이 우수함.
작업 효율성을 높이기 위한 추가 구성 요소가 쉽습니다.

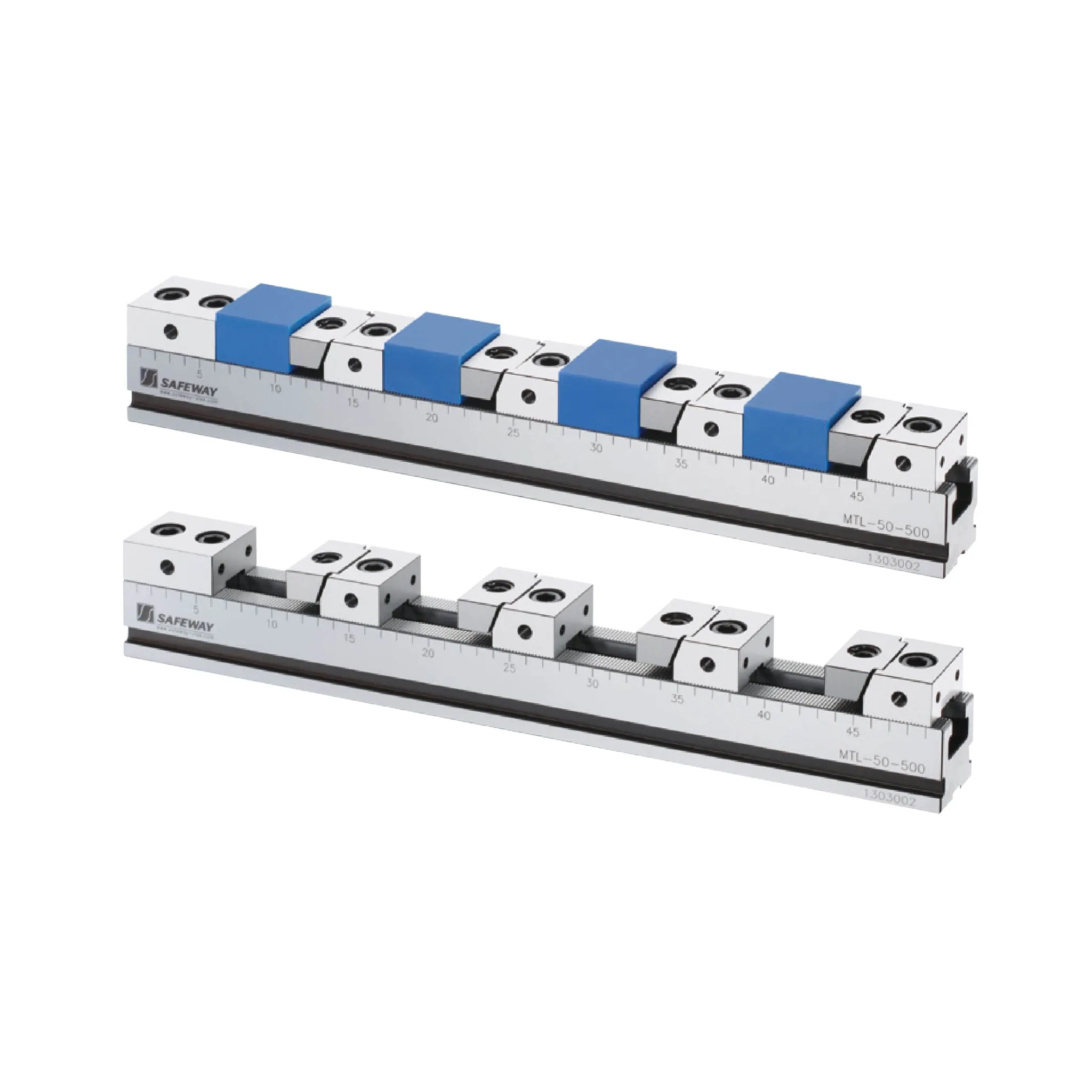

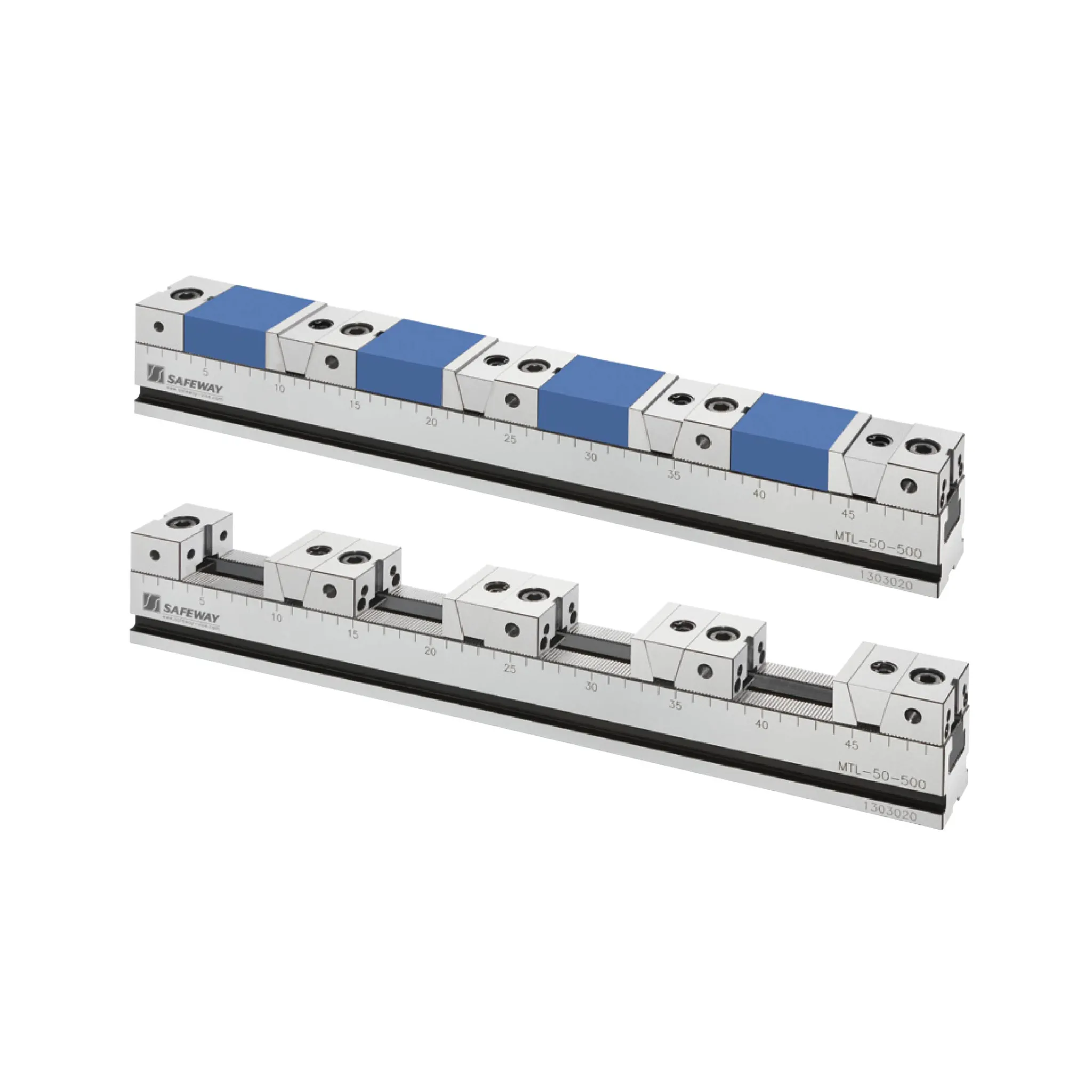

모델명 : MTL-A(싱글-2피스) / MTL-D(싱글-3피스) / MTL-T(트윈피스)
턱 폭(50/72/100) x 길이(300/400/500/600/700)의 전체 범위
고정 배럴이 있는 4세트
고정 배럴이 있는 6세트
고정 배럴이 있는 8세트
모델
하판 너비(mm)
중간 기둥 너비(mm)
총 높이(mm)
호환 MTL 모델
수량 (pcs)
호환 지그 버킷 모델

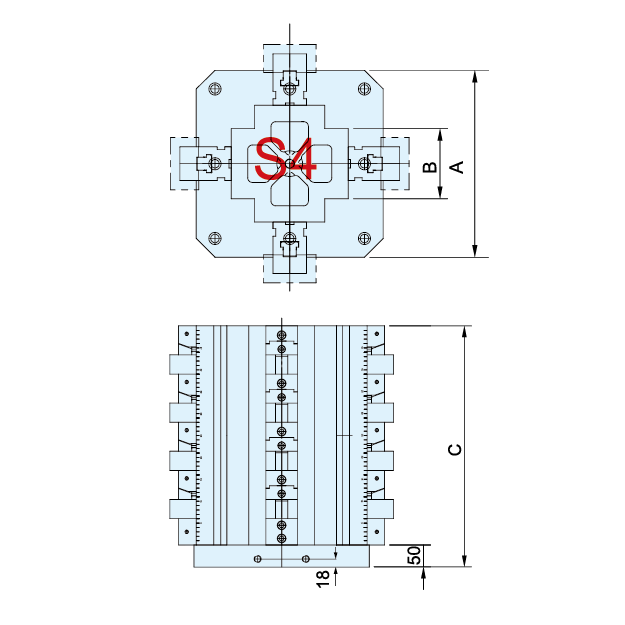

4개의 수직 고정 배럴
44840055 MTL-400-5055S4-A
400
150
550
43005050 MTL-50-500-A
4
07888602 SJB-400x150x550TC
44840065 MTL-400-5065S4-A
400
150
650
43005060 MTL-50-600-A
4
07888604 SJB-400x150x650TC
44850065 MTL-500-5065S4-A
500
160
650
43005060 MTL-50-600-A
4
07888606 SJB-500x160x650TC
44850075 MTL-500-5075S4-A
500
160
750
43005070 MTL-50-700-A
4
07888608 SJB-500x160x750TC
44863075 MTL-630-5075S4-A
630
200
750
43005070 MTL-50-700-A
4
07888610 SJB-630x200x750TC
45440055 MTL-400-7255S4-A
400
150
550
43207250 MTL-72-500-A
4
07888602 SJB-400x150x550TC
45440065 MTL-400-7265S4-A
400
150
650
43207260 MTL-72-600-A
4
07888604 SJB-400x150x650TC
45450065 MTL-500-7265S4-A
500
160
650
43207260 MTL-72-600-A
4
07888606 SJB-500x160x650TC
45450075 MTL-500-7275S4-A
500
160
750
43207270 MTL-72-700-A
4
07888608 SJB-500x160x750TC
45463075 MTL-630-7275S4-A
630
200
750
43207270 MTL-72-700-A
4
07888610 SJB-630x200x750TC
46040055 MTL-400-10055S4-A
400
150
550
43410050 MTL-100-500-A
4
07888602 SJB-400x150x550TC
46040065 MTL-400-10065S4-A
400
150
650
43410060 MTL-100-600-A
4
07888604 SJB-400x150x650TC
46050065 MTL-500-10065S4-A
500
160
650
43410060 MTL-100-600-A
4
07888606 SJB-500x160x650TC
46050075 MTL-500-10075S4-A
500
160
750
43410070 MTL-100-700-A
4
07888608 SJB-500x160x750TC
46063075 MTL-630-10075S4-A
630
200
750
43410070 MTL-100-700-A
4
07888610 SJB-630x200x750TC

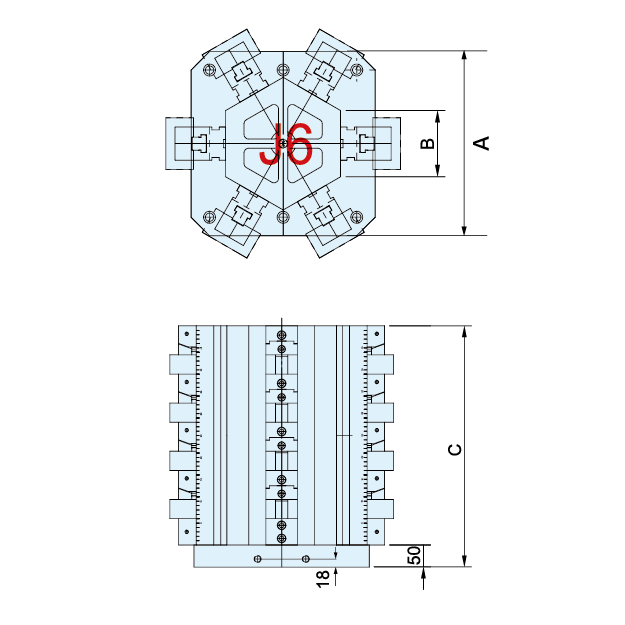

6개의 수직 고정 배럴
45040055 MTL-400-5055J6-A
400
144
550
43005050 MTL-50-500-A
6
07889202 SJB-400x144x550K6
45040065 MTL-400-5065J6-A
400
144
650
43005060 MTL-50-600-A
6
07889204 SJB-400x144x650K6
45050055 MTL-500-5065J6-A
500
173
650
43005060 MTL-50-600-A
6
07889206 SJB-500x173x650K6
45050075 MTL-500-5075J6-A
500
173
750
43005070 MTL-50-700-A
6
07889208 SJB-500x173x750K6
45063075 MTL-630-5075J6-A
630
205
750
43005070 MTL-50-700-A
6
07889210 SJB-630x205x750K6
45640055 MTL-400-7255J6-A
400
144
550
43207250 MTL-72-500-A
6
07889202 SJB-400x144x550K6
45650065 MTL-400-7265J6-A
400
144
650
43207260 MTL-72-600-A
6
07889204 SJB-400x144x650K6
45650065 MTL-500-7265J6-A
500
173
650
43207260 MTL-72-600-A
6
07889206 SJB-500x173x650K6
45650075 MTL-500-7275J6-A
500
173
750
43207270 MTL-72-700-A
6
07889208 SJB-500x173x750K6
45663075 MTL-630-7275J6-A
630
205
750
43207270 MTL-72-700-A
6
07889210 SJB-630x205x750K6
46240055 MTL-400-10055J6-A
400
144
550
43410050 MTL-100-500-A
6
07889202 SJB-400x144x550K6
46250065 MTL-400-10065J6-A
400
144
650
43410060 MTL-100-600-A
6
07889204 SJB-400x144x650K6
46250065 MTL-500-10065J6-A
500
173
650
43410060 MTL-100-600-A
6
07889206 SJB-500x173x650K6
46250075 MTL-500-10075J6-A
500
173
750
43410070 MTL-100-700-A
6
07889208 SJB-500x173x750K6
46263075 MTL-630-10075J6-A
630
205
750
43410070 MTL-100-700-A
6
07889210 SJB-630x205x750K6

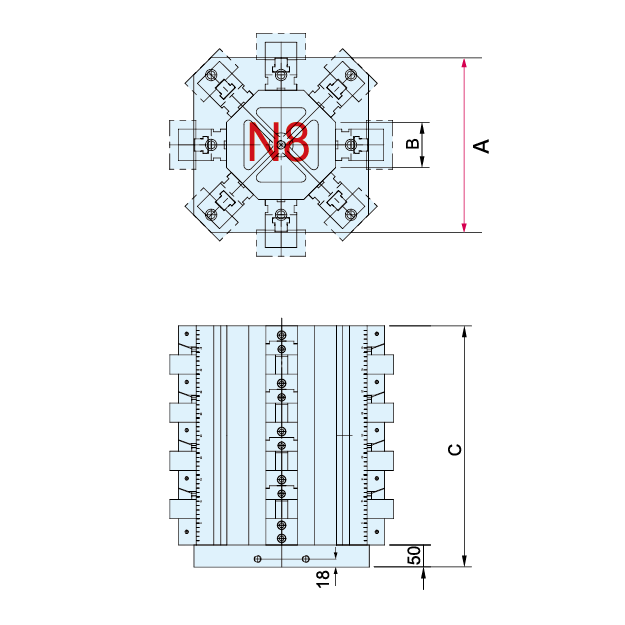

8개의 수직 고정 배럴
45240055 MTL-400-5055N8-A
400
103
550
43005050 MTL-50-500-A
8
07890202 SJB-400x103x550P8
45240065 MTL-400-5065N8-A
400
103
650
43005060 MTL-50-600-A
8
07890204 SJB-400x103x650P8
45250065 MTL-500-5065N8-A
500
124
650
43005060 MTL-50-600-A
8
07890206 SJB-500x124x650P8
45250075 MTL-500-5075N8-A
500
124
750
43005070 MTL-50-700-A
8
07890208 SJB-500x124x750P8
45263055 MTL-630-5075N8-A
630
149
750
43005070 MTL-50-700-A
8
07890210 SJB-630x149x750P8
45840055 MTL-400-7255N8-A
400
103
550
43207250 MTL-72-500-A
8
07890202 SJB-400x103x550P8
45840065 MTL-400-7265N8-A
400
103
650
43207260 MTL-72-600-A
8
07890204 SJB-400x103x650P8
45840065 MTL-500-7265N8-A
500
124
650
43207260 MTL-72-600-A
8
07890206 SJB-500x124x650P8
45850075 MTL-500-7275N8-A
500
124
750
43207270 MTL-72-700-A
8
07890208 SJB-500x124x750P8
45863055 MTL-630-7275N8-A
630
149
750
43207270 MTL-72-700-A
8
07890210 SJB-630x149x750P8
46440055 MTL-400-10055N8-A
400
103
550
43410050 MTL-100-500-A
8
07890202 SJB-400x103x550P8
46440065 MTL-400-10065N8-A
400
103
650
43410060 MTL-100-600-A
8
07890204 SJB-400x103x650P8
46440065 MTL-500-10065N8-A
500
124
650
43410060 MTL-100-600-A
8
07890206 SJB-500x124x650P8
46450075 MTL-500-10075N8-A
500
124
750
43410070 MTL-100-700-A
8
07890208 SJB-500x124x750P8
46463055 MTL-630-10075N8-A
630
149
750
43410070 MTL-100-700-A
8
07890210 SJB-630x149x750P8
