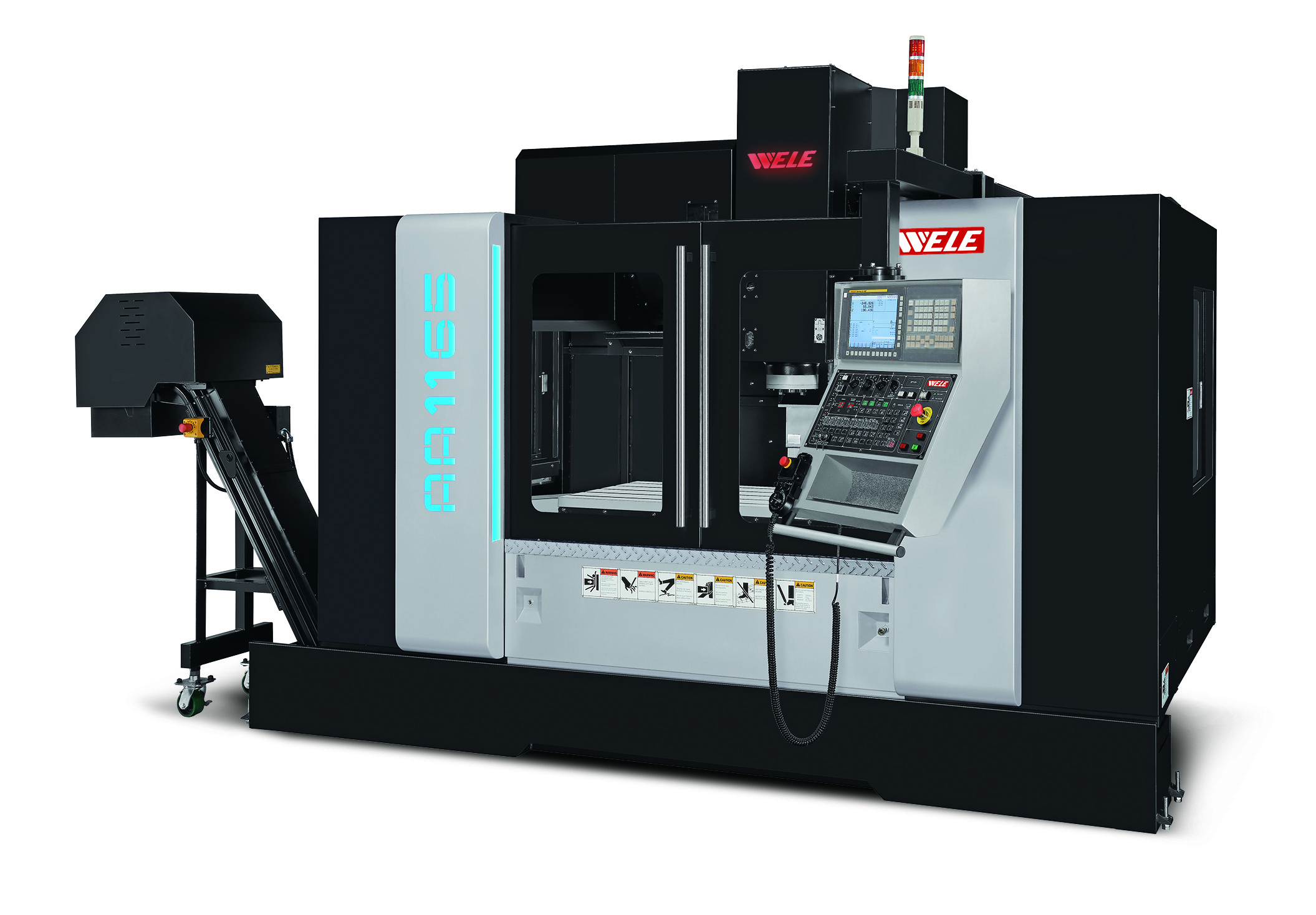

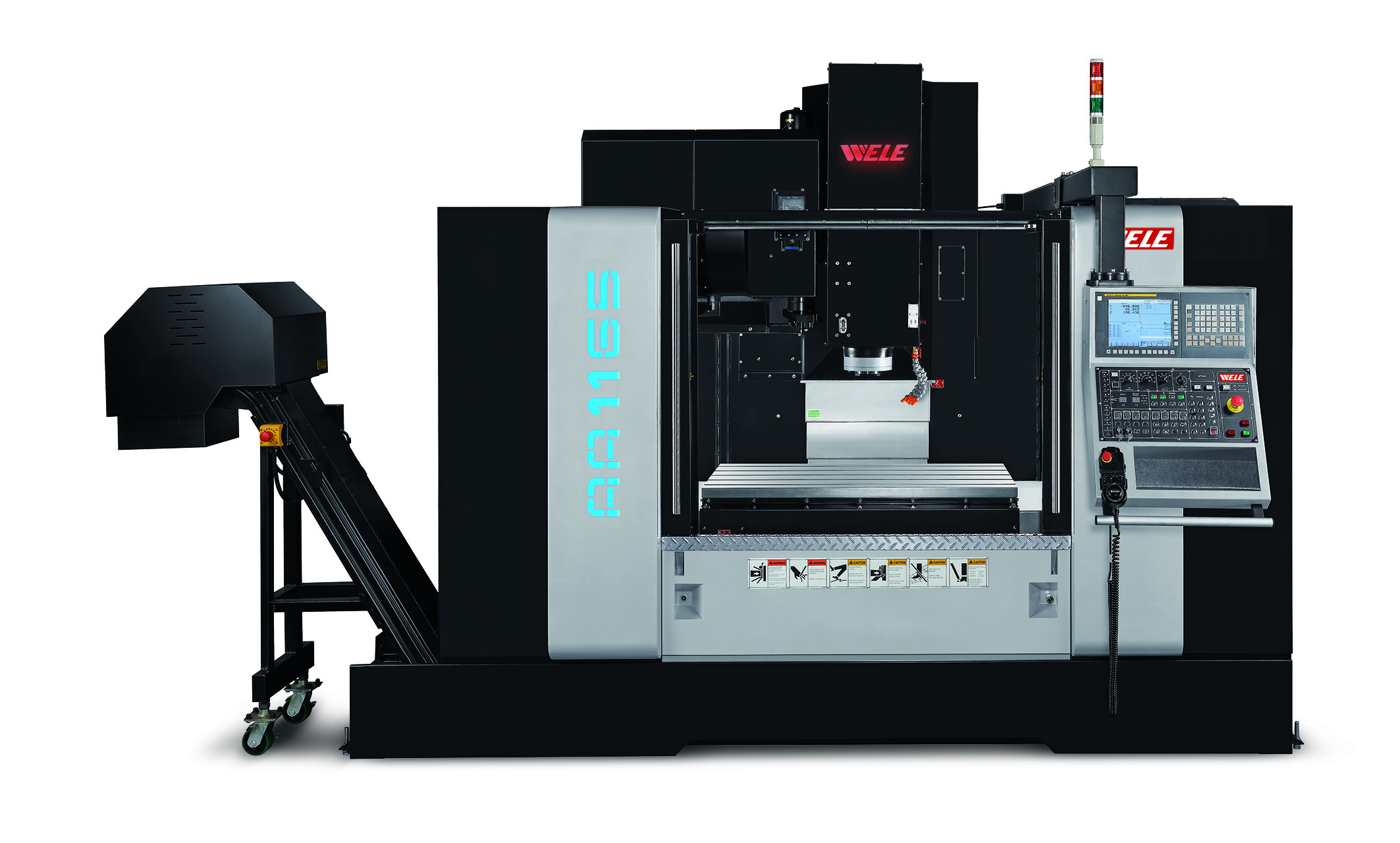

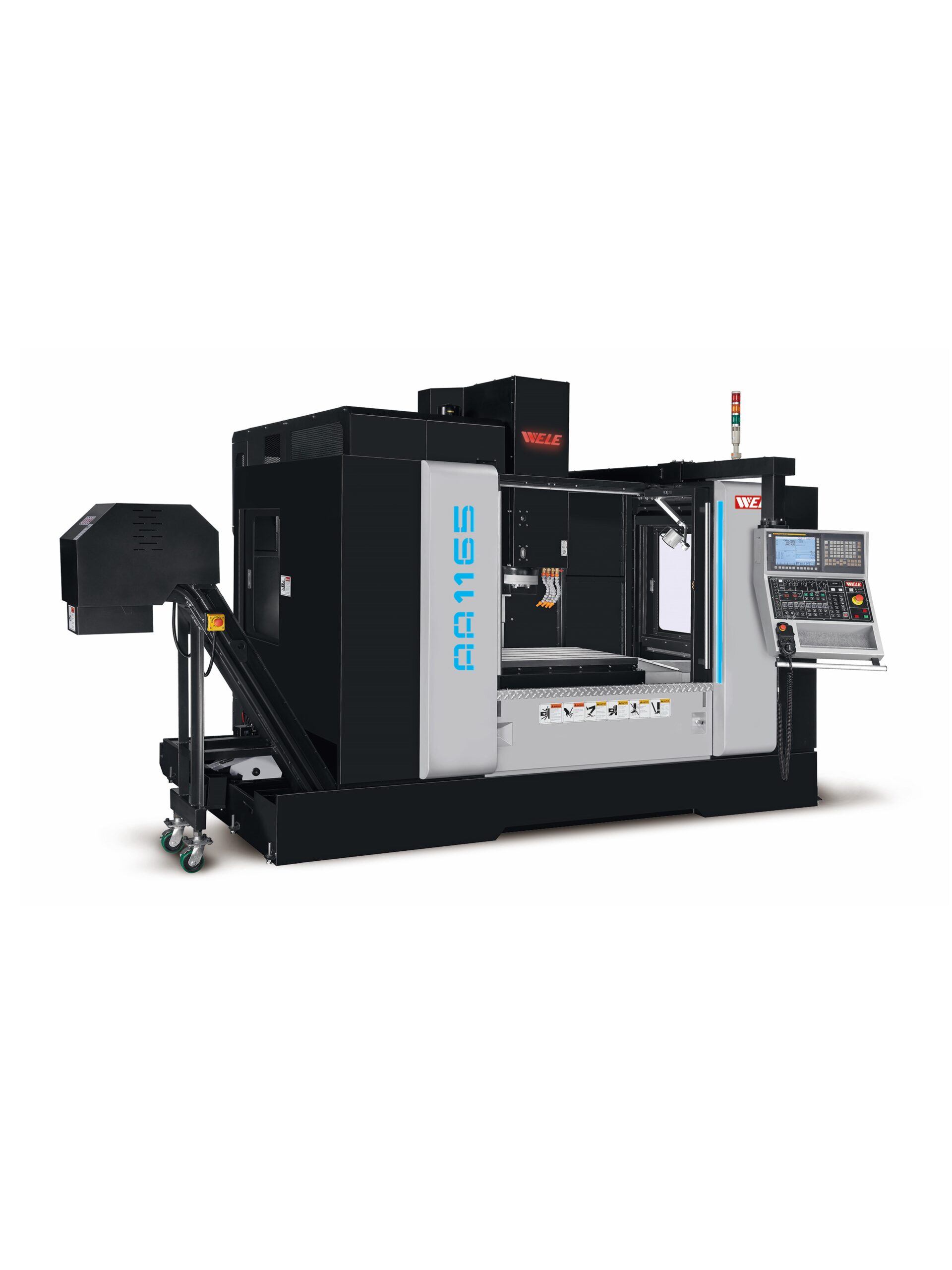

AA Series
Boxway type Vertical Machining Center

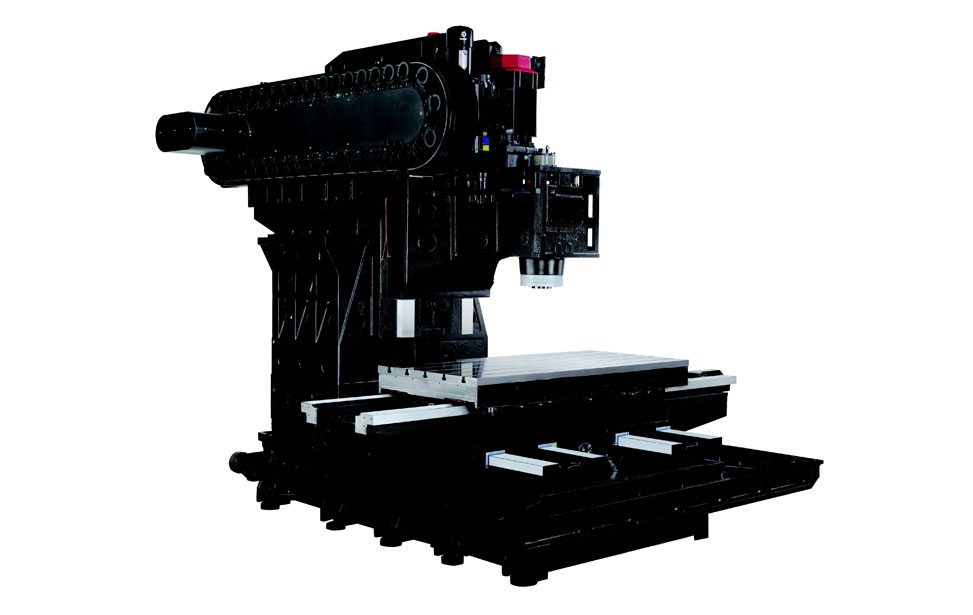

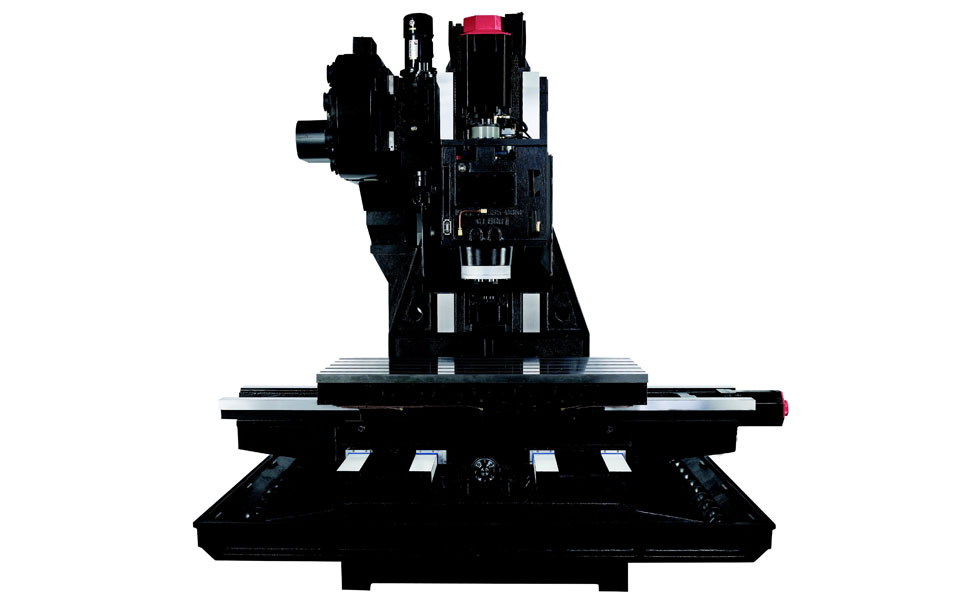

이 기계는 높은 성능의 절삭 작업을 위해 설계되었습니다. 넉넉한 슬라이딩 가이드를 갖추고 있으며, 기본으로 탑재된 기계식 2단 기어 헤드가 정밀 스핀들과 직접 연결되어 우수한 성능을 발휘합니다.
Description
AAx65
AAx80
AAx90
| Specification/ Machine model | Unit | AA965 | AA1165 | AA1365 | AA1565 |
|---|---|---|---|---|---|
| X axis travel | mm (in) | 900 (35.4) | 1100 (43.3) | 1300 (51.2) | 1500 (59.1) |
| Y axis travel | mm (in) | 650 (25.6) | |||
| Z axis travel | mm (in) | 600 (23.6) | |||
| From spindle nose to the centerline of table | mm (in) | 125~725 (4.9-28.5) | |||
| Table dimension (X direction) | mm (in) | 1100 (43.3) | 1300 (51.2) | 1450 (57.1) | 1650 (65) |
| Table dimension (Y direction) | mm (in) | 650 (25.6) | |||
| Table loading | kg (lb) | 900 (1984) | 1100 (2420) | 1300 (2860) | 1500 (3300) |
| Spindle motor power | kW (HP) | 7.5/11 (10/15) | |||
| Spindle speed | rpm | belt type, 8000 | |||
| Spindle taper | BT#40(ISO 40) | ||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.8) | 24000 (944.8) | 24000 (944.8) | 15000 (590.6) |
| Rapid feedrate – Y axis | mm(in)/min | 24000 (944.8) | 24000 (944.8) | 24000 (944.8) | 15000 (590.6) |
| Rapid feedrate – Z axis | mm(in)/min | 20000 (787.4) | 20000 (787.4) | 20000 (787.4) | 12000 (472.4) |
| Cutting federate | mm(in)/min | 1-10000 (393.7) | 1-10000 (393.7) | 1-10000 (393.7) | 1-8000 (315) |
| Capacity of tool magazine | pcs | 20T | |||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 80/150 (3.1/5.9) | 80/150 (3.1/5.9) | 80/150 (3.1/5.9) | 110/200 (4.3/7.9) |
| Max. length of tool | mm (in) | 250(9.8) | 250(9.8) | 250(9.8) | 300(11.8) |
| Max. weight of tool | kg (lb) | 7(15) | 7(15) | 7(15) | 15(33) |
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.012 (P≦0.0005) | P≦0.012 (P≦0.0005) | P≦0.012 (P≦0.0005) | P≦0.015 (P≦0.0006) |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.006 (Ps≦0.0002) | Ps≦0.006 (Ps≦0.0002) | Ps≦0.006 (Ps≦0.0002) | Ps≦0.008 (Ps≦0.0003) |
| Length of the machine | mm (in) | 2940 (115.7) | 3200 (126) | 3630 (142.9) | 4110 (161.8) |
| Width of the machine | mm (in) | 2240 (88.2) | 2240 (88.2) | 2240 (88.2) | 2240 (88.2) |
| Height of the machine | mm (in) | 2940 (115.7) | 2940 (115.7) | 2940 (115.7) | 2940 (115.7) |
| Weight of the machine | kg (lb) | 7000 (15432) | 7200 (15873) | 7600 (16755) | 8100 (17857) |
| Specification/ Machine model | Unit | AA1480 | AA1680 | AA1880 |
|---|---|---|---|---|
| X axis travel | mm (in) | 1400 (55.1) | 1600 (63) | 1800 (70.9) |
| Y axis travel | mm (in) | 800 (31.5) | ||
| Z axis travel | mm (in) | 700 (27.6) | 800 (31.5) | 800 (31.5) |
| From spindle nose to the centerline of table | mm (in) | 200~900 (7.9~35.4) | 200~1000 (7.9~39.4) | 200~1000 (7.9~39.4) |
| Table dimension (X direction) | mm (in) | 1550 (61) | 1750 (68.9) | 1950 (76.8) |
| Table dimension (Y direction) | mm (in) | 800 (31.5) | ||
| Table loading | kg (lb) | 1800 (3968) | 2000 (4409) | 2200 (4850) |
| Spindle motor power | kW (HP) | 11/15 (15/20) | ||
| Spindle speed | rpm | belted type, 6000 | ||
| Spindle taper | BT#50 (ISO 50) | |||
| Rapid feedrate – X axis | mm(in)/min | 15000 (590.6) | ||
| Rapid feedrate – Y axis | mm(in)/min | 15000 (590.6) | ||
| Rapid feedrate – Z axis | mm(in)/min | 12000 (472.4) | ||
| Cutting federate | mm(in)/min | 1-8000 (0.04-315) | ||
| Capacity of tool magazine | pcs | 20T | ||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 110/200 (4.3/7.9) | ||
| Max. length of tool | mm (in) | 300(11.8) | ||
| Max. weight of tool | kg (lb) | 15(33) | ||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.015 (P≦0.0006) | ||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.008 (Ps≦0.0003) | ||
| Length of the machine | mm (in) | 4050 (159.4) | 4450 (175.2) | 4850 (190.9) |
| Width of the machine | mm (in) | 3100 (122) | 3140 (123.6) | 3140 (123.6) |
| Height of the machine | mm (in) | 3343 (131.6) | 3478 (136.9) | 3478 (136.9) |
| Weight of the machine | kg (lb) | 12000 (26455) | 16000 (35274) | 18000 (39683) |
| Specification/ Machine model | Unit | AA1890 | AA2090 | AA2590 |
|---|---|---|---|---|
| X axis travel | mm (in) | 1800 (70.9) | 2000 (78.7) | 2500 (98.4) |
| Y axis travel | mm (in) | 900 (35.4) | ||
| Z axis travel | mm (in) | 900 (35.4) | ||
| From spindle nose to the centerline of table | mm (in) | 200~1100 (7.9~43.3) | ||
| Table dimension (X direction) | mm (in) | 1950 (76.8) | 2150 (84.6) | 2650 (104.3) |
| Table dimension (Y direction) | mm (in) | 900 (35.4) | ||
| Table loading | kg (lb) | 2000 (4409) | 2200 (4850) | 3000 (6600) |
| Spindle motor power | kW (HP) | 11/15 (15/20) | ||
| Spindle speed | rpm | gear type, 6000 | ||
| Spindle taper | BT#50 (ISO 50) | |||
| Rapid feedrate – X axis | mm(in)/min | 18000 (708.7) | ||
| Rapid feedrate – Y axis | mm(in)/min | 18000 (708.7) | ||
| Rapid feedrate – Z axis | mm(in)/min | 12000 (472.4) | ||
| Cutting federate | mm(in)/min | 1-10000 (0.04-393.7) | ||
| Capacity of tool magazine | pcs | 30T | ||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 110/200 (4.3/7.9) | ||
| Max. length of tool | mm (in) | 300(11.8) | ||
| Max. weight of tool | kg (lb) | 15(33) | ||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.020 (P≦0.0008) | ||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.010 (Ps≦0.0004) | ||
| Length of the machine | mm (in) | 5300 (208.7) | 5300 (208.7) | 6000 (236.2) |
| Width of the machine | mm (in) | 3300 (129.9) | ||
| Height of the machine | mm (in) | 3620 (142.5) | 3620 (142.5) | 3620 (142.5) |
| Weight of the machine | kg (lb) | 20000 (44092) | 21000 (46297) | 23000 (50600) |
