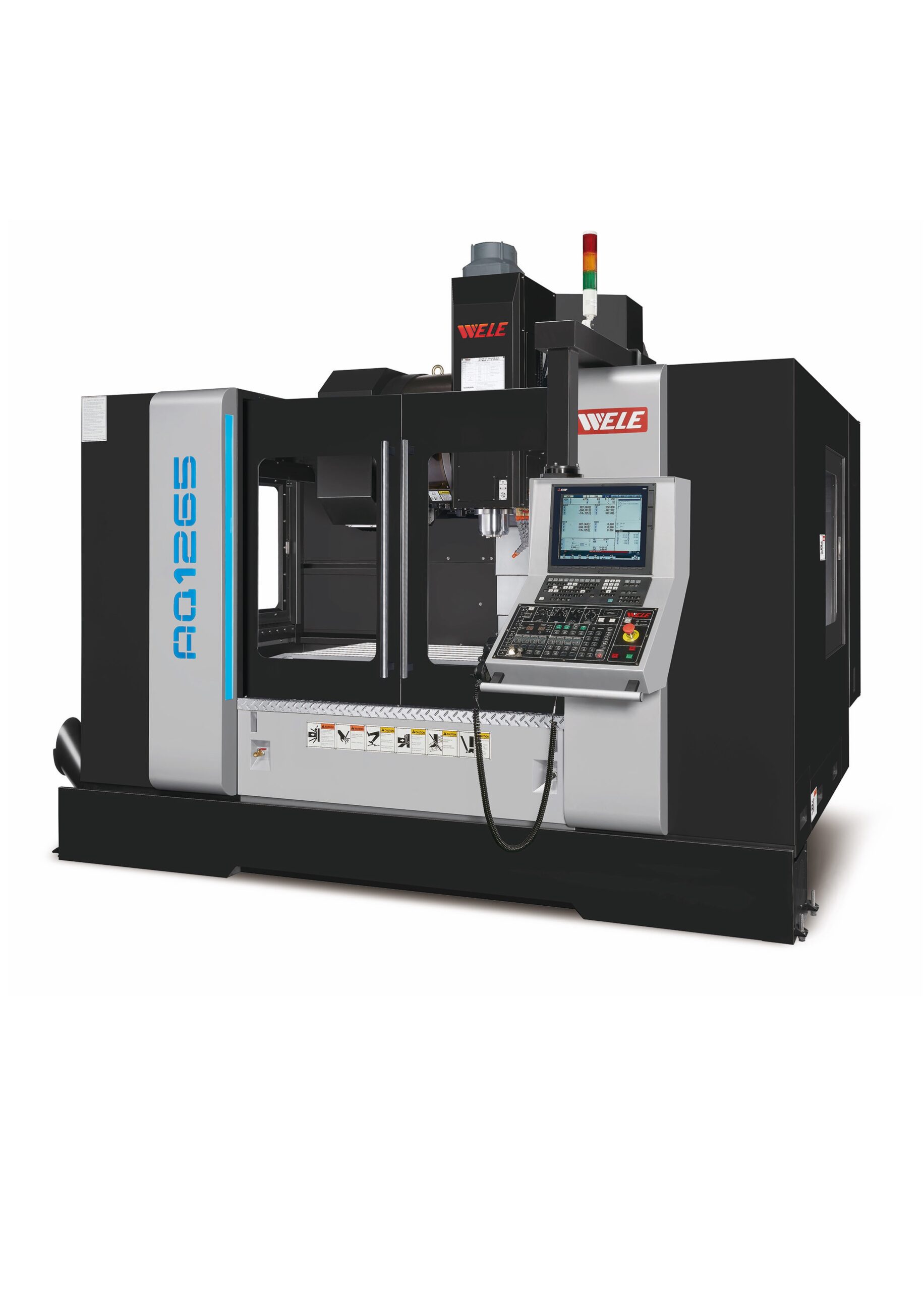

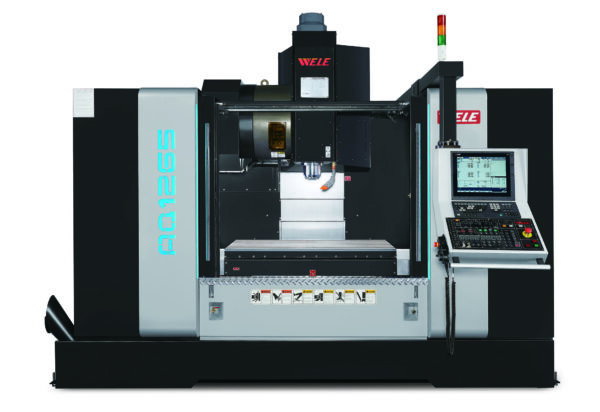

AQ Series
Linear Guideway type Vertical Machining Center

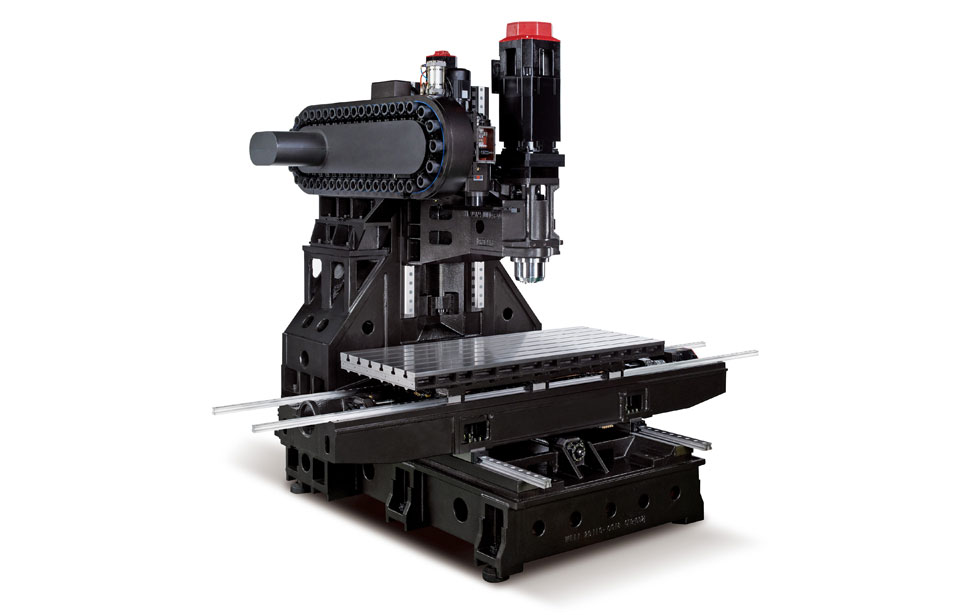

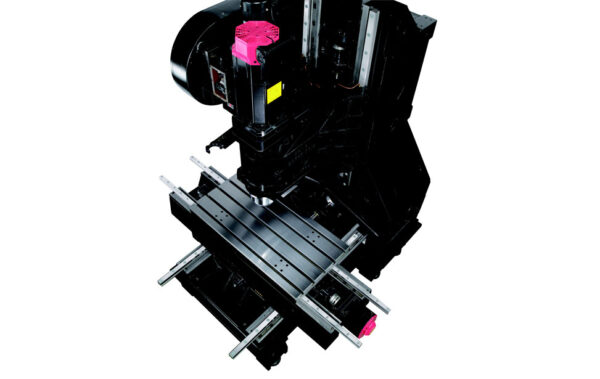

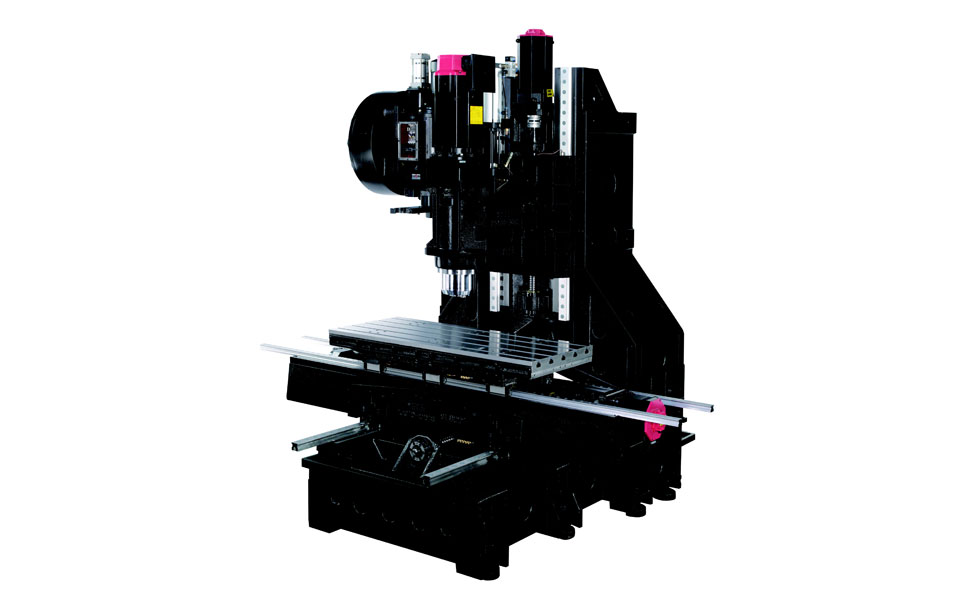

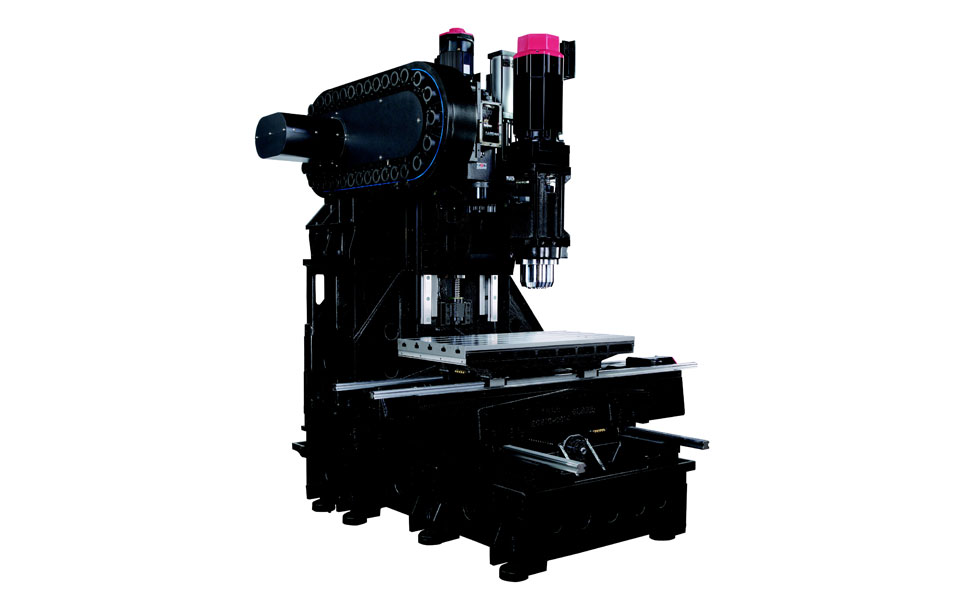

• 볼/롤러 가이드웨이를 이용한 고성능 축 방향 이동을 위해 개발되었으며, 피드 시스템의 높은 반응과 10,000rpm 이상의 고속 스핀을 제공합니다.
• 경합금 소재 가공 및 알루미늄 가공을 위한 배열을 갖추고 있습니다.
• Y축 최대 650mm, X축 최대 1200mm~1600mm까지 지원됩니다.
• 48m/ 분의 빠른 이송 속도를 제공합니다.
Description
AQx50
AQx65
| Specification | Unit | AQ850 | AQ1050 |
|---|---|---|---|
| X axis travel | mm (in) | 800 (31.5) | 1020 (40.2) |
| Y axis travel | mm (in) | 510 (20.1) | |
| Z axis travel | mm (in) | 510 (20.1) | |
| From spindle nose to the centerline of table | mm (in) | 125-635 (4.9-25) | |
| Table dimension (X direction) | mm (in) | 1000 (39.4) | 1200 (47.2) |
| Table dimension (Y direction) | mm (in) | 510 (20.1) | |
| Table loading | kg (lb) | 500 (1102) | |
| Spindle motor power | kW (HP) | 5.5/7.5(7.5/11) | |
| Spindle speed | rpm | 15000, Built-in spindle | |
| Spindle taper | BBT40 | ||
| Rapid feedrate – X axis | mm(in)/min | 48000 (1889.8) | |
| Rapid feedrate – Y axis | mm(in)/min | 48000 (1889.8) | |
| Rapid feedrate – Z axis | mm(in)/min | 36000 (1417.3) | |
| Cutting federate | mm(in)/min | 1-10000 (0.04-393.7) | |
| Capacity of tool magazine | pcs | 24T | |
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 80/150 (3.1/5.9) | |
| Max. length of tool | mm (in) | 250(9.8) | |
| Max. weight of tool | kg (lb) | 7(15) | |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.005/300 (±0.0002/11.8) | |
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.012 (P≦0.0005) | |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.006 (Ps≦0.0002) | |
| Length of the machine | mm (in) | 2900 (114.2) | 3100 (122) |
| Width of the machine | mm (in) | 2150 (84.6) | |
| Height of the machine | mm (in) | 2900 (114.2) | |
| Weight of the machine | kg (lb) | 6700 (14771) | 7200 (15873) |
| Specification | Unit | AQ1265 | AQ1465 | AQ1665 |
|---|---|---|---|---|
| X axis travel | mm (in) | 1200 (47.2) | 1400 (55.1) | 1600 (63) |
| Y axis travel | mm (in) | 650 (25.6) | ||
| Z axis travel | mm (in) | 610 (24) | ||
| From spindle nose to the centerline of table | mm (in) | 150-760 (5.9-29.9) | ||
| Table dimension (X direction) | mm (in) | 1400 (55.1) | 1600 (63) | 1750 (68.9) |
| Table dimension (Y direction) | mm (in) | 650 (25.6) | ||
| Table loading | kg (lb) | 1000 (2205) | ||
| Spindle motor power | kW (HP) | 5.5/7.5(7.5/11) | ||
| Spindle speed | rpm | 15000, Built-in spindle | ||
| Spindle taper | BBT40 | |||
| Rapid feedrate – X axis | mm(in)/min | 36000 (1417.3) | ||
| Rapid feedrate – Y axis | mm(in)/min | 36000 (1417.3) | ||
| Rapid feedrate – Z axis | mm(in)/min | 30000 (1181.1) | ||
| Cutting federate | mm(in)/min | 1-10000 (0.04-393.7) | ||
| Capacity of tool magazine | pcs | 24T | ||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 80/150 (3.1/5.9) | ||
| Max. length of tool | mm (in) | 250(9.8) | ||
| Max. weight of tool | kg (lb) | 7(15) | ||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.005/300 (±0.0002/11.8) | ||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.012 (P≦0.0005) | ||
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | ||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.006 (Ps≦0.0002) | ||
| Length of the machine | mm (in) | 3440 (135.4) | 3920 (154.3) | 4340 (170.9) |
| Width of the machine | mm (in) | 2420 (95.3) | ||
| Height of the machine | mm (in) | 3020 (118.9) | ||
| Weight of the machine | kg (lb) | 7700 (16975) | 8100 (17857) | 8600 (18959) |
