RB Series

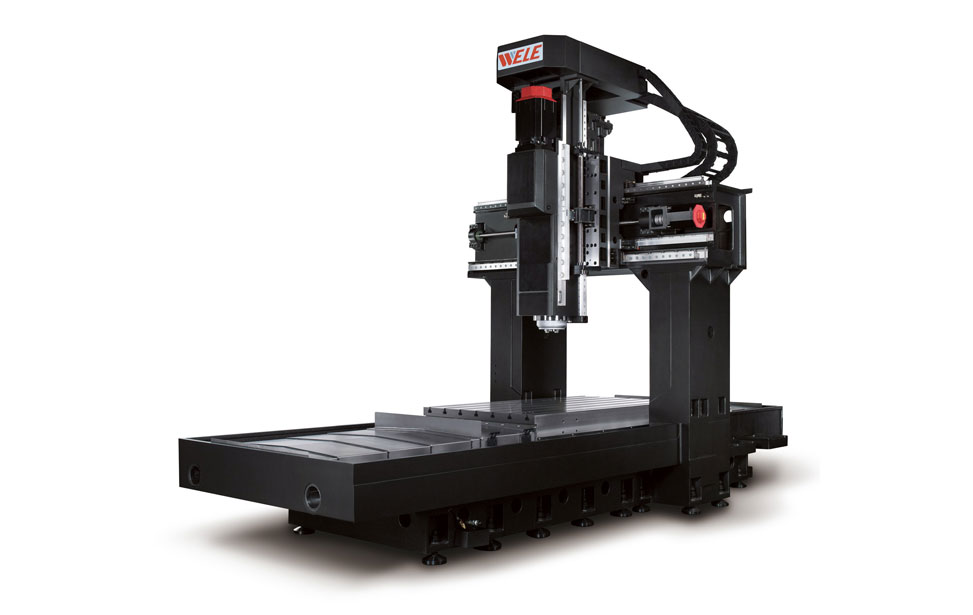

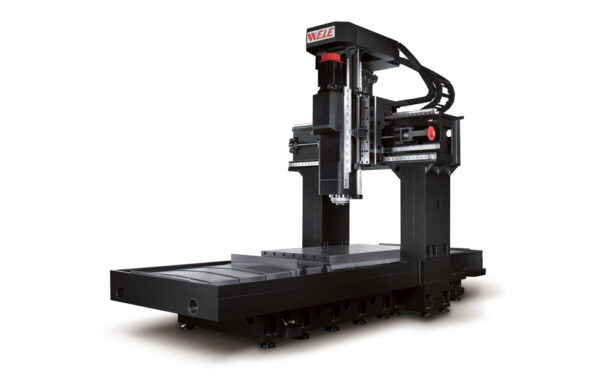

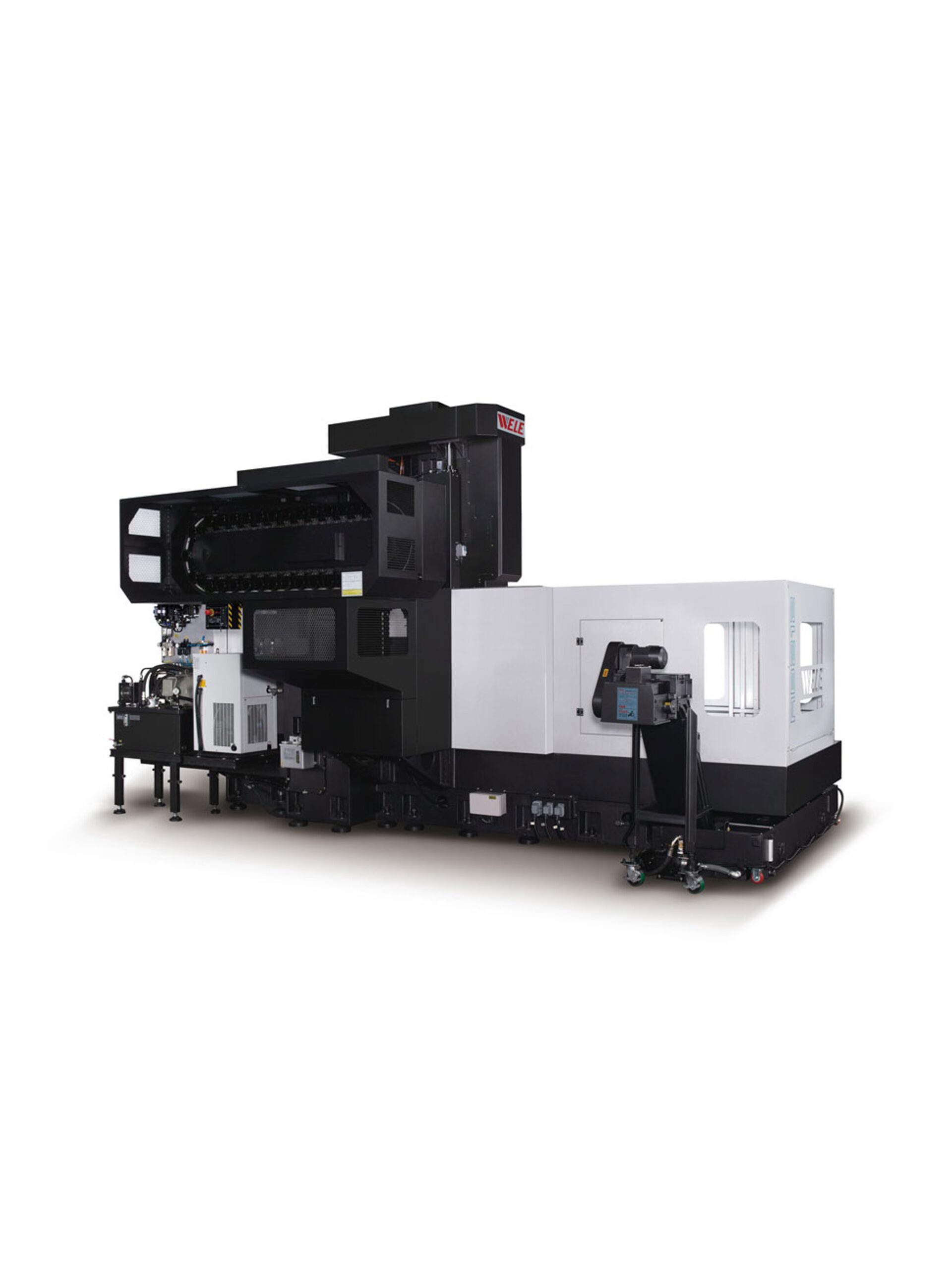

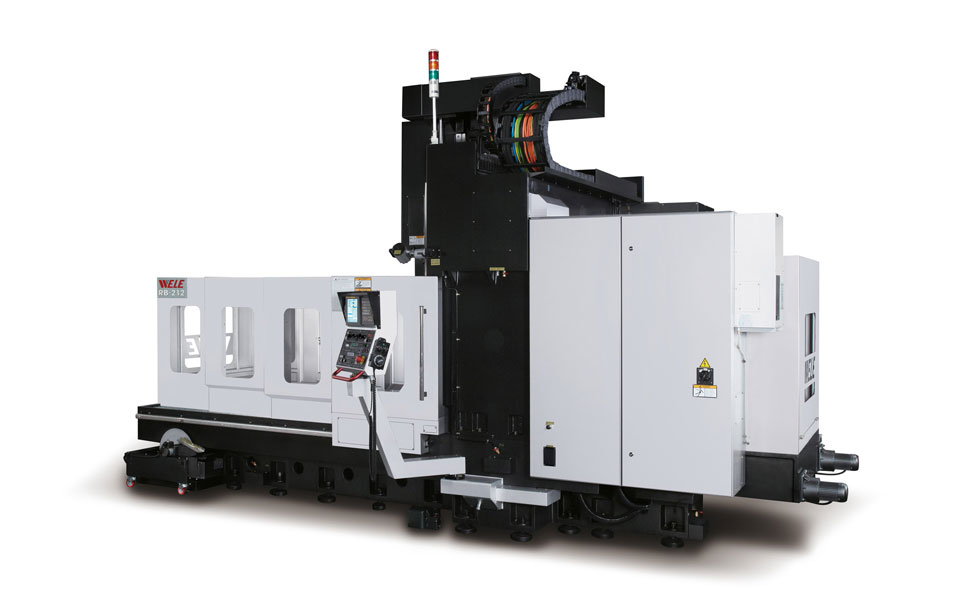

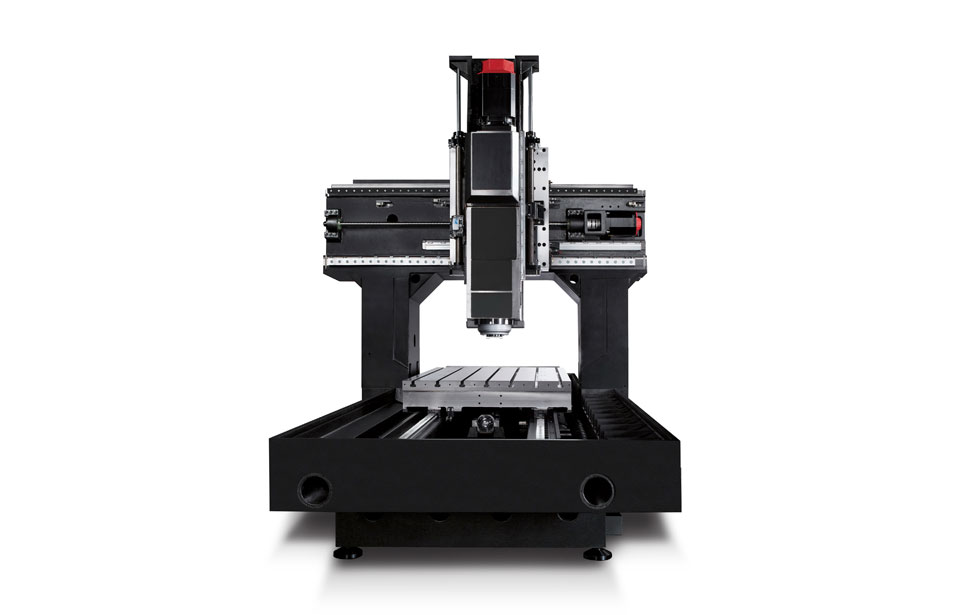

브릿지형 가공센터
• 가장 작은 브리지 범위에서도 높은 정밀도, 내구성 고성능을 위해 개발되었습니다.

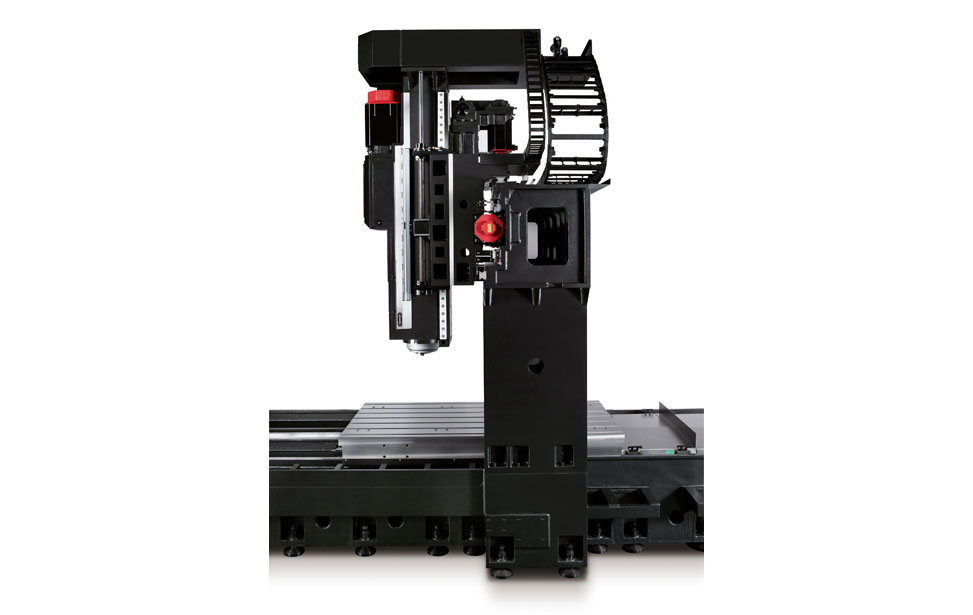

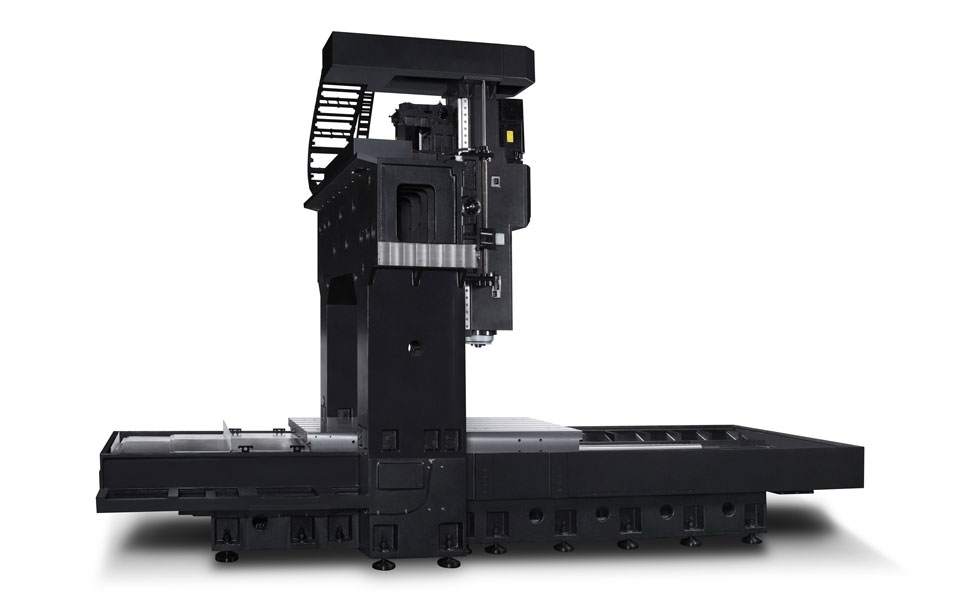

• 모든 축은 무거운 롤러 가이드웨이를 사용합니다

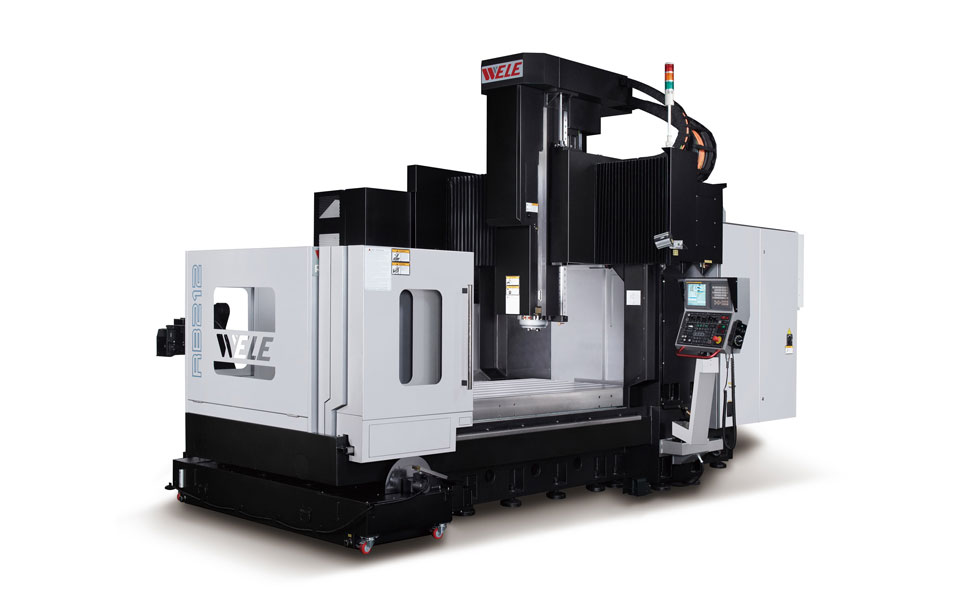

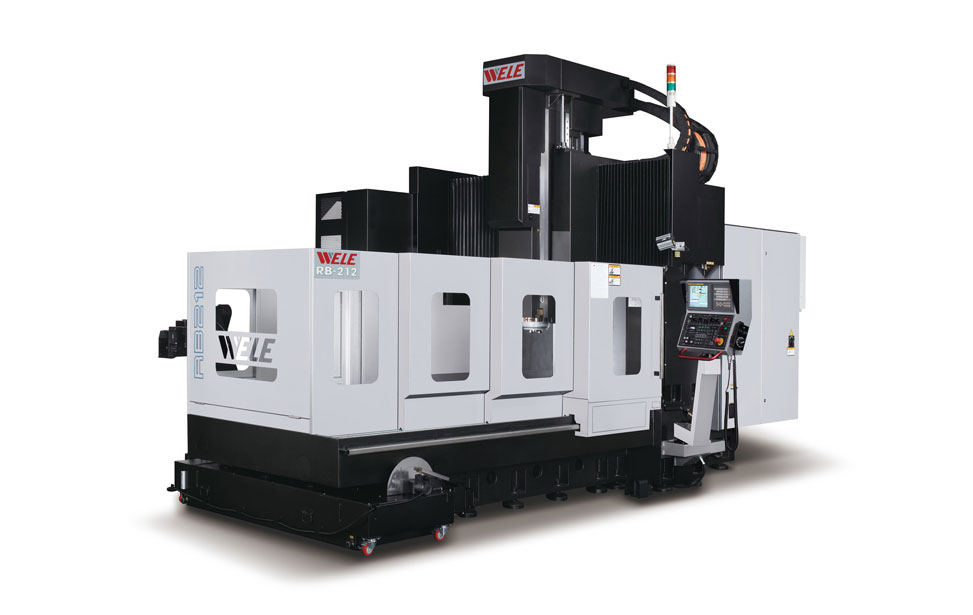

• 넓은 오퍼레이터 도어(완전 개방). 작업물을 쉽게 적재 및 하역할 수 있습니다.
• 최대 24m/분의 빠른 이동 속도
Description
R B
| Specification/ Machine model | Unit | RB-212 | RB-312 |
|---|---|---|---|
| X axis travel | mm (in) | 2120 (83.5) | 3060 (120.5) |
| Y axis travel | mm (in) | 1200 (47.2) | |
| Z axis travel | mm (in) | 800 (31.5) | |
| Distance between columns | mm (in) | 1300 (51.2) | |
| Table dimension (X direction) | mm (in) | 2000 (78.7) | 3000 (118.1) |
| Table dimension (Y direction) | mm (in) | 1100 (43.3) | 1100 (43.3) |
| Table loading | kg (lb) | 3500 | 4500 |
| Spindle motor power | kW (HP) | 15/18.5 (20/25) | |
| Spindle speed | rpm | 10-6000 | |
| Spindle taper | BT#50 (ISO 50) | ||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | |
| Rapid feedrate – Y axis | mm(in)/min | 24000 (944.9) | |
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | |
| Cutting federate | mm(in)/min | 1-15000 (0.04-590.6) | |
| Capacity of tool magazine | pcs | 32 | |
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (4.9/8.5) | |
| Max. length of tool | mm (in) | 400 (15.7) | |
| Max. weight of tool | kg (lb) | 15 (33) | |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.005/full travel(±0.002) | |
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.020 (P≦0.0008) | P≦0.025(P≦0.001) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.015(Ps≦0.0006) | Ps≦0.020(Ps≦0.0007) |
| Length of the machine | mm (in) | 5900 (232.3) | 7900 (311) |
| Width of the machine | mm (in) | 3550 (139.8) | |
| Height of the machine | mm (in) | 4050 (159.4) | |
| Weight of the machine | kg (lb) | 18000 (39683) | 23000 (50706) |
