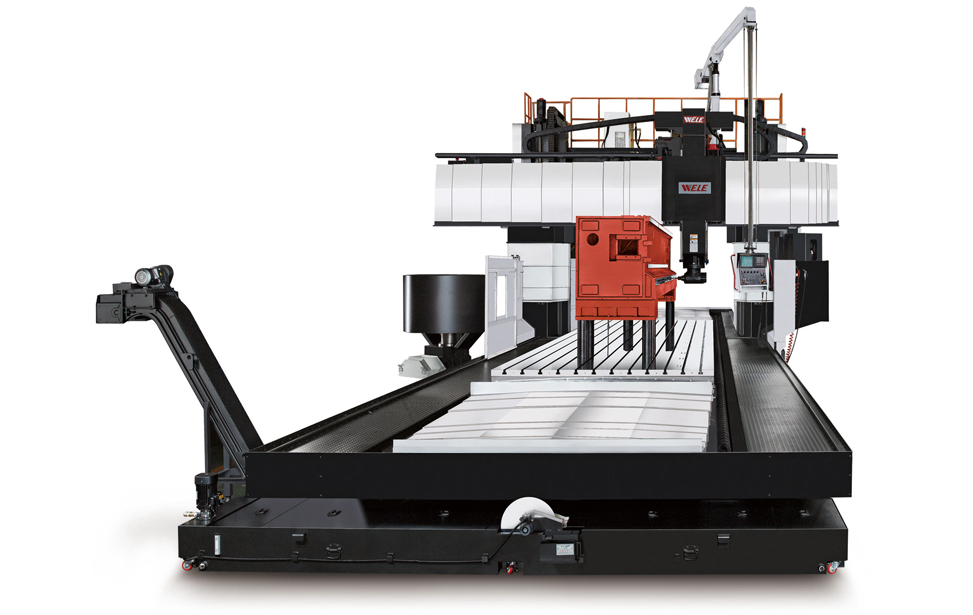

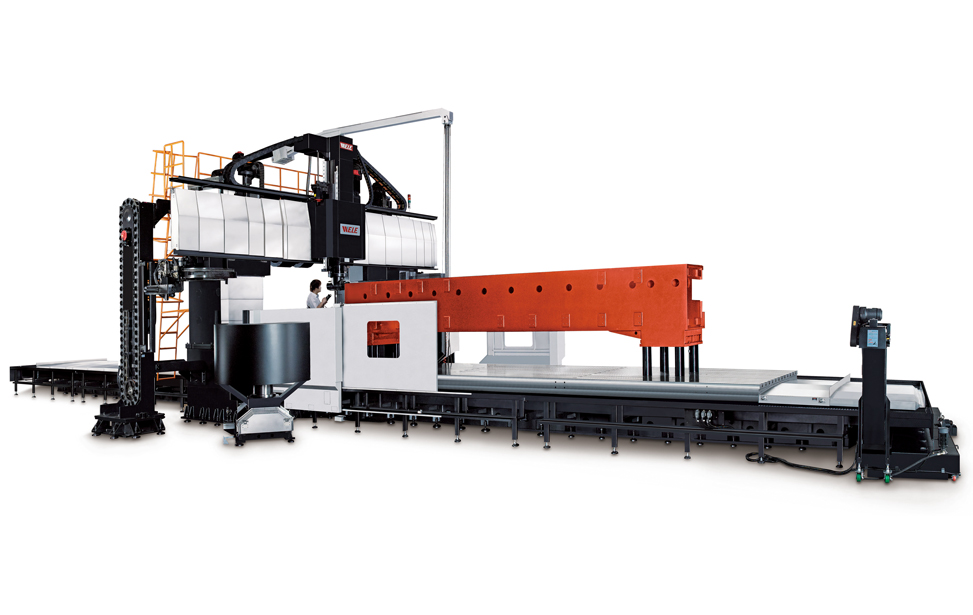

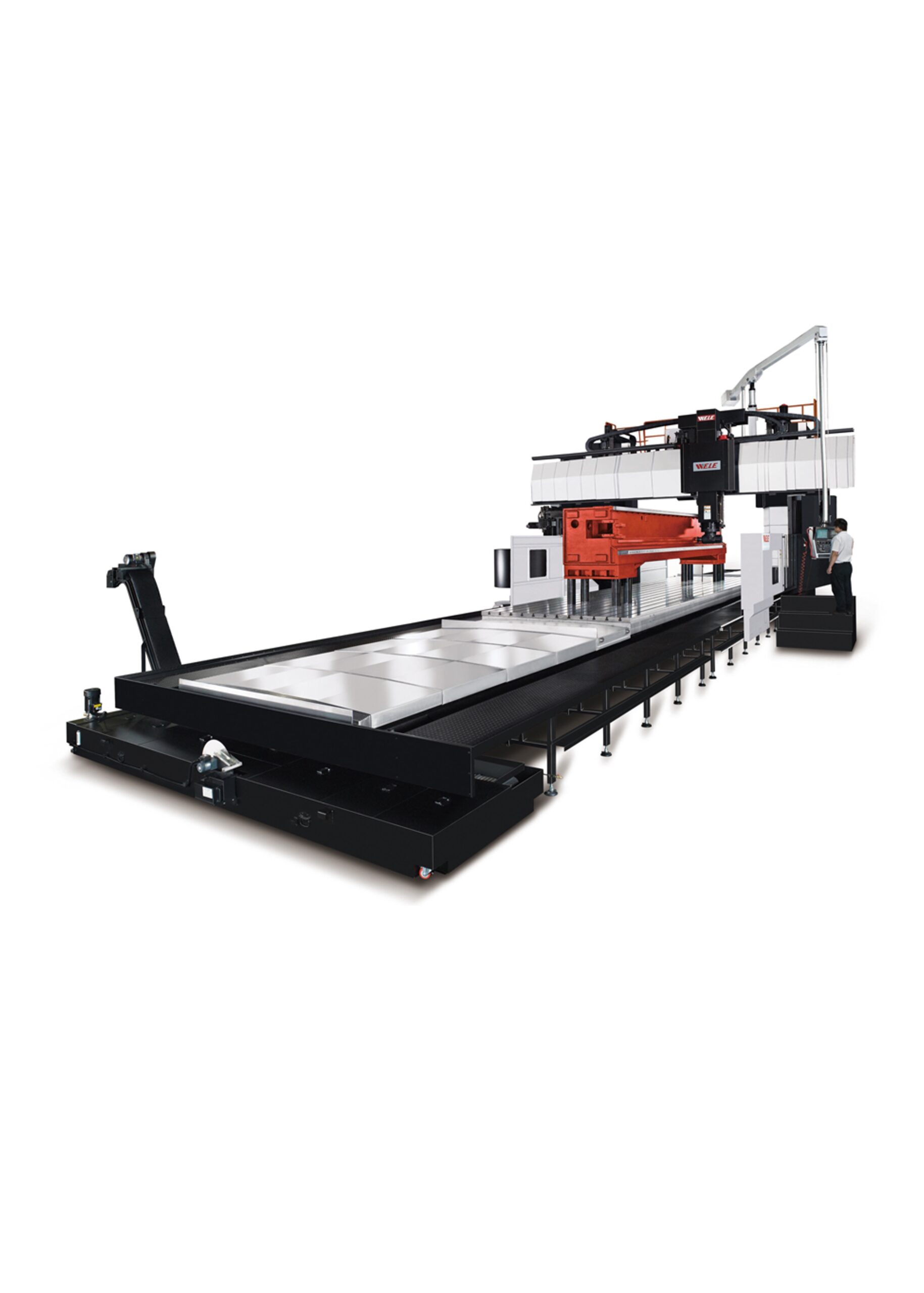

MVB Series
이동형 크로스레일형 브릿지 가공센터
- 대형 가공을 목적으로 한 특수 설계입니다.
- z 이동 거리는 1400mm(55.1인치)ㄱ까지 확장 가능 스핀들 노즈와 테이블 상판 사이 거리의 최대 높이는 2400mm(94.4인치)입니다.
- 크로스 레일과 스핀들 캐리지 조합의 오버행을 최소화하여 절삭 성능의 강성을 높였습니다.
- X 이동의 최대 길이는 10000mm(393.7인치)까지 가능합니다.
- 배송 전에 분해해야 합니다. 설치 지원은 추가비용이 들 수 있습니다.
Description
MVB-x32
MVB-x39
| Specification / Machine model | Unit | MVB-432 | MVB-532 | MVB-632 | MVB-732 |
|---|---|---|---|---|---|
| X axis travel | mm (in) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) |
| Y axis travel | mm (in) | 3200 (125.9) | |||
| Z axis travel | mm (in) | 1000 (39.3) | |||
| W axis travel | mm (in) | 1200 (47.2) | |||
| Distance between columns | mm (in) | 2600 (102.3) | |||
| Table dimension (X direction) | mm (in) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.5) |
| Table dimension (Y direction) | mm (in) | 2000 (78.7) | |||
| Table loading | kg (lb) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48502) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | |||
| Spindle speed | rpm | 10-6000 | |||
| Spindle taper | BT#50 | ||||
| Rapid feedrate – X axis | mm(in)/min | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 14000 (551.1) | |||
| Rapid feedrate – Z axis | mm(in)/min | 12000 (472.4) | |||
| Rapid feedrate – W axis | mm(in)/min | 3000 (118.1) | |||
| Cutting federate | mm(in)/min | 1-12000 (0.04-472.4) | 1-9000 (0.04-354.3) | 1-6000 (0.04-236.2) | |
| Capacity of tool magazine | pcs | 60 | |||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.46) | |||
| Max. length of tool | mm (in) | 400 (15.7) | |||
| Max. weight of tool | kg (lb) | 20 (44) | |||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | |||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.025(0.000984)/full travel | P=0.025(0.000984)/full travel | P=0.030(0.001181)/full travel | P=0.035(0.001378)/full travel |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | |||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 17250 (679.1) |
| Width of the machine | mm (in) | 8430 (331.8) | |||
| Height of the machine | mm (in) | 6750(265.7) | |||
| Weight of the machine | kg (lb) | — | |||
| Specification / Machine model | Unit | MVB-439 | MVB-539 | MVB-639 | MVB-739 | MVB-839 | MVB-1039 | |
|---|---|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) | 8060 (317.3) | 10060 (396.1) | |
| Y axis travel | mm (in) | 3900 (153.5) | ||||||
| Z axis travel | mm (in) | 1000 (39.4) | ||||||
| W axis travel | mm (in) | 1200 (47.2) | ||||||
| Distance between columns | mm (in) | 3300 (129.9) | ||||||
| Table dimension (X direction) | mm (in) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.5) | 8000 (315) | 10000 (393.7) | |
| Table dimension (Y direction) | mm (in) | 2400 (94.5) | 2500 (98.4) | |||||
| Table loading | kg (lb) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48502) | 25000 (55115) | 25000 (55116) | |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||||
| Spindle speed | rpm | 10-6000 | ||||||
| Spindle taper | BT#50 | |||||||
| Rapid feedrate – X axis | mm(in)/min | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) | 5000 (196.8) | 4000 (157.4) | |
| Rapid feedrate – Y axis | mm(in)/min | 12000 (472.4) | ||||||
| Rapid feedrate – Z axis | mm(in)/min | 12000 (472.4) | ||||||
| Rapid feedrate – W axis | mm(in)/min | 3000 (118.1) | ||||||
| Cutting federate | mm(in)/min | 1-12000 (0.04-472.4) | 1-9000 (0.04-354.3) | 1-6000 (0.04-236.2) | 1-5000 (0.04-196.8) | 1-4000 (0.04-157.4) | ||
| Capacity of tool magazine | pcs | 60 | ||||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.46) | ||||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | ||||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.025(0.000984)/full travel | P=0.025(0.000984)/full travel | P=0.030(0.001181)/full travel | P=0.035(0.001378)/full travel | P=0.035(0.001378)/full travel | P=0.045(0.001772)/full travel | |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | ||||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) | Ps=0.028(0.001102) | Ps=0.032(0.00126) | |
| Length of the machine | mm (in) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 17250 (679.1) | 20000 (787.4) | 23070 (908.2) | |
| Width of the machine | mm (in) | 9130 (359.4) | ||||||
| Height of the machine | mm (in) | 6750 (265.7) | ||||||
