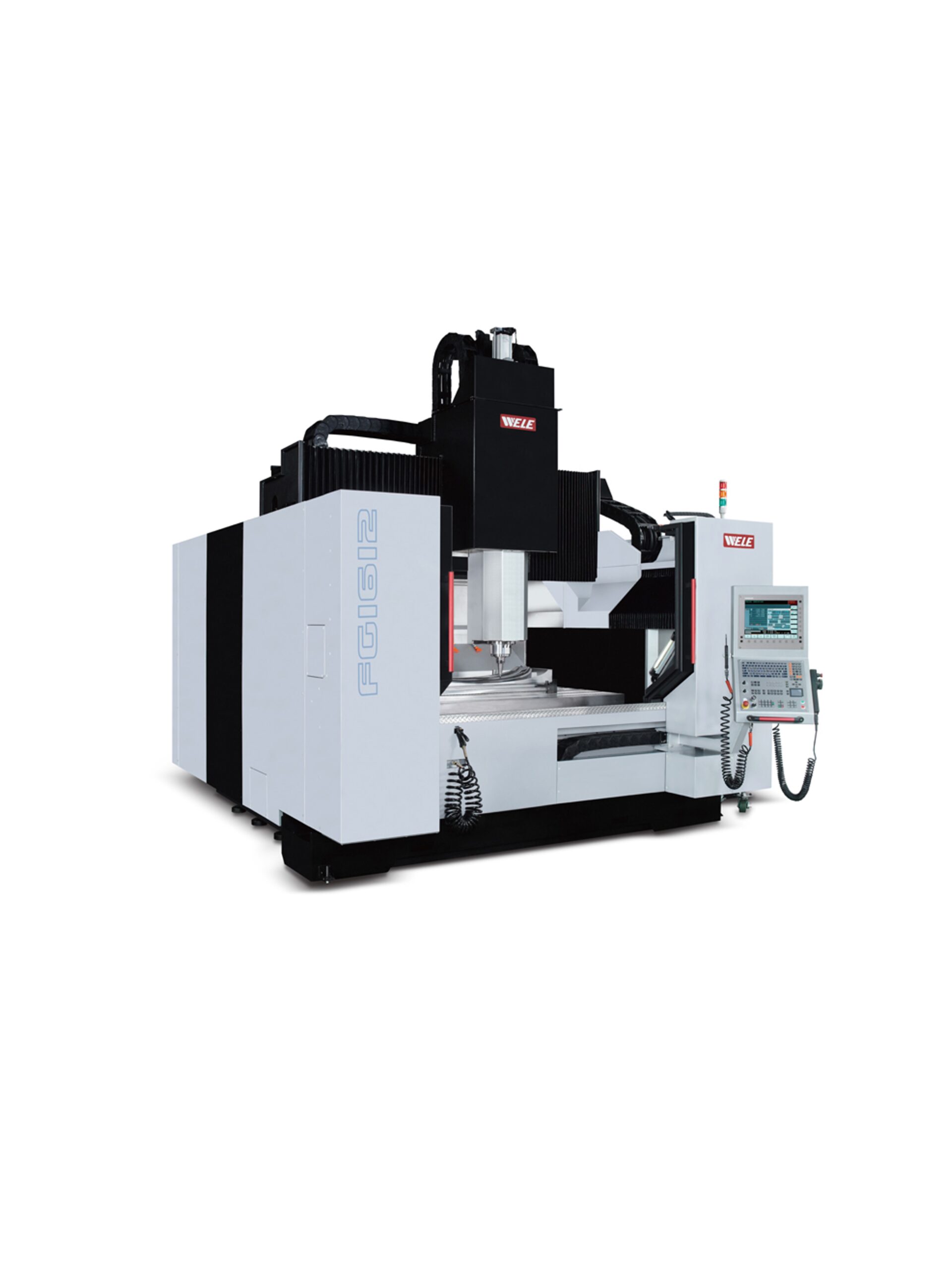

FG Series
• 이동형 갠트리형 브릿지 가공센터
Description
FG775 ~ FG2012
| Specification / Machine model | Unit | FG775 | FG1095 | FG1210 | FG1610 | FG1612 | FG2012 |
|---|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 700 (27.5) | 950 (37.4) | 1200 (47.2) | 1600 (62.9) | 1600 (62.9) | 2000 (78.7) |
| Y axis travel | mm (in) | 750 (29.5) | 1000 (39.3) | 1000 (39.3) | 1000 (39.3) | 1200 (47.2) | 1200 (47.2) |
| Z axis travel | mm (in) | 500 (19.6) | 650 (25.5) | 650 (25.5) | 650 (25.5) | 720 (28.3) | 720 (28.3) |
| Distance from spindle nose to the central line of the table | mm (in) | 100-600 (3.9-23.6) | 100-750 (3.9-29.5) | 120-700 (4.7-27.5) | 120-700 (4.7-27.5) | 120-840 (4.7-33) | 120-840 (4.7-33) |
| Table dimension (X direction) | mm (in) | 800 (31.4) | 1050 (41.3) | 1210 (47.6) | 1610 (63.3) | 1610 (63.3) | 2010 (79.1) |
| Table dimension (Y direction) | mm (in) | 750 (29.5) | 1000 (39.3) | 1000 (39.3) | 1000 (39.3) | 1200 (47.2) | 1200 (47.2) |
| Table loading | kg (lb) | 1500 (3306.9) | 2500 (5511.5) | 2500 (5511.5) | 2500 (5511.5) | 3500 (7716.1) | 3500 (7716.1) |
| Driving type | rpm | Built-in, 15000 | |||||
| Spindle outpur torque | Nm | 167 | |||||
| Spindle motor power | kW | 15/22 | |||||
| spindle taper | BBT＃40 | ||||||
| Rapid feedrate – X axis | mm(in)/min | 48 (1.88) | 30 (1.18) | 24 (0.94) | |||
| Rapid feedrate – Y axis | mm(in)/min | 48 (1.88) | 30 (1.18) | 24 (0.94) | |||
| Rapid feedrate – Z axis | mm(in)/min | 48 (1.88) | 30 (1.18) | 20(0.78) | |||
| Cutting federate | mm(in)/min | 0.001-24 (0.000039-0.944) | 0.001-20 (0.000039-0.787) | 0.001-20 (0.000039-0.787) | |||
| Capacity of tool magazine | pcs | 20 | |||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 90(3.54) / 13(0.511) | |||||
| Max. length of tool | mm (in) | 300 (11.8) | |||||
| Max. weight of tool | kg (lb) | 8 | |||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.003 (0.000118) | ±0.004 (0.000157) | ±0.005 (0.000197) | |||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | 0.01 (0.000394) | 0.012 (0.000472) | 0.015 (0.000591) | |||
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.002 (0.000079) | ±0.003 (0.000118) | ±0.003 (0.000118) | |||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | 0.005 (0.000197) | 0.006 (0.000236) | 0.008 (0.000315) | |||
| Length of the machine | mm (in) | 3730 (146.8) | 4020 (158.2) | 4140 (162.9) | 4140 (162.9) | 4620 (181.8) | 4620 (181.8) |
| Width of the machine | mm (in) | 2983 (117.4) | 3200 (125.9) | 3875 (152.5) | 4250 (167.3) | 4250 (167.3) | 4700 (185) |
| Height of the machine | mm (in) | 3102 (122.1) | 3626 (142.7) | 3630 (142.9) | 3630 (142.9) | 4105 (161.6) | 4105 (161.6) |
| Weight of the machine | kg (lb) | 10000 (22046.2) | 12500 (27557.7) | 15000 (33069.3) | 16000 (35273.9) | 18000 (39683.2) | 20000 (44092.4) |
