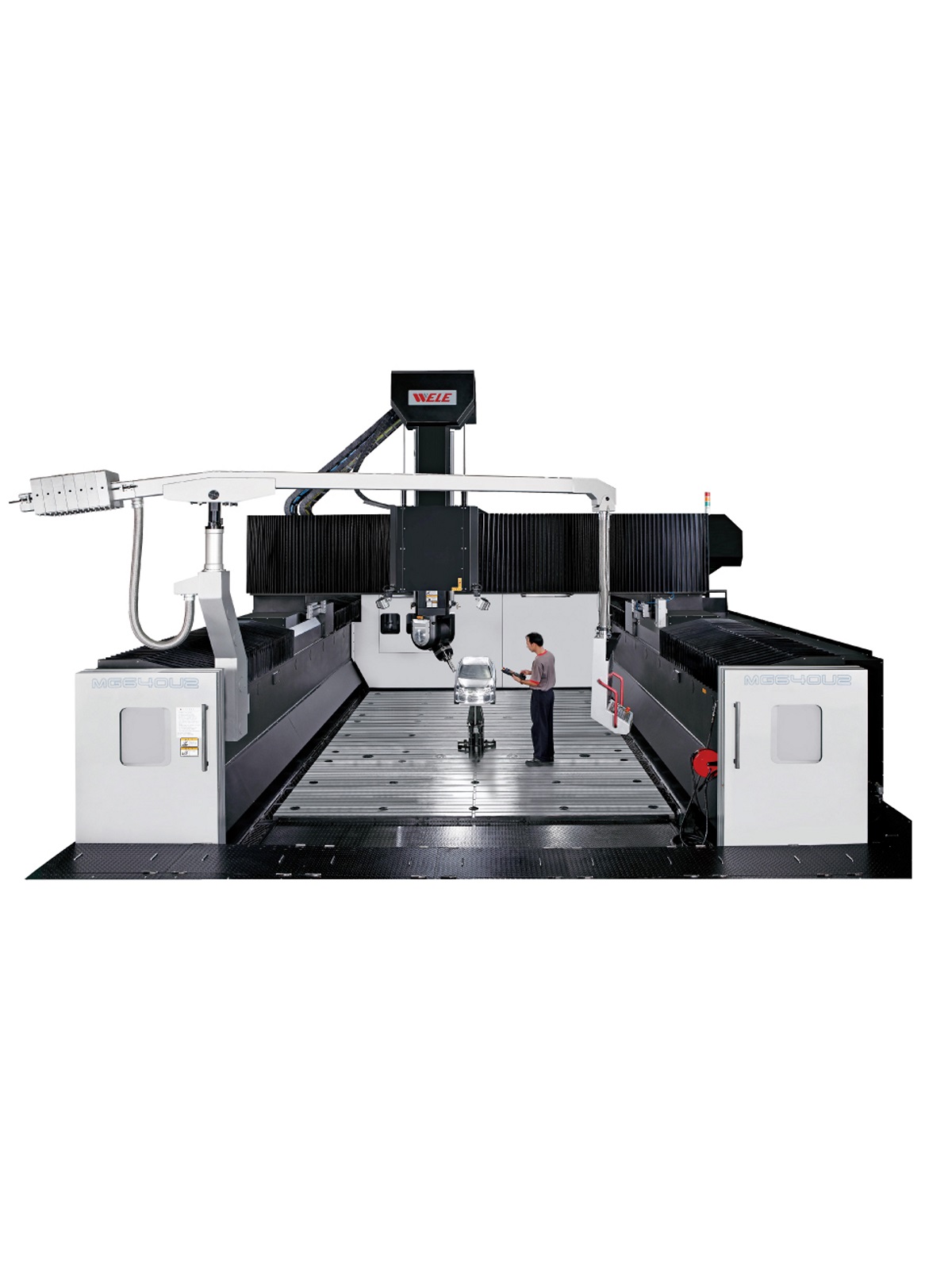

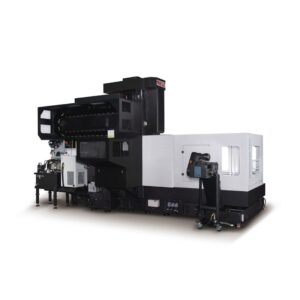

MG-U Series
Moving Gantry type 5 Axes Bridge Machining Center
- X축으로 최대 20m, Y축으로 최대 5m까지 이동 가능한 오버헤드 갠트리 브릿지 머신을 제공합니다.
- 볼스크류를 사용하여 X축 이동거리가 최대 6000mm인 이중 구동 피드 시스템; 6000mm 이상 이동이 가능한 랙 앤 피니언 구동 피드 시스템 사용 가능.

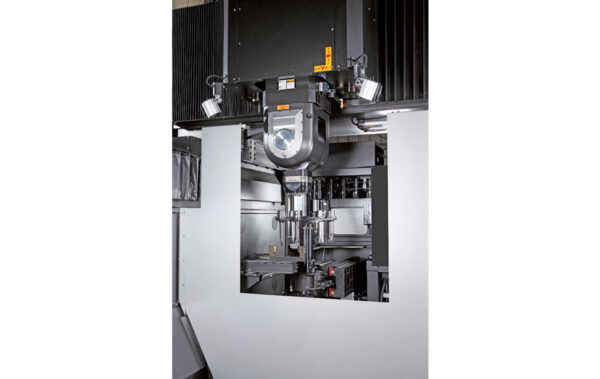

- 자동 멀티 헤드 교환 및 보관 시스템, 5축 동시 제어가 가능한 AC 틸팅 헤드는 모두 현장에서 옵션으로 제공됩니다.
- 최대 2500kg/m²의 테이블 하중이 제공됩니다.
- 고객 현장에는 특별한 기초가 필요합니다.
- 특허받은 백래시 제거 메커니즘이 X축 이동에 적용됩니다.

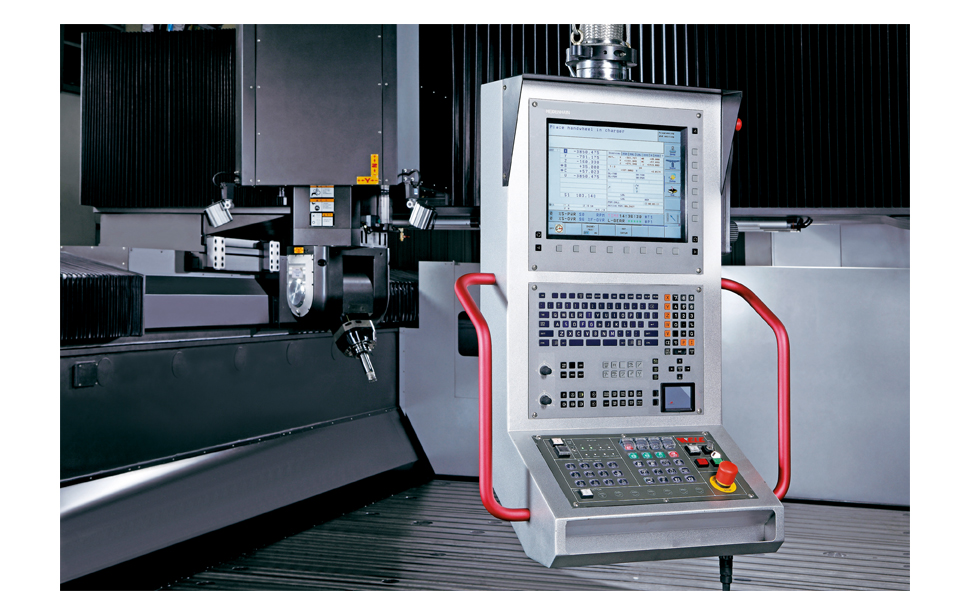

- FANUC/HENDENHAIN 컨트롤러는 독일에서 제작된 틸팅 헤드(MG-U 시리즈)로 제공됩니다.
Description
MG-x50U
MG-x40U
MG-x30U
| Specification / Machine model | Unit | MG-650U | MG-850U | MG-1050U |
|---|---|---|---|---|
| X axis travel | mm (in) | 6000 (236) | 8000 (314) | 10000 (393) |
| Y axis travel | mm (in) | 5000 (196.9) | ||
| Z axis travel | mm (in) | 1000 (39.4) | ||
| B axis travel | degree | +-110 | ||
| C axis travel | degree | +-360 | ||
| Table dimension (X direction) | mm (in) | 6000 (236) | 8000 (314) | 10000 (393) |
| Table dimension (Y direction) | mm (in) | 4800 (189) | ||
| Table loading | kg (lb) | 2500 (5512) | ||
| Spindle motor power | kW (HP) | 34(45.6) | ||
| Spindle speed | rpm | 10-12000 | ||
| Spindle taper | HSK-A100 | |||
| Rapid feedrate – X axis | mm(in)/min | 20000 (787) | ||
| Rapid feedrate – Y axis | mm(in)/min | 12000 (472) | ||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393) | ||
| Cutting federate | mm(in)/min | 1-10000 (393) | ||
| Capacity of tool magazine | pcs | 32 | ||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5/8.4) | ||
| Max. length of tool | mm (in) | 400 (15) | ||
| Max. weight of tool | kg (lb) | 20 (44) | ||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.025(0.0009)/full travel | ||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.030(0.0011) | P≦0.035 (0.0013) | P≦0.045 (0.0017) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.010(0.0003) | ||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.025(0.0009) | Ps≦0.028(0.0011) | Ps≦0.032(0.0012) |
| Length of the machine | mm (in) | 12275 (483.3) | 14275 (562) | 16275 (640.7) |
| Width of the machine | mm (in) | 8560 (337) | ||
| Height of the machine | mm (in) | 4200 (165.4) | ||
| Weight of the machine | kg (lb) | 104000 (229281) | 126000 (277782) | 148000 (326284) |
| Specification / Machine model | Unit | MG-540U | MG-640U | MG-840U | MG-1040U |
|---|---|---|---|---|---|
| X axis travel | mm (in) | 5000 (196) | 6000 (236) | 8000 (314) | 10000 (393) |
| Y axis travel | mm (in) | 4000 (157.5) | |||
| Z axis travel | mm (in) | 1000 (39.4) | |||
| B axis travel | degree | +-110 | |||
| C axis travel | degree | +-360 | |||
| Table dimension (X direction) | mm (in) | 5000 (196) | 6000 (236) | 8000 (314) | 10000 (393) |
| Table dimension (Y direction) | mm (in) | 3800 (149.6) | |||
| Table loading | kg (lb) | 2500 (5512) | |||
| Spindle motor power | kW (HP) | 34(45.6) | |||
| Spindle speed | rpm | 10-12000 | |||
| Spindle taper | HSK-A100 | ||||
| Rapid feedrate – X axis | mm(in)/min | 10000(393) | 20000 (787) | ||
| Rapid feedrate – Y axis | mm(in)/min | 15000 (590) | |||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393) | |||
| Cutting federate | mm(in)/min | 1-10000 (393) | |||
| Capacity of tool magazine | pcs | 32 | |||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5/8.4) | |||
| Max. length of tool | mm (in) | 400 (15) | |||
| Max. weight of tool | kg (lb) | 20 (44) | |||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.025(0.0009)/full travel | |||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.025 (0.0009) | P≦0.030 (0.0011) | P≦0.035 (0.0013) | P≦0.045 (0.0017) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.010(0.0003) | |||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.020(0.0007) | Ps≦0.025(0.0009) | Ps≦0.028(0.0011) | Ps≦0.032(0.0012) |
| Length of the machine | mm (in) | 10710 (421.7) | 12275 (483.3) | 14275 (562) | 16275 (640.7) |
| Width of the machine | mm (in) | 7560 (297.6) | |||
| Height of the machine | mm (in) | 4200 (165.4) | |||
| Weight of the machine | kg (lb) | 76000 (167551) | 96000 (211644) | 117000 (257941) | 140000 (308647) |
| Specification / Machine model | Unit | MG-530U | MG-630U | MG-830U | MG-1030U |
|---|---|---|---|---|---|
| X axis travel | mm (in) | 5000 (196) | 6000 (236) | 8000 (314) | 10000 (393) |
| Y axis travel | mm (in) | 3000 (118.1) | |||
| Z axis travel | mm (in) | 1000 (39.4) | |||
| B axis travel | degree | +-110 | |||
| C axis travel | degree | +-360 | |||
| Table dimension (X direction) | mm (in) | 5000 (196.9) | 6000 (236.2) | 8000 (315) | 10000 (393.7) |
| Table dimension (Y direction) | mm (in) | 2800 (110.2) | |||
| Table loading | kg (lb) | 2500 (5512) | |||
| Spindle motor power | kW (HP) | 34(45.6) | |||
| Spindle speed | rpm | 10-12000 | |||
| Spindle taper | HSK-A100 | ||||
| Rapid feedrate – X axis | mm(in)/min | 10000(393) | 20000 (787) | ||
| Rapid feedrate – Y axis | mm(in)/min | 15000 (590) | |||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393) | |||
| Cutting federate | mm(in)/min | 1-10000 (393) | |||
| Capacity of tool magazine | pcs | 32 | |||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5/8.4) | |||
| Max. length of tool | mm (in) | 400 (15) | |||
| Max. weight of tool | kg (lb) | 20 (44) | |||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.025(0.0009)/full travel | |||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.025 (0.0009) | P≦0.030 (0.0011) | P≦0.035 (0.0013) | P≦0.045 (0.0017) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.010(0.0003) | |||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.020(0.0007) | Ps≦0.025(0.0009) | Ps≦0.028(0.0011) | Ps≦0.032(0.0012) |
| Length of the machine | mm (in) | 10710 (421.7) | 12275 (483.3) | 14275 (562) | 16275 (640.7) |
| Width of the machine | mm (in) | 6560 (258.3) | |||
| Height of the machine | mm (in) | 4200 (165.4) | |||
| Weight of the machine | kg (lb) | 67000 (147710) | 79000 (174165) | 103000 (227076) | 127000 (279987) |
