UQ Series
4+1 Axis Machining Center

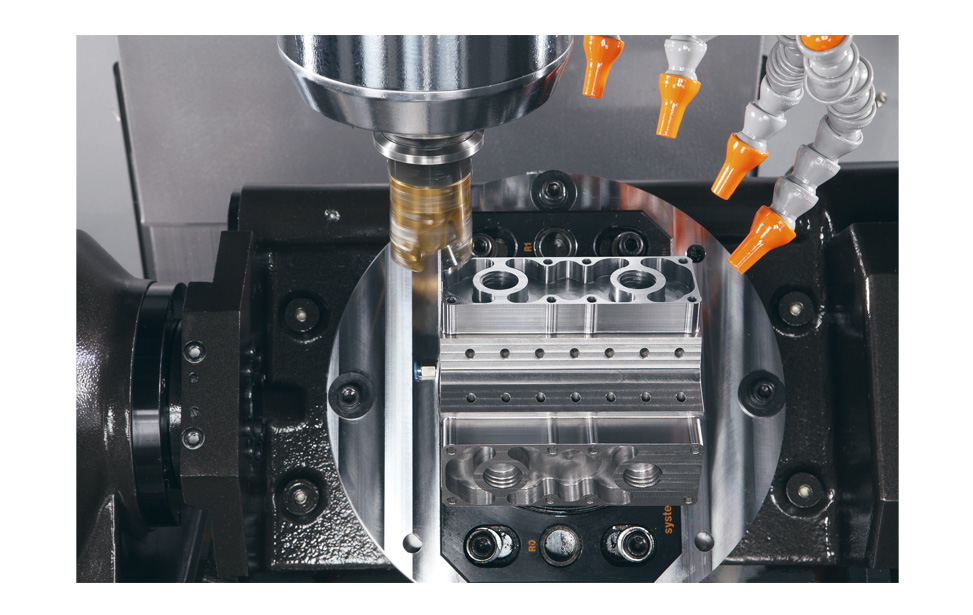

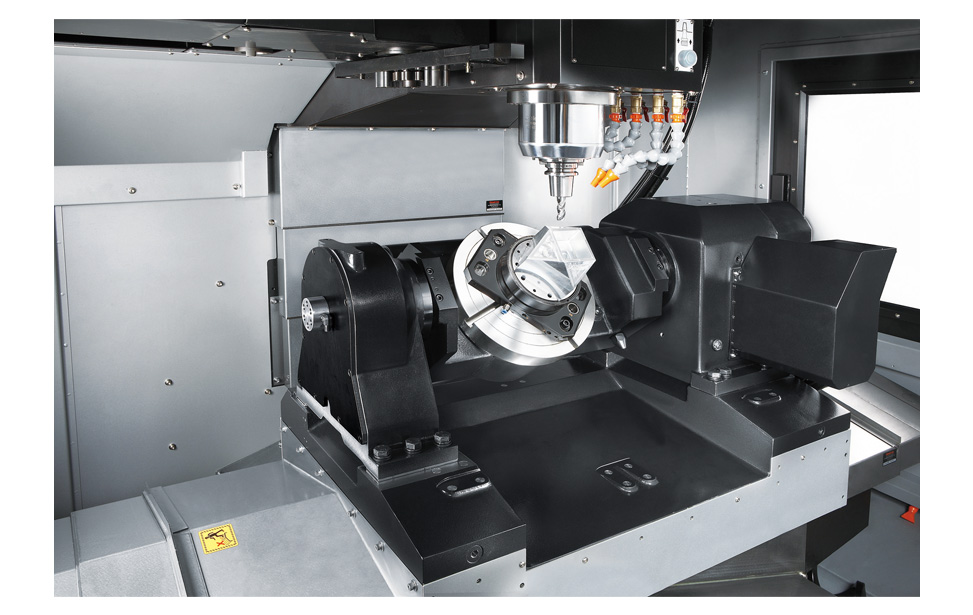

● WELE 자체 설계 트러니언 테이블을 사용하여 백래시 없는 메커니즘을 갖춰 고정밀성을 제공합니다.

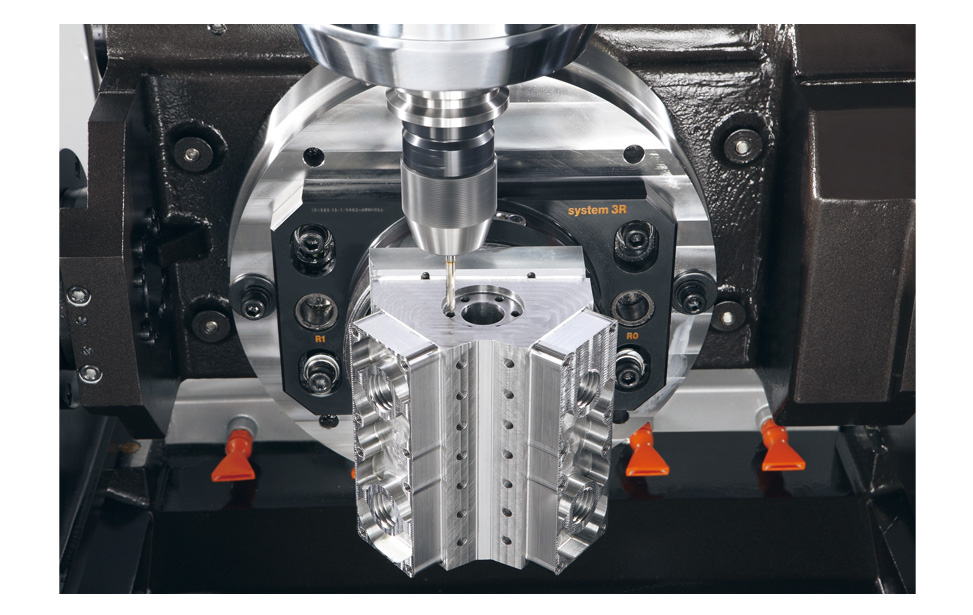

● 4+1축 가공 목적.
Description

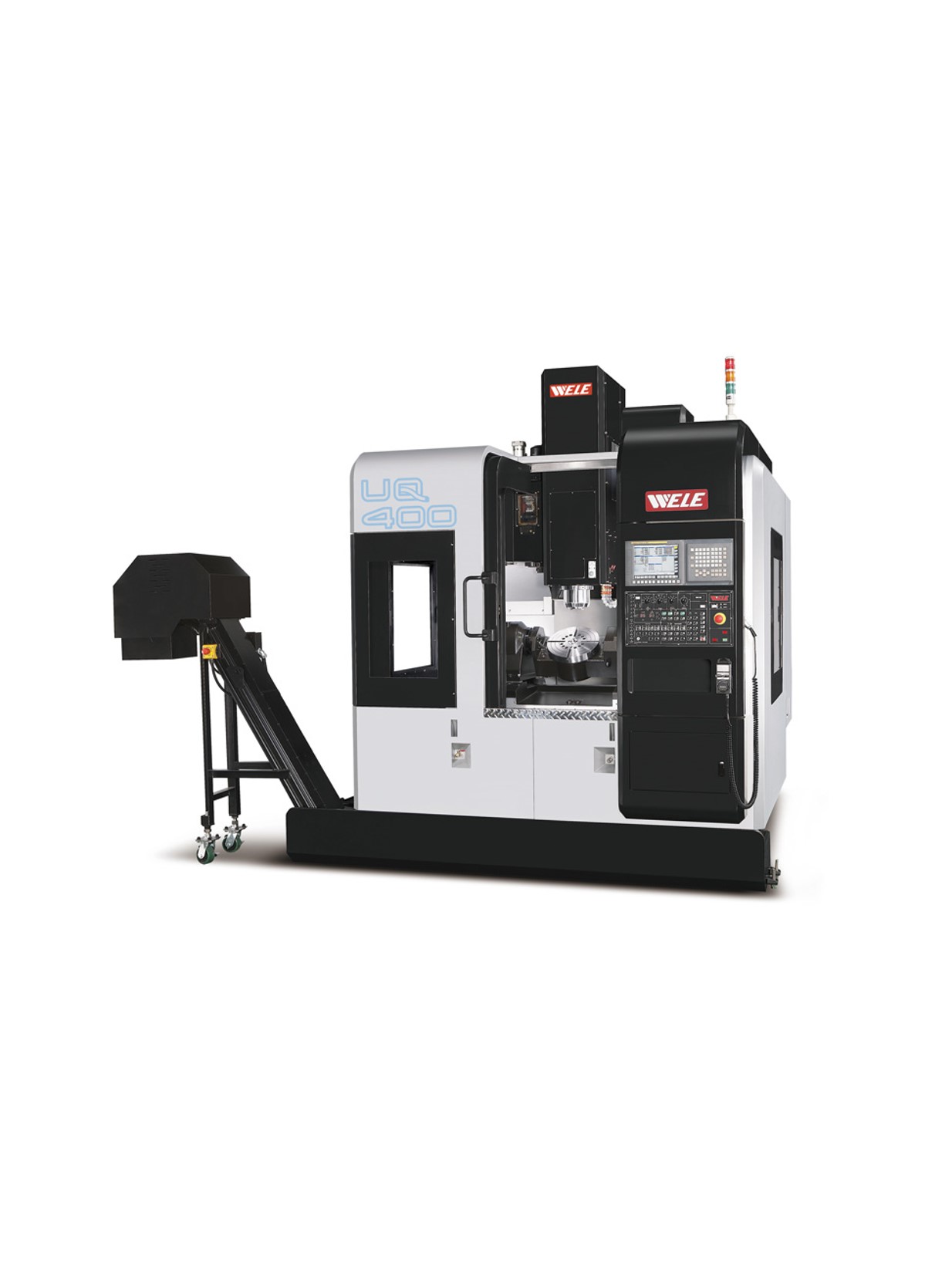

UQ-400
| Specification | Unit | UQ-400 |
|---|---|---|
| Table size | mm (in) | ø 320 |
| Max. workpiece size (DxH) | mm (in) | ø 400 x 300 |
| Max. weight on table | kg | 200 |
| T-slot size (width x angle) | 12 X 90 | |
| X / Y / Z stroke | mm (in) | 400 / 650 / 485 |
| Distance from Spindle nose to table top | mm (in) | 0~485 |
| A axis (tilt) | degree | -0.25 |
| C axis (rotation) | degree | 360 |
| Spindle speed | Direct drive 12,000rpm | |
| Spindle taper | BT40 (BBT40) | |
| Spindle motor power (conti / 30min) | KW(HP) | 11 / 15 (15 / 20) |
| Spindle Max. torque (conti / 30min) | Nm | 70 / 95 |
| Rapid feedrate in X / Y / Z | m/min | 36 / 36 / 24 |
| Cutting feedrate in X / Y / Z | m/min | 10 |
| Rapid feedrate in A/C | rpm | 20 / 27 |
| Tool magazine capacity | pcs | 24 |
| Max. tool diameter (full / adjacent empty) | mm (in) | ø 80 (ø125) |
| Max. tool length | mm (in) | 300 |
| Max. tool weight | kg (lb) | 8 |
| Depth x width | mm (in) | 2,950 x 2,350 |
| Height | mm (in) | 3,140 |
| Weight | kg (lb) | 6500 |
