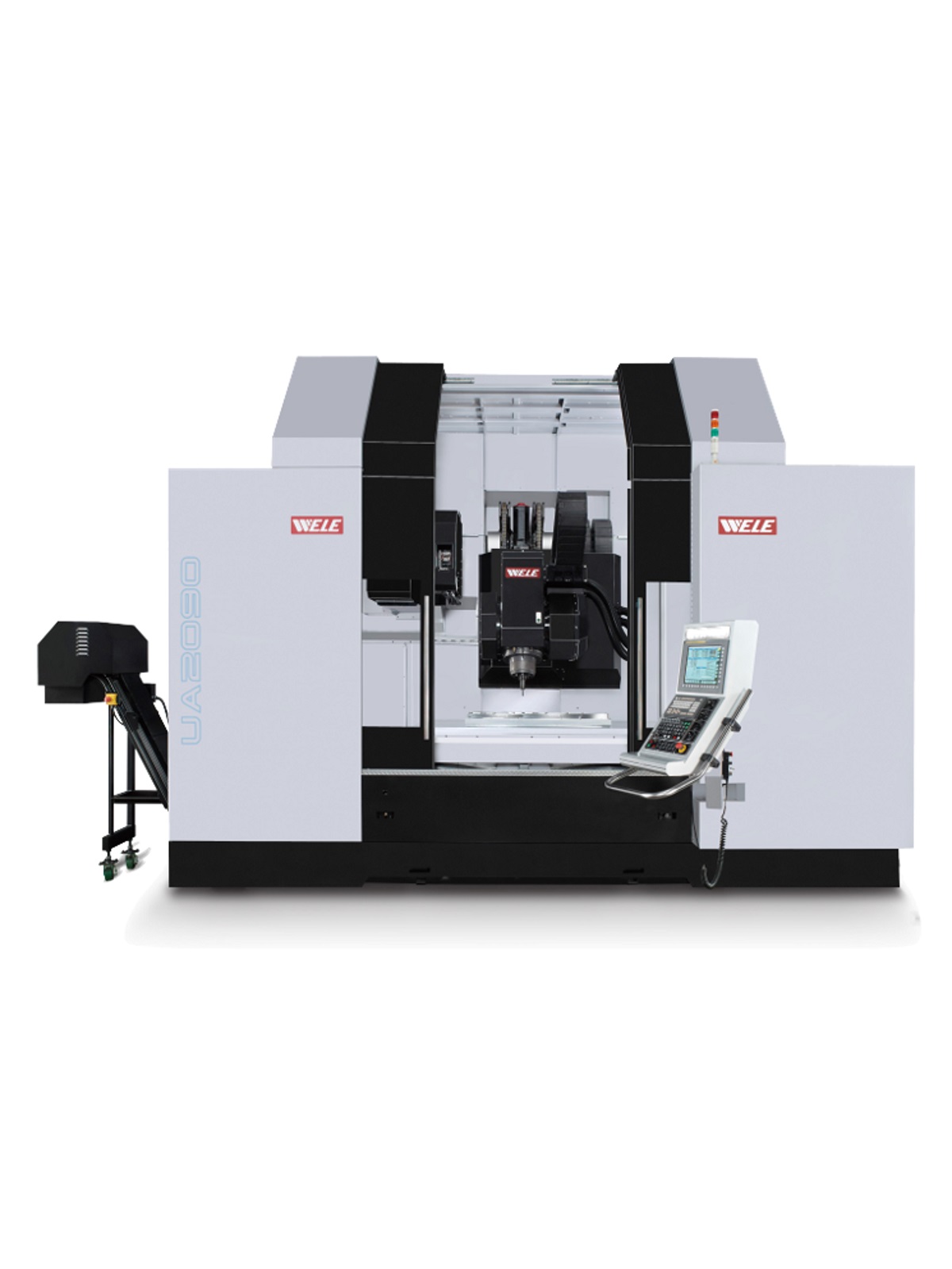

UA Series
5 Axes Machining Center (with Universal head)
- 항공우주 부품 가공을 위한 5축 동시 적용 작업을 위한 견고한 설계입니다.

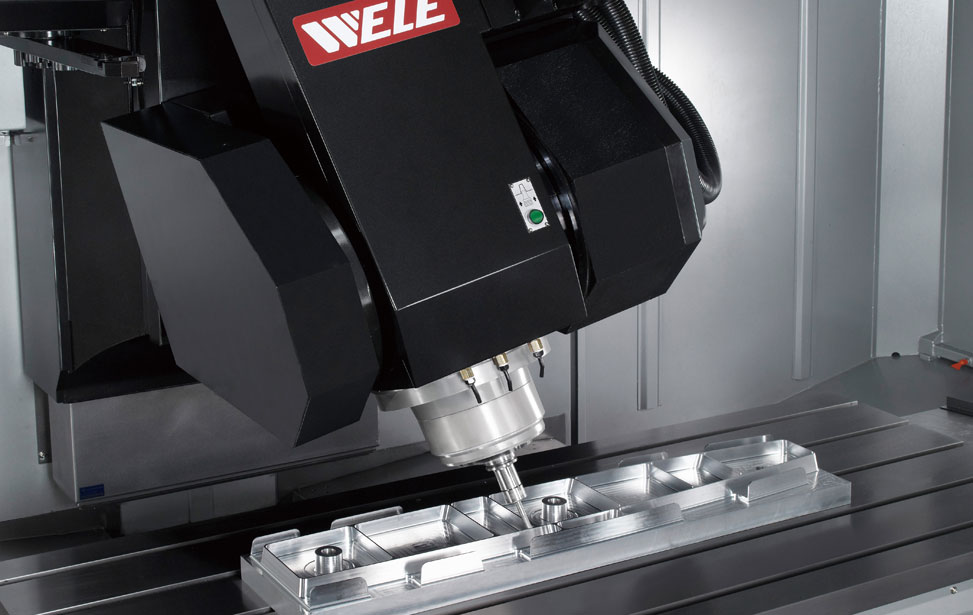

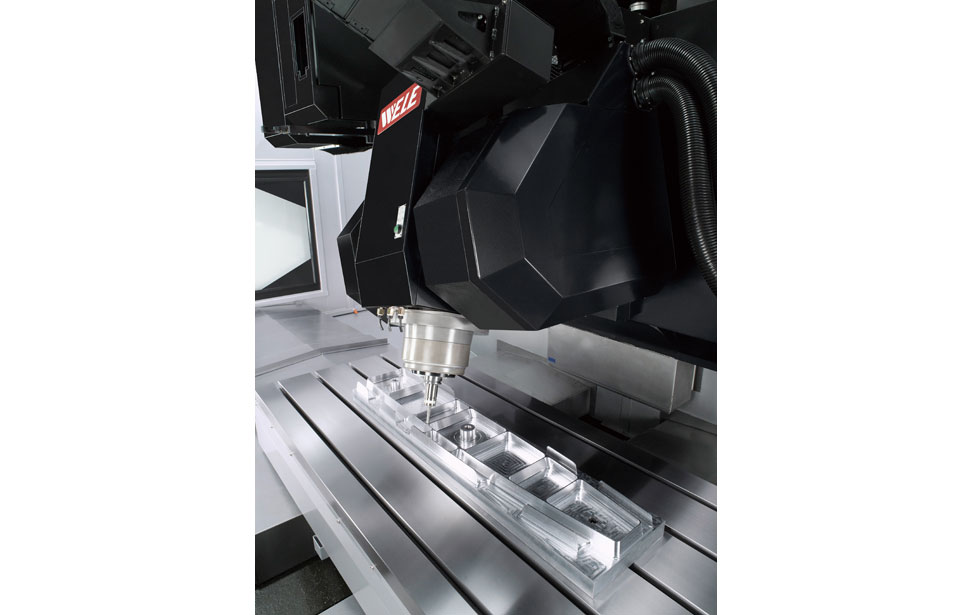

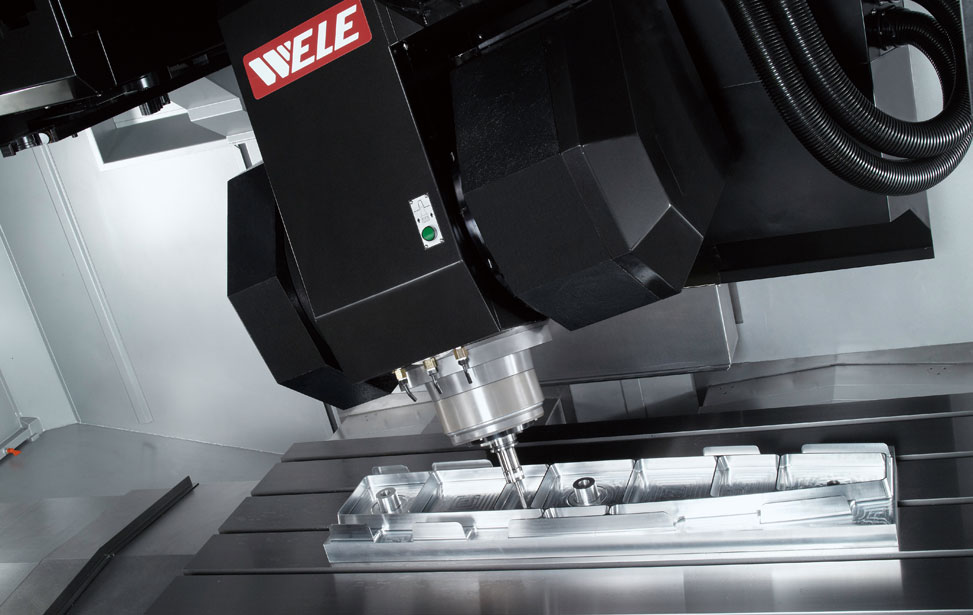

- A축에서는 최대 토크가 4950Nm/3650ft-lb, B축에서는 최대 토크가 7960Nm/5870ft-lb인 AB 틸팅 헤드의 고강성 설계.
- Y축의 이중 구동 피드 시스템은 강력한 이동 성능을 제공합니다.
Description
UA-2090 / UA-2590
| Specification / Machine model | Unit | UA-2090 | UA-2590 |
|---|---|---|---|
| X travel (left & right) | mm (in) | 2000 (78.7) | 2500 (98.4) |
| Y travel (in & out) | mm (in) | 900 (35.4) | |
| Z travel (up & down) | mm (in) | 700 (27.5) | |
| Distance between table and vertical spindle nose | mm (in) | 80-780 (3.14-30.7) | |
| Swiveling range of the A axis | degree | ±30 (BBT50) , ±40 (BBT40) | |
| Rotating range of the B axis | degree | ±30 (BBT50) , ±40 (BBT40) | |
| Table size ( X direction) | mm (in) | 2150 (84.6) | 2650 (104.3) |
| Table size ( Y direction) | mm (in) | 900 (35.4) | |
| Table load capacity | kg (lb) | 2200 (4850) | 3000 (6614) |
| Spindle speed | rpm | Builtin driven/12000 | |
| Spindle motor (cont./30 min. rating) | kW (HP) | 24/30 (33/40) | |
| Spindle taper | BBT#50 | ||
| Rapid feedrate (X & Y axis) | mm(in)/min | 20,000 (787.4) | |
| Rapid feedrate (Z axis) | mm(in)/min | 18,000 (708.7) | |
| Cutting feedrate | mm(in)/min | 1-10,000 (393.7) | |
| Tool magazine capacity | pcs | 30 | |
| Max. tool diameter / Adjacent pocket empty | mm (in) | 125/ 200 (4.9/7.8) | |
| Max. tool length | mm (in) | 300 (11.8) | |
| Max. tool weight | kg (lb) | 15(33) | |
| Positioning accuracy (JIS standard) | mm (in) | ±0.015/1000 (±0.0006/39.4) | |
| Repeatability accuracy (JIS standard) | mm (in) | ±0.005/300 (±0.0002/11.8) | |
| Indexing axial positioning accuracy | arc sec | ±15″ (A axis) / ±30″ (B axis) | |
| Indexing axial repeatability | arc sec | ±10″ (A axis) / ±15″ (B axis) | |
| Machine length | mm (in) | 5,300 (208.7) | 6,000 (236.2) |
| Machine width | mm (in) | 3,300 (129.9) | |
| Machine height | mm (in) | 4,000 (157.4) | |
| Machine weight | kg (lb) | 23,000 (50,600) | 25,000 (55,000) |
