LB Series

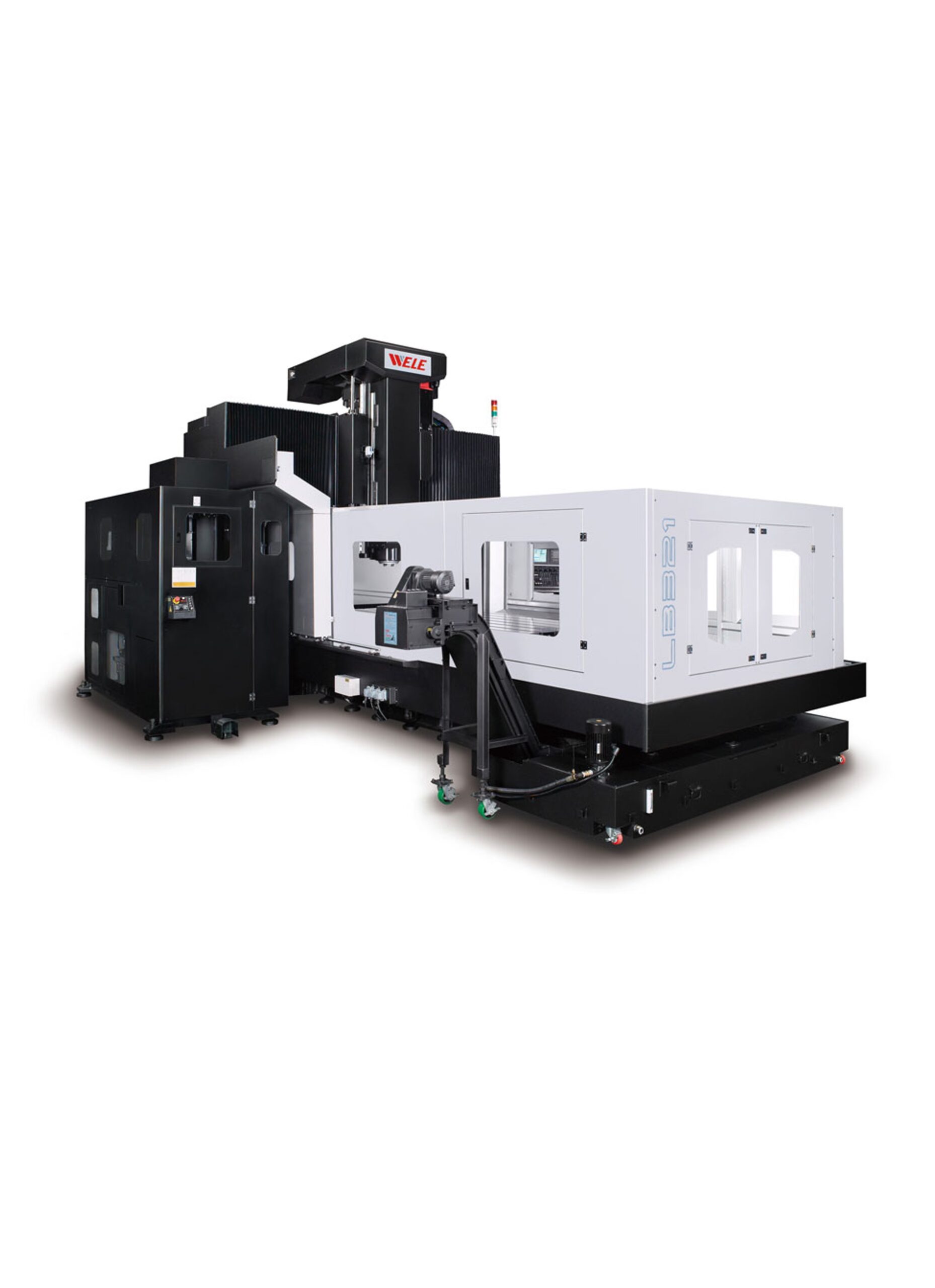

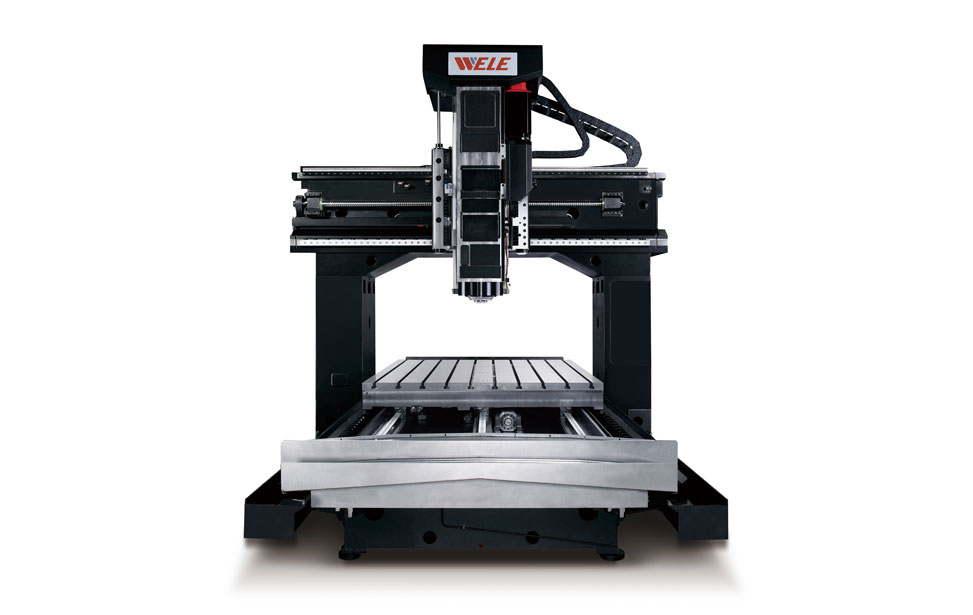

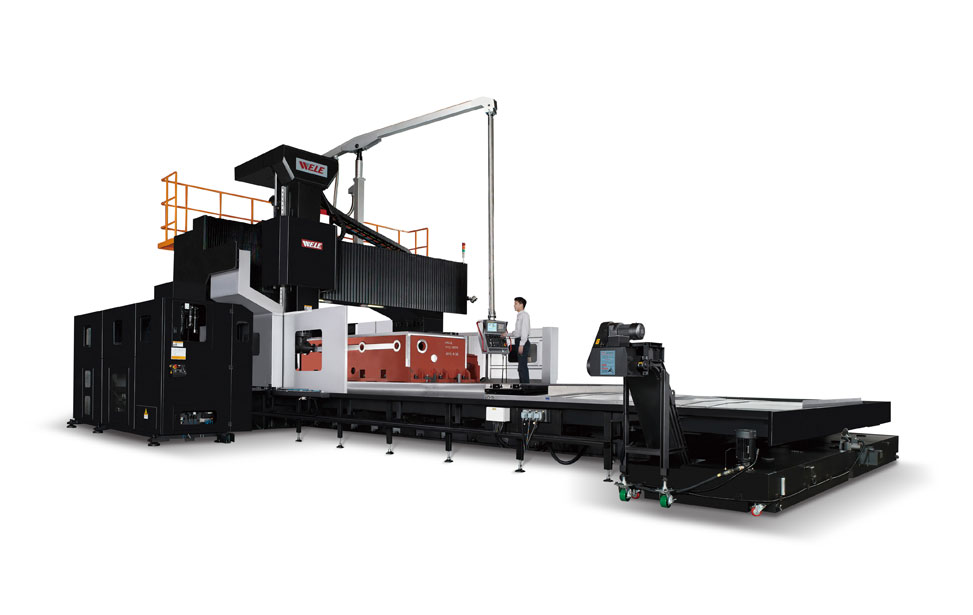

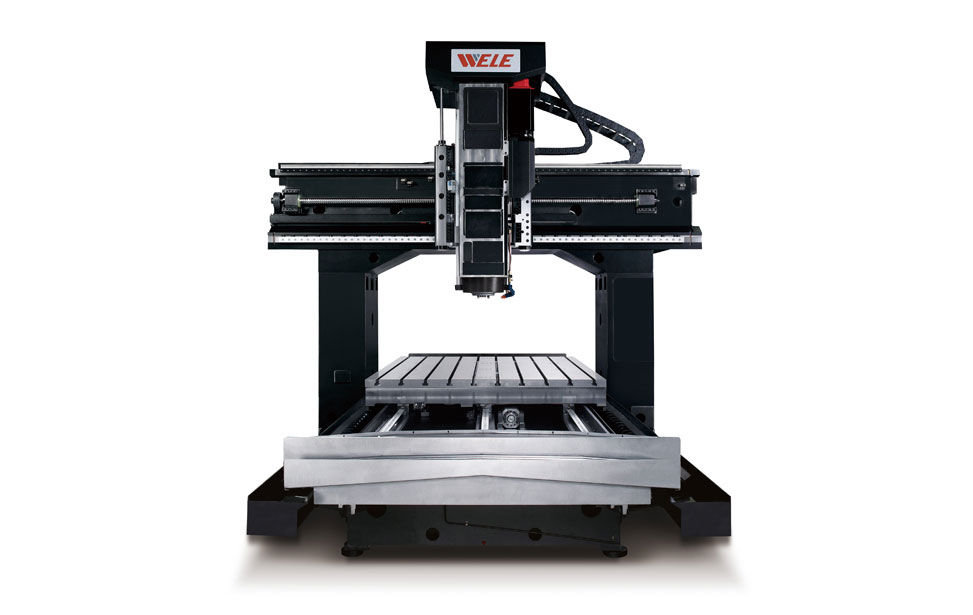

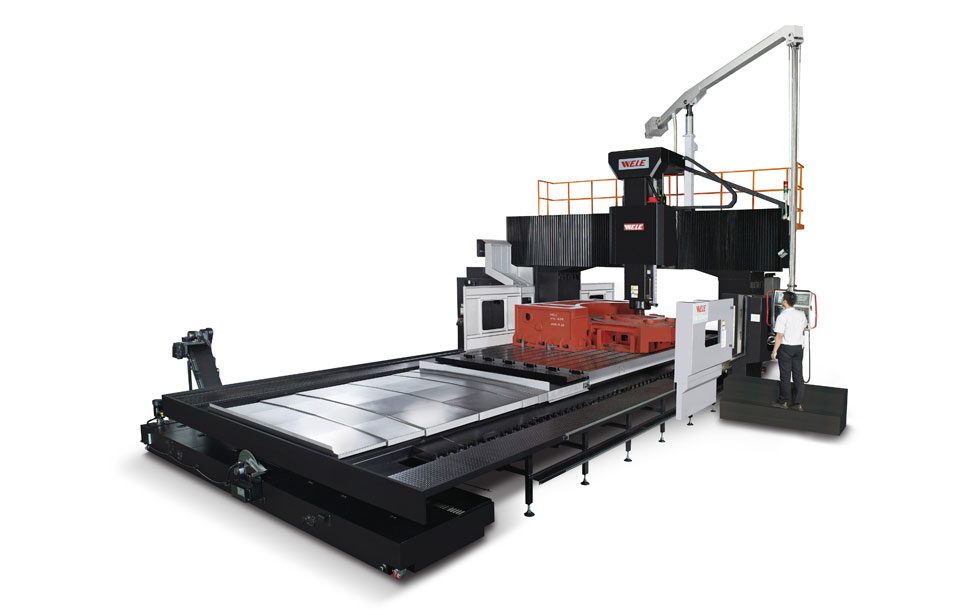

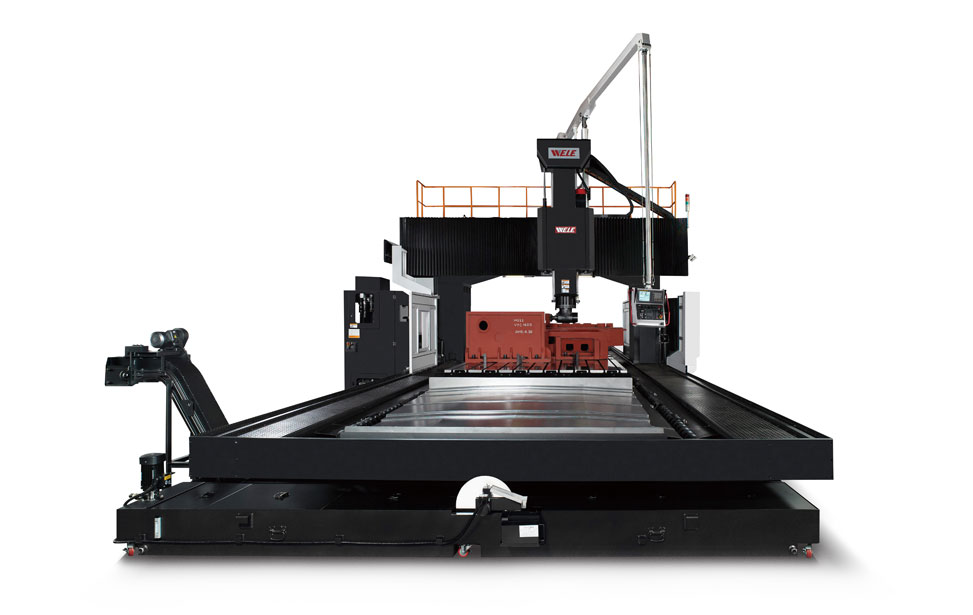

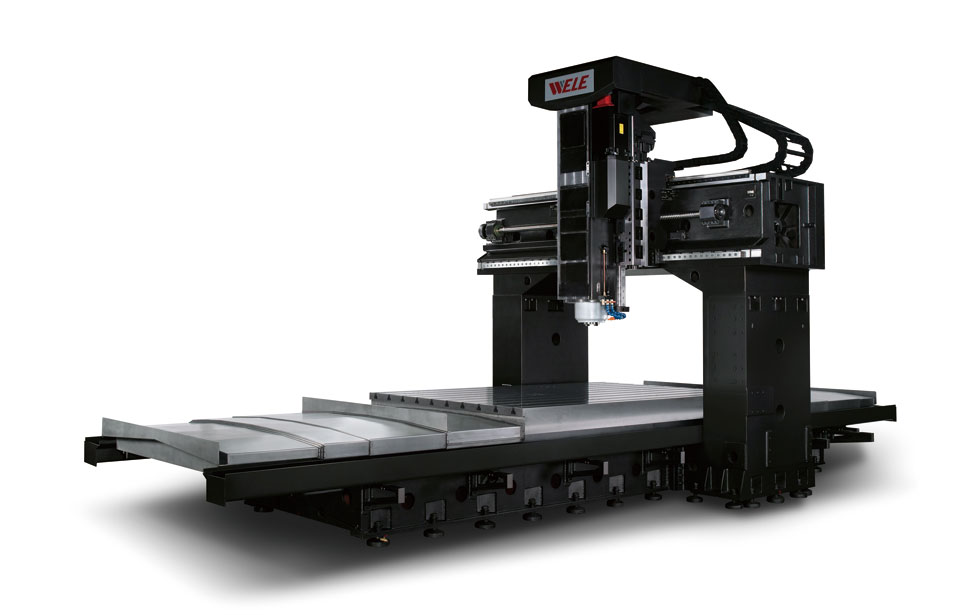

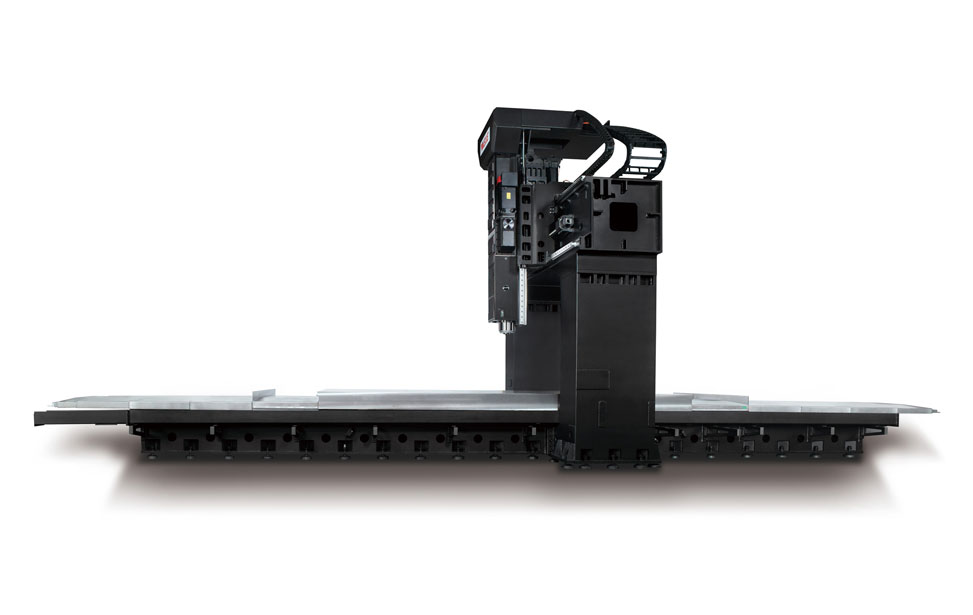

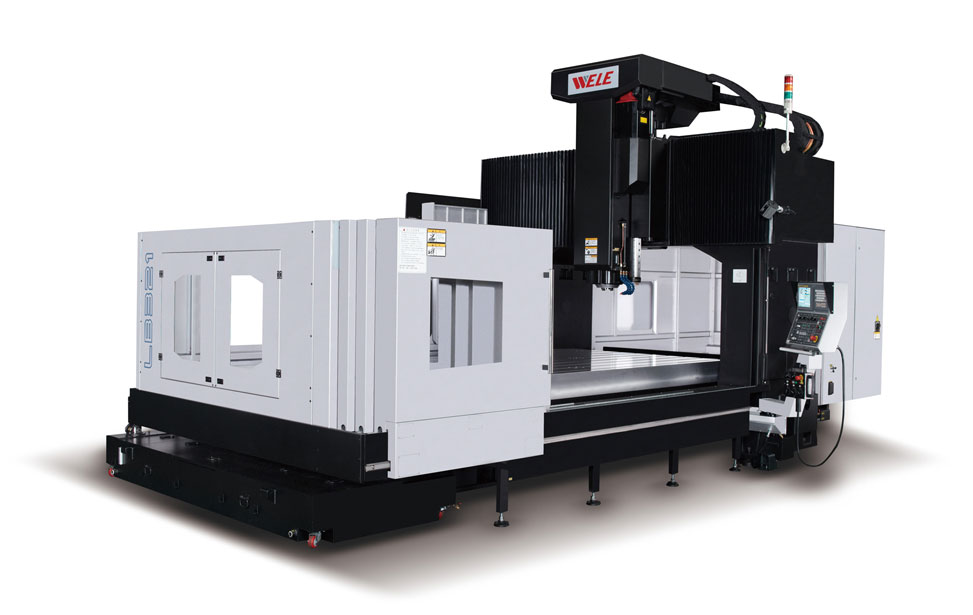

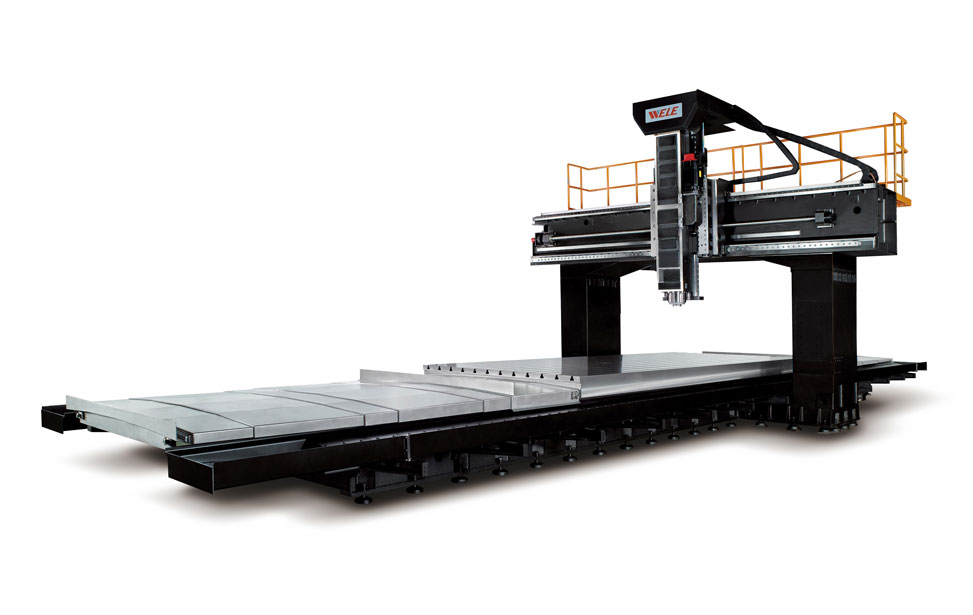

브릿지형 가공센터
- 도구 교환 기능이 자동으로 5면 기능으로 업그레이드된 경제적인 멀티헤드 교환 및 보관(M형)
- 5면 작업 좌표 평면 변환 시스템은 이 선택 기능과 함께 M유형으로 자동 부착됩니다.
- Z트레블은 1000mm, 1200mm, 1400mm를 옵션으로 제공합니다.
- 필요에 따라 X 이동 거리는 최대 10m까지 가능합니다.
Description
LB-x21
LB-x25
LB-x33
LB-x21Y
LB-x25Y
| Specification / Machine model | Unit | LB-321 | LB-421 | LB-521 | LB-621 | LB-721 |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060(277.9) |
| Y axis travel | mm (in) | 2150 (84.6) | ||||
| Z axis travel | mm (in) | 800 (31.5) | ||||
| Distance between columns | mm (in) | 2300 (90.5) | ||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000(275.6) |
| Table dimension (Y direction) | mm (in) | 2000 (78.7) | ||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000(48501) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||
| Spindle speed | rpm | 10-6000 | ||||
| Spindle taper | BT#50 (ISO 50) | |||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | 18000 (708.7) | 12500 (492.1) | 9000 (354.3) | 6000(236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 20000 (787.4) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | ||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-12500 (0.04-492.1) | 1-9000 (0.04-354.3) | 1-6000 (0.04-236.2) | |
| Capacity of tool magazine | pcs | 32 | ||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | ||||
| Max. length of tool | mm (in) | 400(15.7) | ||||
| Max. weight of tool | kg (lb) | 20(44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(±0.006) | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.019(0.000748) | P≦s 0.025(0.000984) | P≦s 0.025(0.000984) | P≦0.030(0.001181) | P≦0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | ||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.015(0.000591) | Ps≦0.020(0.000787) | Ps≦0.020(0.000787) | Ps≦0.025 (0.000984) | Ps≦0.028(0.001102) |
| Length of the machine | mm (in) | 8610 (339) | 10590 (416.9) | 12910 (508.3) | 15000 (590.6) | 17500(688.9) |
| Width of the machine | mm (in) | 5300 (208.7) | ||||
| Height of the machine | mm (in) | 5250(206.6) | ||||
| Weight of the machine | kg (lb) | 29500 (65036) | 35500 (78264) | 40000 (88185) | 45000(99208) | — |
| Specification / Machine model | Unit | LB-325 | LB-425 | LB-525 | LB-625 | LB-725 | LB-825 | LB-1025 |
|---|---|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) | 8060(317.3) | 10060(396) |
| Y axis travel | mm (in) | 2550(100.3) | ||||||
| Z axis travel | mm (in) | 800 (31.5) | ||||||
| Distance between columns | mm (in) | 2700 (106.3) | ||||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000(275.6) | 8000(314.9) | 10000(393.7) |
| Table dimension (Y direction) | mm (in) | 2400 (94.4) | 2500 (98.4) | |||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000(48501) | 25000(55115) | 25000(55115) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||||
| Spindle speed | rpm | 10-6000 | ||||||
| Spindle taper | BT#50 (ISO 50) | |||||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | 18000 (708.7) | 12500 (492.1) | 9000 (354.3) | 6000(236.2) | 5000(196.8) | 4000(157.4) |
| Rapid feedrate – Y axis | mm(in)/min | 20000 (787.4) | ||||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | ||||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-15000 (0.04-590.6) | 1-12500(0.04-492.1) | 1-9000(0.04-354.3) | 1-6000(0.04-236.2) | 1-5000(0.04-196.8) | 1-4000(0.04-157.4) |
| Capacity of tool magazine | pcs | 32 | ||||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | ||||||
| Max. length of tool | mm (in) | 400(15.7) | ||||||
| Max. weight of tool | kg (lb) | 20(44) | ||||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(±0.006) | ||||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.019(0.000748) | P≦s 0.025(0.000984) | P≦s 0.025(0.000984) | P≦0.030(0.001181) | P≦0.035(0.001378) | P≦0.035(0.001378) | P≦0.045(0.001772) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | ||||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.015(0.000591) | Ps≦0.020(0.000787) | Ps≦0.020(0.000787) | Ps≦0.025 (0.000984) | Ps≦0.028(0.001102) | Ps≦0.028(0.001102) | Ps≦0.032(0.00126) |
| Length of the machine | mm (in) | 8610 (339) | 10590 (416.9) | 12660(498.4) | 14750(580.7) | 17250(679.1) | 20000(787.4) | 23070(908.2) |
| Width of the machine | mm (in) | 5700(224.4) | ||||||
| Height of the machine | mm (in) | 5250(206.6) | ||||||
| Weight of the machine | kg (lb) | 32300(71209) | 39000(85980) | 44500(98105) | 50000(110231) | — | — | — |
| Specification / Machine model | Unit | LB-433 | LB-533 | LB-633 | LB-733 | LB-833 | LB-1033 |
|---|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) | 8060 (317.3) | 10060 (396) |
| Y axis travel | mm (in) | 3350 (131.8) | |||||
| Z axis travel | mm (in) | 800 (31.5) | |||||
| Distance between columns | mm (in) | 3500 (137.8) | |||||
| Table dimension (X direction) | mm (in) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.6) | 8000 (314.9) | 10000 (393.7) |
| Table dimension (Y direction) | mm (in) | 2400 (94.4) | 2500 (98.4) | ||||
| Table loading | kg (lb) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) | 25000 (55115) | 25000 (55115) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | |||||
| Spindle speed | rpm | 10-6000 | |||||
| Spindle taper | BT#50 (ISO 50) | ||||||
| Rapid feedrate – X axis | mm(in)/min | 18000 (708.7) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) | 5000 (196.8) | 4000 (157.4) |
| Rapid feedrate – Y axis | mm(in)/min | 20000 (787.4) | |||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | |||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-9000 (0.04-354.3) | 1-6000 (0.04-236.2) | 1-5000 (0.04-196.8) | 1-4000 (0.04-157.4) | |
| Capacity of tool magazine | pcs | 32 | |||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | |||||
| Max. length of tool | mm (in) | 400 (15.7) | |||||
| Max. weight of tool | kg (lb) | 20 (44) | |||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015 (±0.006) | |||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦s 0.025(0.000984) | P≦s 0.025(0.000984) | P≦0.030(0.001181) | P≦0.035(0.001378) | P≦0.035(0.001378) | P≦0.045(0.001772) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | |||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.020(0.000787) | Ps≦0.020(0.000787) | Ps≦0.025 (0.000984) | Ps≦0.028(0.001102) | Ps≦0.028(0.001102) | Ps≦0.032(0.00126) |
| Length of the machine | mm (in) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 17250 (679.1) | 20000 (787.4) | 23070 (908.2) |
| Width of the machine | mm (in) | 6500 (255.9) | |||||
| Height of the machine | mm (in) | 5250 (206.6) | |||||
| Weight of the machine | kg (lb) | — | |||||
| Specification / Machine model | Unit | LB-321Y | LB-421Y | LB-521Y | LB-621Y | LB-721Y |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) |
| Y axis travel | mm (in) | 2800 (110.2) | ||||
| Z axis travel | mm (in) | 800 (31.5) | ||||
| Distance between columns | mm (in) | 2300 (90.5) | ||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.6) |
| Table dimension (Y direction) | mm (in) | 2000 (78.7) | ||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||
| Spindle speed | rpm | 10-6000 | ||||
| Spindle taper | BT#50 (ISO 50) | |||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | 18000 (708.7) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 18000 (708.6) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | ||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-12500 (0.04-492.1) | 1-9000 (0.04-354.3) | 1-6000 (0.04-236.2) | |
| Capacity of tool magazine | pcs | 32 | ||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | ||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015 (±0.006) | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.019 (0.000748) | P≦s 0.025 (0.000984) | P≦s 0.025 (0.000984) | P≦0.030 (0.001181) | P≦0.035 (0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | ||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.015 (0.000591) | Ps≦0.020 (0.000787) | Ps≦0.020 (0.000787) | Ps≦0.025 (0.000984) | Ps≦0.028 (0.001102) |
| Length of the machine | mm (in) | 8610 (339) | 10590 (416.9) | 12910 (508.3) | 15000 (590.6) | 17500 (688.9) |
| Width of the machine | mm (in) | 5950 (234.2) | ||||
| Height of the machine | mm (in) | 5250 (206.6) | ||||
| Weight of the machine | kg (lb) | 30000 (66138) | 36000 (79366) | 40500 (89287) | 45500 (100310) | — |
| Specification / Machine model | Unit | LB-325Y | LB-425Y | LB-525Y | LB-625Y | LB-725Y | LB-825Y | LB-1025Y |
|---|---|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) | 8060 (317.3) | 10060 (396) |
| Y axis travel | mm (in) | 3200 (125.9) | ||||||
| Z axis travel | mm (in) | 800 (31.5) | ||||||
| Distance between columns | mm (in) | 2700 (106.3) | ||||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.6) | 8000 (314.9) | 10000 (393.7) |
| Table dimension (Y direction) | mm (in) | 2400 (94.4) | 2500 (98.4) | |||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) | 25000 (55115) | 25000 (55115) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||||
| Spindle speed | rpm | 10-6000 | ||||||
| Spindle taper | BT#50 (ISO 50) | |||||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | 18000 (708.7) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) | 5000 (196.8) | 4000 (157.4) |
| Rapid feedrate – Y axis | mm(in)/min | 15000 (590.6) | ||||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | ||||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-9000 (0.04-354.3) | 1-6000 (0.04-236.2) | 1-5000 (0.04-196.8) | 1-4000 (0.04-157.4) | ||
| Capacity of tool magazine | pcs | 32 | ||||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | ||||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(±0.006) | ||||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.019 (0.000748) | P≦s 0.025 (0.000984) | P≦s 0.025 (0.000984) | P≦0.030 (0.001181) | P≦0.035 (0.001378) | P≦0.035 (0.001378) | P≦0.045 (0.001772) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003 (±0.0001) | ||||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.015 (0.000591) | Ps≦0.020 (0.000787) | Ps≦0.020 (0.000787) | Ps≦0.025 (0.000984) | Ps≦0.028 (0.001102) | Ps≦0.028 (0.001102) | Ps≦0.032 (0.00126) |
| Length of the machine | mm (in) | 8610 (339) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 17250 (679.1) | 20000 (787.4) | 23070 (908.2) |
| Width of the machine | mm (in) | 6350 (250) | ||||||
| Height of the machine | mm (in) | 5250 (206.6) | ||||||
| Weight of the machine | kg (lb) | 33300 (73413) | 40000 (88184) | 45500 (100310) | 51000 (112435) | — | — | — |
