HB Series

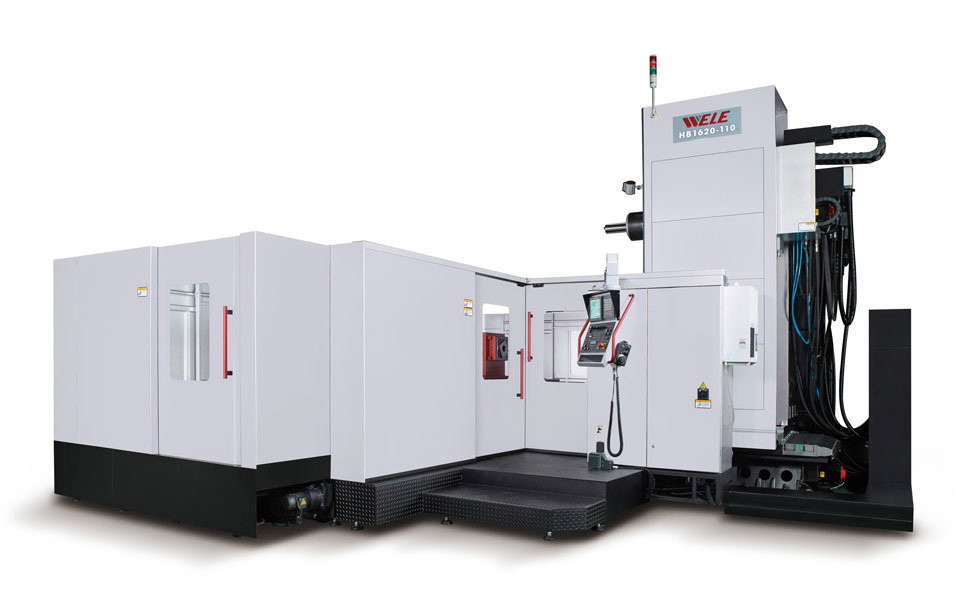

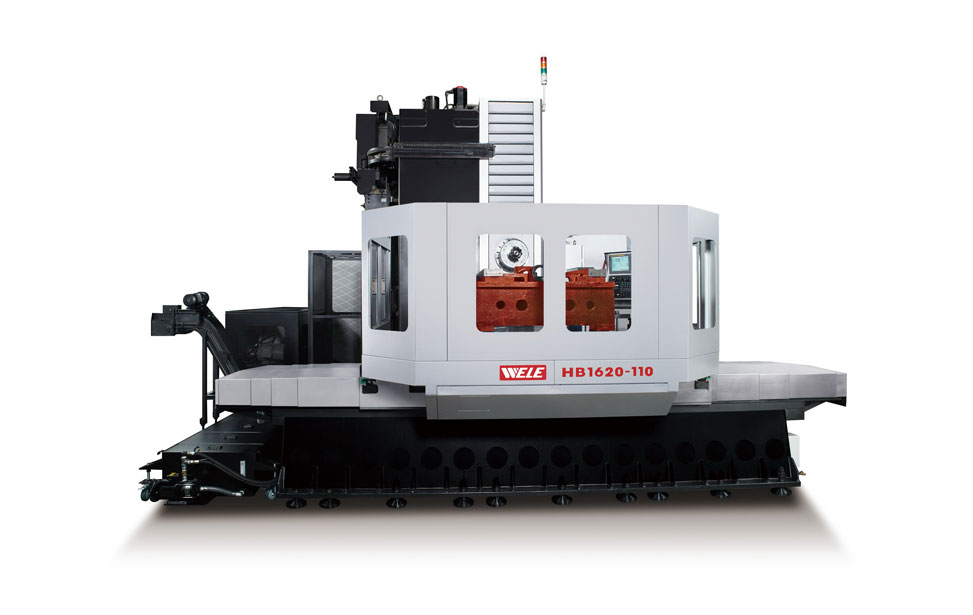

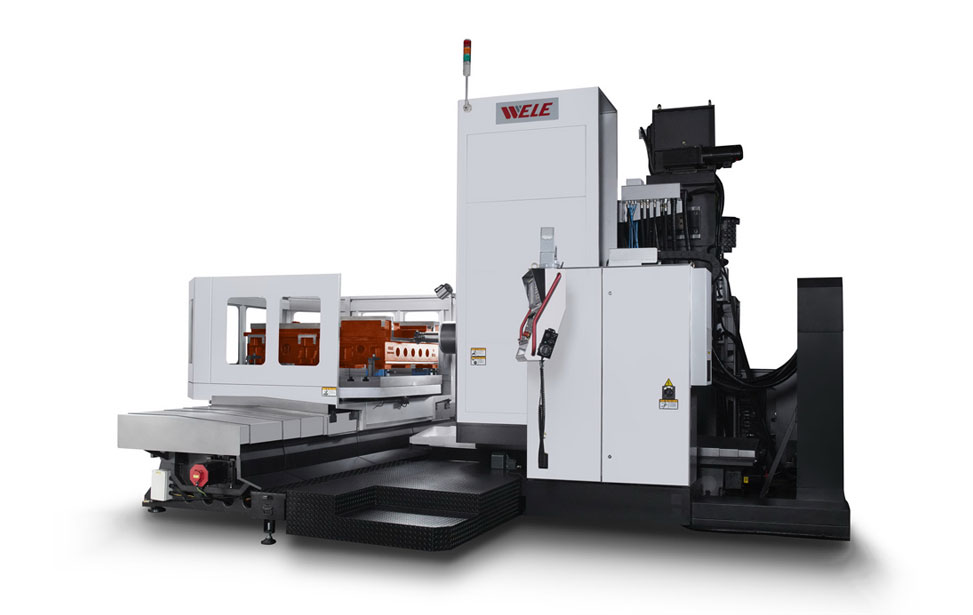

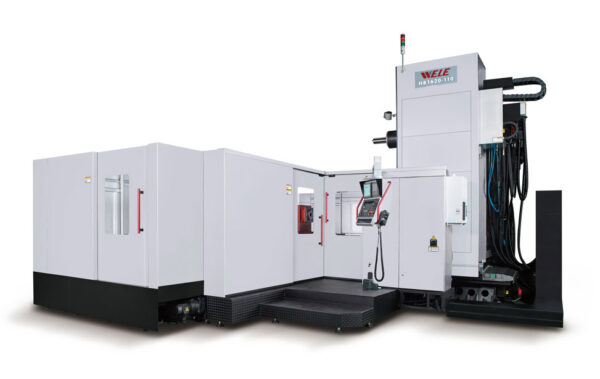

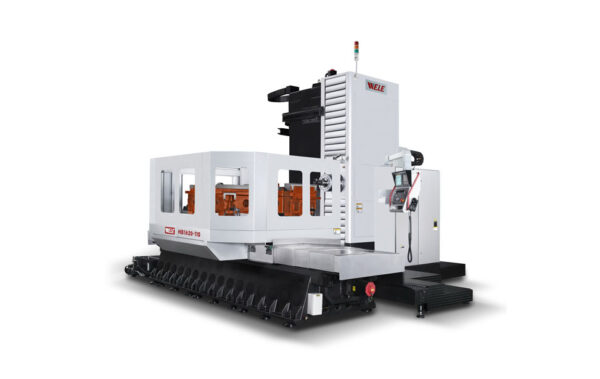

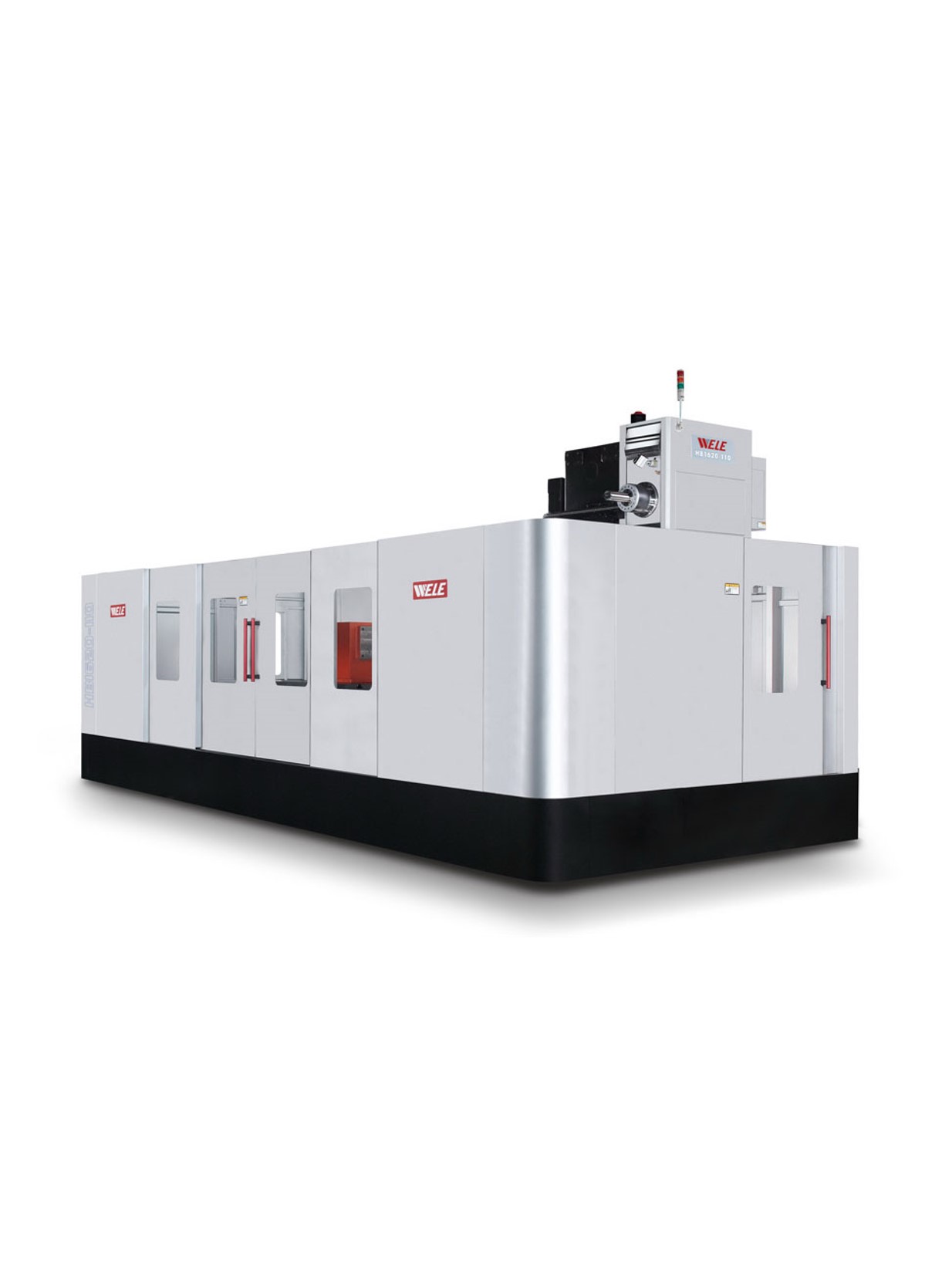

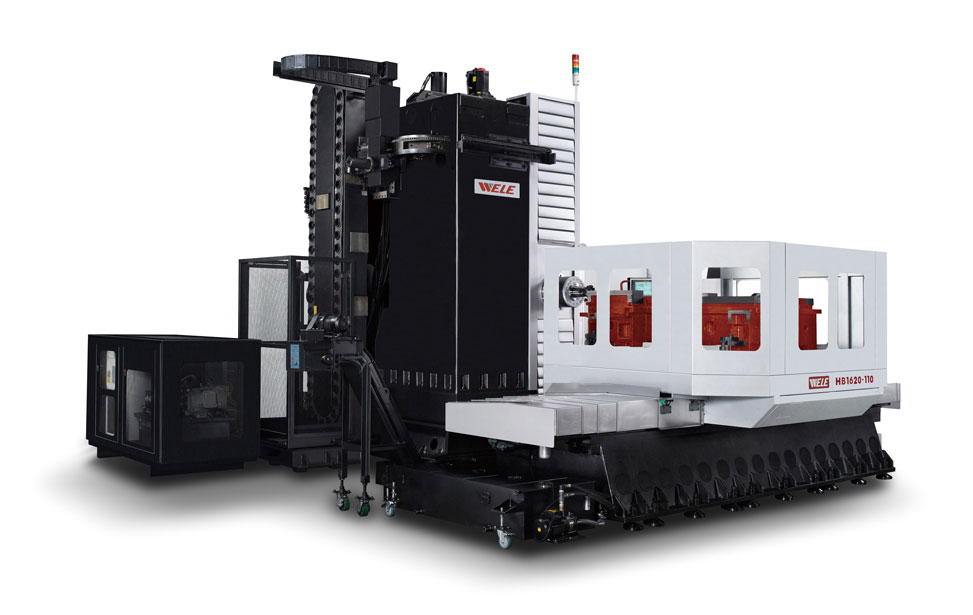

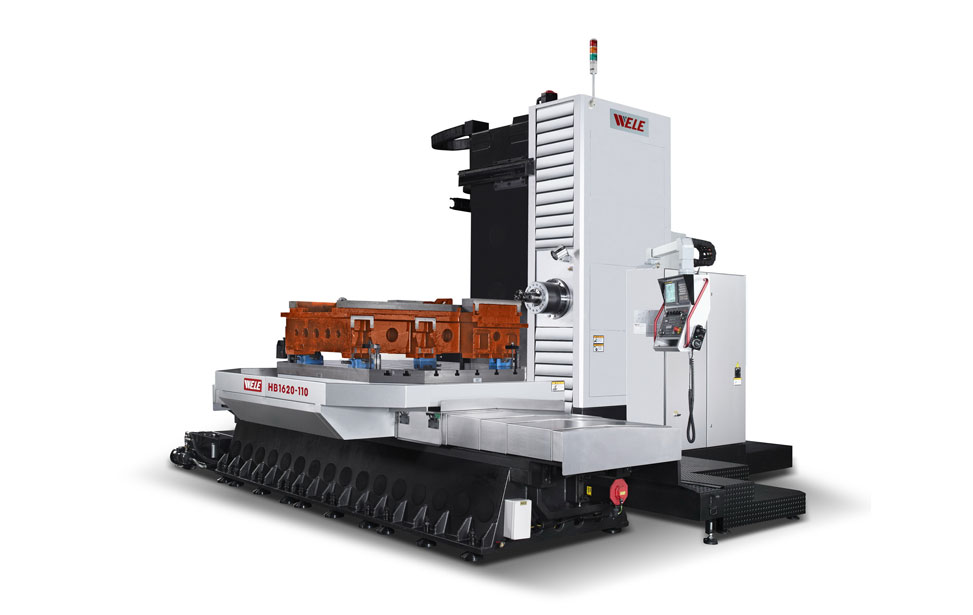

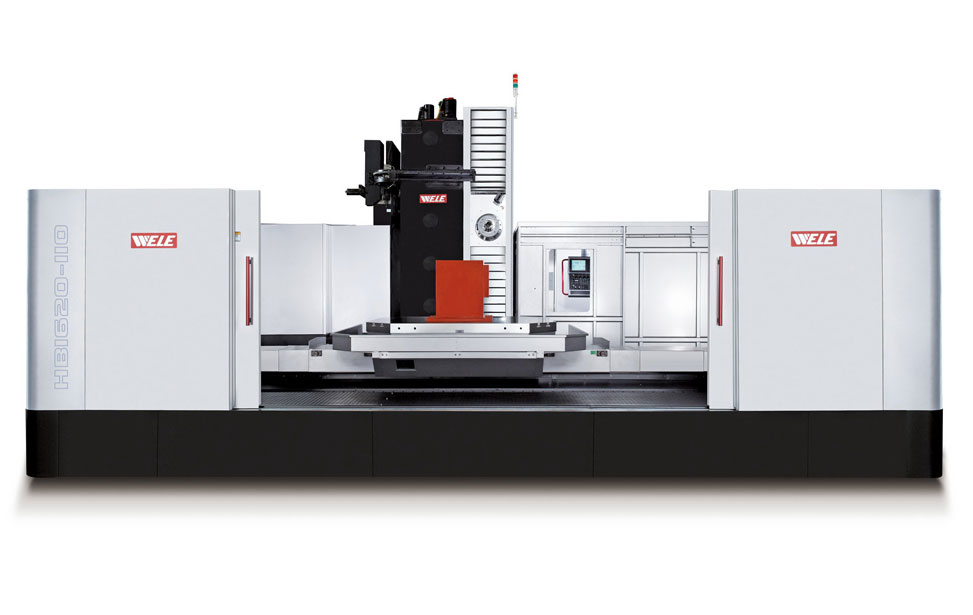

Horizontal Boring Machining Center
- Ø110mm(W 이동 거리 500mm)와 Ø130mm(W 이동 거리 700mm)의 두 가지 스핀들, 퀼 유형과 퀼 이동 거리와 결합된 램 유형은 모든 종류의 응용 분야에 적합합니다.

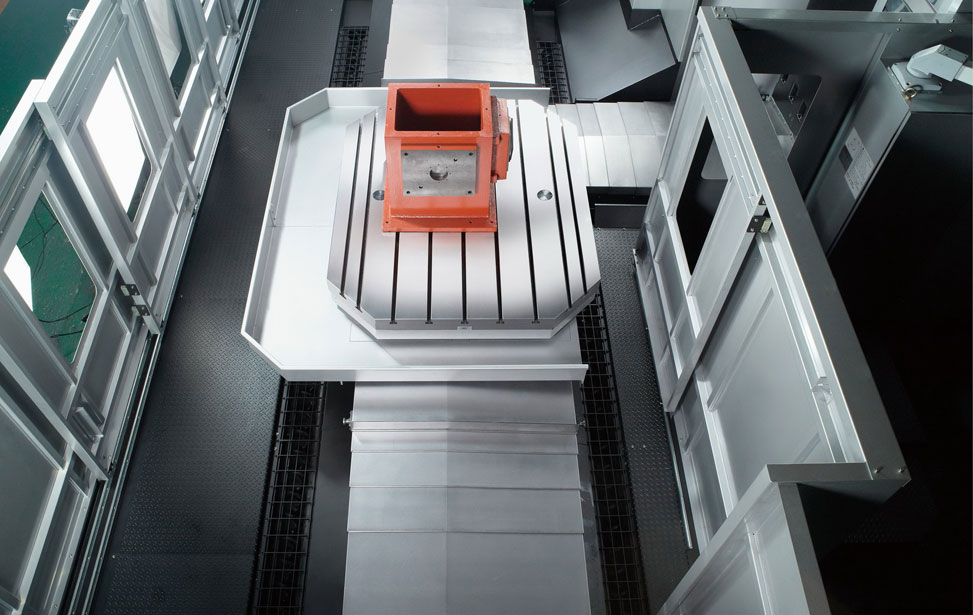

- 지정된 정수압 베어링은 인덱스 테이블에 가장 무거운 하중을 가합니다.
- 특허받은 백래시 제거 메커니즘은 1600x2000mm보다 작은 테이블에서는 인덱스 테이블 백래시를 없애고, 2200x2500mm보다 큰 테이블에서는 두 개의 서보 모터가 작동합니다.
Description

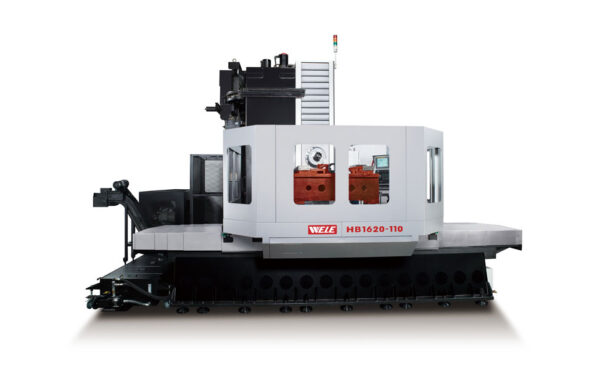

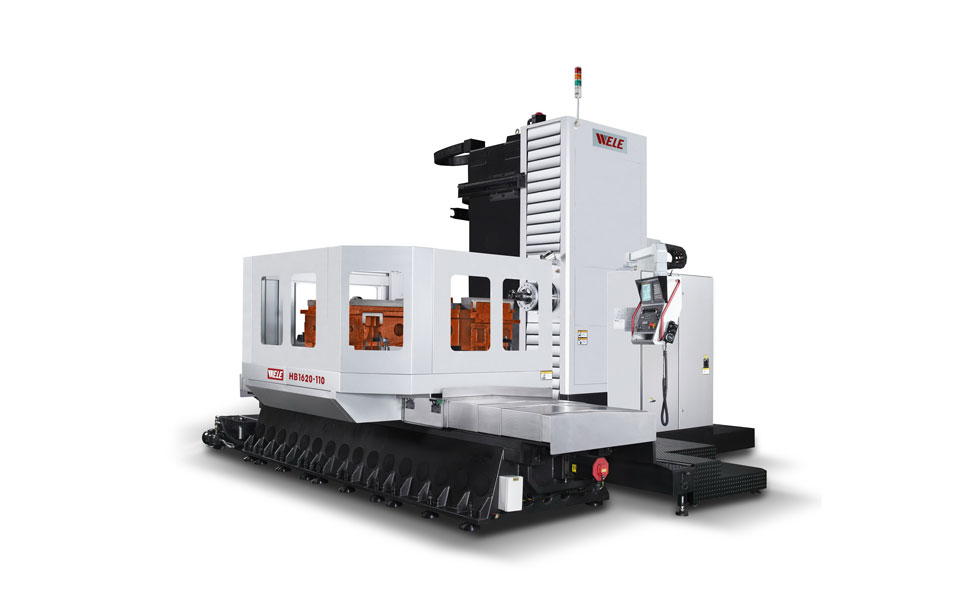

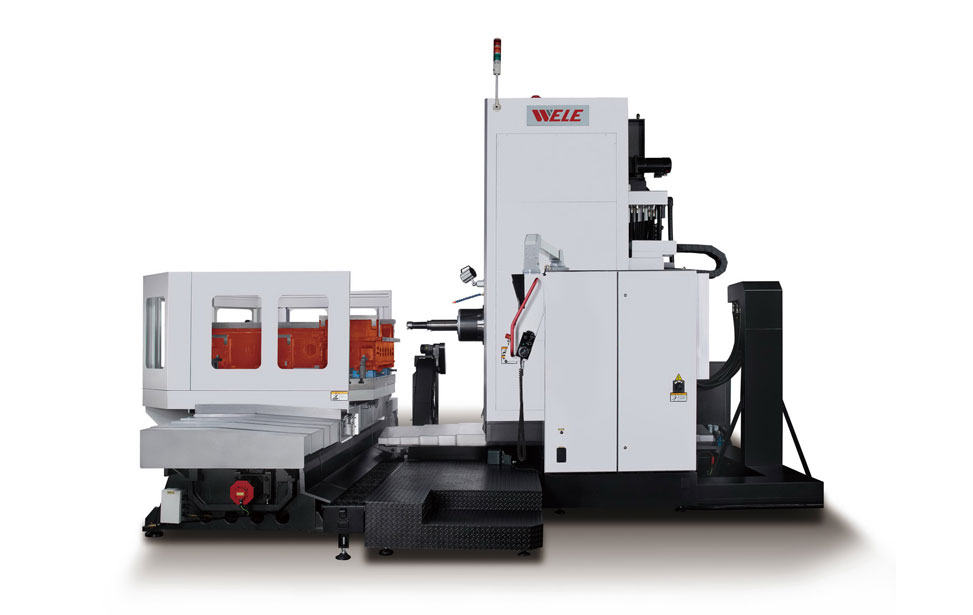

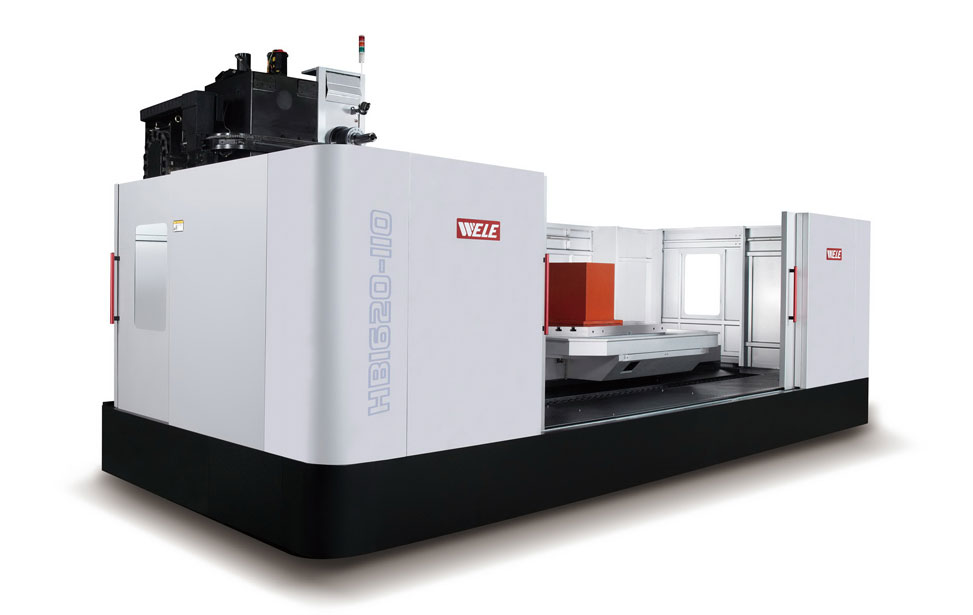

HB1620-110 / HB1620-130
HB1416-110 / HB1416-130
| Specification/ Machine model | Unit | HB1620-110 | HB1620-130 |
|---|---|---|---|
| X axis travel | mm (in) | 3000 (118.1) | |
| Y axis travel | mm (in) | 2100(82.6) | |
| Z axis travel | mm (in) | 1500 (59.1) | |
| W axis travel | mm (in) | 500(19.6) | 700(27.5) |
| From spindle nose to the centerline of table | mm (in) | 280~2280 (11.0~89.7) | 80~2280 (3.1~89.7) |
| Table dimension (X direction) | mm (in) | 1600 (63) | |
| Table dimension (Y direction) | mm (in) | 2000 (78.7) | |
| The samllest split angle of table | degree | 0.001 | |
| Table loading | kg (lb) | 20000 (44000) | |
| Spindle motor power | kW (HP) | 22/26 (30/35) | |
| Spindle speed | rpm | 3500 | 2500 |
| Spindle taper | BT#50 (ISO 50) | ||
| Rapid feedrate – X axis | mm(in)/min | 15000 (590.6) | |
| Rapid feedrate – Y axis | mm(in)/min | 12000 (472.4) | |
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | |
| Rapid feedrate – W axis | mm(in)/min | 5000 (196.9) | |
| Rapid feedrate – B axis | round/min | 0.5 | |
| Cutting federate | mm(in)/min | 12000(472.4) | |
| Capacity of tool magazine | pcs | 40 | |
| Max tool diameter / Adjacent pocket empty | mm (in) | 125/250 (4.9/9.8) | |
| Max. tool length | mm (in) | 400(15.7) | |
| Max. tool weight | kg (lb) | 25(55) | |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.010 (±0.0009/full travel) | |
| Positioning accuarcy of X, Y axis (VDI/DGQ 3441) | mm (in) | P≦0.020(0.000787)/full travel | |
| Positioning accuracy – Z axis (VDI/DGQ 3441) | mm (in) | P≦0.025(0.000984)/full travel | |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.05(0.001969) | |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.015 (Ps≦0.0006) | |
| Repeatibility accuracy-Z axis (VDI/DGQ 3441) | mm (in) | Ps≦0.018(0.000709) | |
| Length of the machine | mm (in) | 7795(306.8) | |
| Width of the machine | mm (in) | 6772(266.6) | |
| Height of the machine | mm (in) | 4485(176.5) | 4522(178) |
| Weight of the machine | kg (lb) | 34500(76059) | 36000(79366) |
| Specification/ Machine model | Unit | HB1416-110 | HB1416-130 |
|---|---|---|---|
| X axis travel | mm (in) | 2000 (78.7) | |
| Y axis travel | mm (in) | 1800(70.8) | |
| Z axis travel | mm (in) | 1300(51.1) | |
| W axis travel | mm (in) | 500(19.6) | 700(27.5) |
| From spindle nose to the centerline of table | mm (in) | 200~2000 (7.8~78.7) | 0~2000 (0~78.7) |
| Table dimension (X direction) | mm (in) | 1440 (56.7) | |
| Table dimension (Y direction) | mm (in) | 1600 (63) | |
| The samllest split angle of table | degree | 0.001 | |
| Table loading | kg (lb) | 12000 (26455) | |
| Spindle motor power | kW (HP) | 22/26 (30/35) | |
| Spindle speed | rpm | 3500 | 2500 |
| Spindle taper | BT#50 (ISO 50) | ||
| Rapid feedrate – X axis | mm(in)/min | 15000 (590.6) | |
| Rapid feedrate – Y axis | mm(in)/min | 12000 (472.4) | |
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.6) | |
| Rapid feedrate – W axis | mm(in)/min | 5000 (196.9) | |
| Rapid feedrate – B axis | round/min | 0.5 | |
| Cutting federate | mm(in)/min | 12000(472.4) | |
| Capacity of tool magazine | pcs | 40 | |
| Max tool diameter / Adjacent pocket empty | mm (in) | 125/250 (4.9/9.8) | |
| Max. tool length | mm (in) | 400(15.7) | |
| Max. tool weight | kg (lb) | 25(55) | |
| Positioning accuracy (JIS 6338) | mm (in) | ±0.010 (±0.0009/full travel) | |
| Positioning accuarcy of X, Y axis (VDI/DGQ 3441) | mm (in) | P≦0.016 (0.0006)/ full length | |
| Positioning accuracy – Z axis (VDI/DGQ 3441) | mm (in) | P≦0.025(0.000984)/full travel | |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.05(0.001969) | |
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.012 (Ps≦0.0005) | |
| Repeatibility accuracy-Z axis (VDI/DGQ 3441) | mm (in) | Ps≦0.018(0.000709) | |
| Length of the machine | mm (in) | 6325(249) | |
| Width of the machine | mm (in) | 6292(247.7) | |
| Height of the machine | mm (in) | 4128(162.5) | 4165(163.9) |
| Weight of the machine | kg (lb) | 31000(68343) | 32500(71650) |
