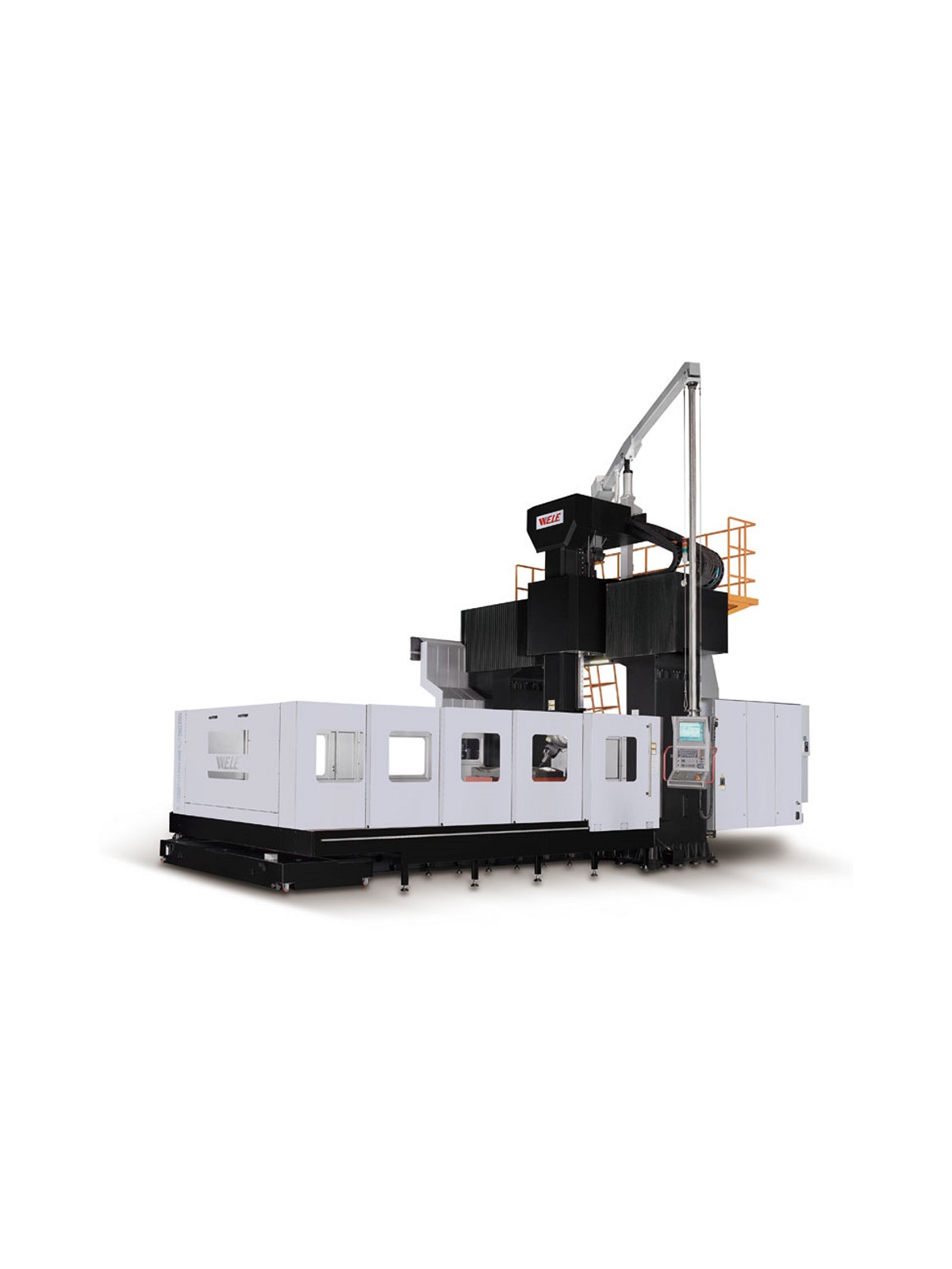

UB Series
Double Columns type Machining Center (with Univers
- 모든 크기의 LB 시리즈 기계에 사용 가능한 추가 틸팅 헤드를 UB 시리즈 5축 동시 브릿지 기계라고 합니다.
- 필요에 따라 자체 디자인이나 구매한 틸팅 헤드도 모두 이용 가능합니다.
- A축은 ±110°, C축은 ±360°의 기울기 각도 범위를 가집니다.
- Z축 이동 거리는 표준으로 800mm이며, 옵션으로 1000mm, 1200mm 및 1400mm를 제공합니다.
- UB 기계는 주로 유럽과 미국 시장을 대상으로 합니다.
- FANUC/HEIDENHAIN 컨트롤러를 장착한 독일산 틸팅 헤드가 제공됩니다.
Description
UB-x33YZ
UB-x25YZ
UB-x21YZ
UB-x21Z
UB-x33Z
UB-x25Z
| Specification | Unit | UB-433YZ | UB-533YZ | UB-633YZ | UB-733YZ |
|---|---|---|---|---|---|
| X axis travel | mm (in) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (278) |
| Y axis travel | mm (in) | 4000 (157.4) | |||
| Z axis travel (B =0 degree) | mm (in) | 1000 (39.4) | |||
| B axis travel | degree | +-110 | |||
| C axis travel | degree | +-360 | |||
| Table dimension (X direction) | mm (in) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.5) |
| Table dimension (Y direction) | mm (in) | 2400 (94.5) | |||
| Table loading | kg (lb) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) |
| Spindle motor power | kW (HP) | 34 (45.5) | |||
| Spindle speed | rpm | 10-12000 | |||
| Spindle taper | HSK-A100 | ||||
| Rapid feedrate – X axis | mm(in)/min | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 18000 (708.6) | |||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393.7) | |||
| Cutting feedrate | mm(in)/min | 1-10000 (393.7) | 1-9000 (354.3) | 1-6000 (236.2) | |
| Capacity of tool magazine | pcs | 32 | |||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.4) | |||
| Max. length of tool | mm (in) | 400 (15.7) | |||
| Max. weight of tool | kg (lb) | 20 (44) | |||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | |||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.025(0.000984) | P=0.025(0.000984) | P=0.030(0.001181) | P=0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | |||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 15970 (628.7) |
| Width of the machine | mm (in) | 7300 (287.4) | |||
| Height of the machine | mm (in) | 6550 (257.9) | |||
| Weight of the machine | kg (lb) | 43800 (96562) | 49300 (108687) | 54800 (120813) | — |
| Specification | Unit | UB-325YZ | UB-425YZ | UB-525YZ | UB-625YZ | UB-725YZ |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (278) |
| Y axis travel | mm (in) | 3200 (125.9) | ||||
| Z axis travel (B =0 degree) | mm (in) | 1000 (39.4) | ||||
| B axis travel | degree | +-110 | ||||
| C axis travel | degree | +-360 | ||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 6000 (236.2) |
| Table dimension (Y direction) | mm (in) | 2400 (94.5) | ||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 20000 (44092) |
| Spindle motor power | kW (HP) | 34(45.5) | ||||
| Spindle speed | rpm | 10-12000 | ||||
| Spindle taper | HSK-A100 | |||||
| Rapid feedrate – X axis | mm(in)/min | 2000 (78.7) | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 15000 (590.5) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393.7) | ||||
| Cutting feedrate | mm(in)/min | 1-10000(393.7) | 1-9000(354.3) | 1-6000(236.2) | ||
| Capacity of tool magazine | pcs | 32 | ||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.4) | ||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.019(0.000748) | P=0.025(0.000984) | P=0.025(0.000984) | P=0.030(0.001181) | P=0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | ||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.015(0.000591) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 8610 (338.9) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 17250 (679.1) |
| Width of the machine | mm (in) | 6500 (255.9) | ||||
| Height of the machine | mm (in) | 6550 (257.9) | ||||
| Weight of the machine | kg (lb) | 37100 (81791) | 43800 (96562) | 49300 (108687) | 54800 (120813) | — |
| Specification | Unit | UB-321YZ | UB-421YZ | UB-521YZ | UB-621YZ | UB-721YZ |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) |
| Y axis travel | mm (in) | 2150 (84.6) | ||||
| Z axis travel (B =0 degree) | mm (in) | 1000 (39.4) | ||||
| B axis travel | degree | +-110 | ||||
| C axis travel | degree | +-360 | ||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.5) |
| Table dimension (Y direction) | mm (in) | 2000 (78.7) | ||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) |
| Spindle motor power | kW (HP) | 34(45.5) | ||||
| Spindle speed | rpm | 10-12000 | ||||
| Spindle taper | HSK-A100 | |||||
| Rapid feedrate – X axis | mm(in)/min | 2000 (78.7) | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 20000 (787.4) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393.7) | ||||
| Cutting feedrate | mm(in)/min | 1-10000(393.7) | 1-9000(354.3) | 1-6000(236.2) | ||
| Capacity of tool magazine | pcs | 32 | ||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.4) | ||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.019(0.000748) | P=0.025(0.000984) | P=0.025(0.000984) | P=0.030(0.001181) | P=0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | ||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.015(0.000591) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 8610 (339) | 10590 (416.9) | 12910 (508.3) | 15000 (590.6) | 17500 (688.9) |
| Width of the machine | mm (in) | 5450 (214.6) | ||||
| Height of the machine | mm (in) | 6550 (257.9) | ||||
| Weight of the machine | kg (lb) | 33100 (72973) | 39100 (86201) | 43600 (96122) | 48800 (107586) | — |
| Specification | Unit | UB-321Z | UB-421Z | UB-521Z | UB-621Z | UB-721Z |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (277.9) |
| Y axis travel | mm (in) | 2150 (84.6) | ||||
| Z axis travel (B =0 degree) | mm (in) | 1000 (39.4) | ||||
| B axis travel | degree | +-110 | ||||
| C axis travel | degree | +-360 | ||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.5) |
| Table dimension (Y direction) | mm (in) | 2000 (78.7) | ||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) |
| Spindle motor power | kW (HP) | 34 (45.5) | ||||
| Spindle speed | rpm | 10-12000 | ||||
| Spindle taper | HSK-A100 | |||||
| Rapid feedrate – X axis | mm(in)/min | 2000 (78.7) | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 20000 (787.4) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393.7) | ||||
| Cutting feedrate | mm(in)/min | 1-10000(393.7) | 1-9000(354.3) | 1-6000(236.2) | ||
| Capacity of tool magazine | pcs | 32 | ||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.4) | ||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.019(0.000748) | P=0.025(0.000984) | P=0.025(0.000984) | P=0.030(0.001181) | P=0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | ||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.015(0.000591) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 8610 (339) | 10590 (416.9) | 12910 (508.3) | 15000 (590.6) | 17500 (688.9) |
| Width of the machine | mm (in) | 5450 (214.6) | ||||
| Height of the machine | mm (in) | 6550 (257.9) | ||||
| Weight of the machine | kg (lb) | 33100 (72973) | 39100 (86201) | 43600 (96122) | 48800 (107586) | — |
| Specification | Unit | UB-433Z | UB-533Z | UB-633Z | UB-733Z |
|---|---|---|---|---|---|
| X axis travel | mm (in) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (278) |
| Y axis travel | mm (in) | 3350 (131.9) | |||
| Z axis travel (B =0 degree) | mm (in) | 1000 (39.4) | |||
| B axis travel | degree | +-110 | |||
| C axis travel | degree | +-360 | |||
| Table dimension (X direction) | mm (in) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 7000 (275.5) |
| Table dimension (Y direction) | mm (in) | 2400 (94.5) | |||
| Table loading | kg (lb) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 22000 (48501) |
| Spindle motor power | kW (HP) | 34(45.5) | |||
| Spindle speed | rpm | 10-12000 | |||
| Spindle taper | HSK-A100 | ||||
| Rapid feedrate – X axis | mm(in)/min | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 15000 (590.5) | |||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393.7) | |||
| Cutting feedrate | mm(in)/min | 1-10000(393.7) | 1-9000(354.3) | 1-6000(236.2) | |
| Capacity of tool magazine | pcs | 32 | |||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.4) | |||
| Max. length of tool | mm (in) | 400 (15.7) | |||
| Max. weight of tool | kg (lb) | 20 (44) | |||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | |||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.025(0.000984) | P=0.025(0.000984) | P=0.030(0.001181) | P=0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | |||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 15970 (628.7) |
| Width of the machine | mm (in) | 6650 (261.8) | |||
| Height of the machine | mm (in) | 6550 (257.9) | |||
| Weight of the machine | kg (lb) | 42600 (93917) | 48100 (106042) | 53600 (118168) | — |
| Specification | Unit | UB-325Z | UB-425Z | UB-525Z | UB-625Z | UB-725Z |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.6) | 7060 (278) |
| Y axis travel | mm (in) | 2550 (100.4) | ||||
| Z axis travel (B =0 degree) | mm (in) | 1000 (39.4) | ||||
| B axis travel | degree | +-110 | ||||
| C axis travel | degree | +-360 | ||||
| Table dimension (X direction) | mm (in) | 3000 (118.1) | 4000 (157.5) | 5000 (196.9) | 6000 (236.2) | 6000 (236.2) |
| Table dimension (Y direction) | mm (in) | 2400 (94.5) | ||||
| Table loading | kg (lb) | 12000 (26455) | 15000 (33069) | 18000 (39683) | 20000 (44092) | 20000 (44092) |
| Spindle motor power | kW (HP) | 34 (45.5) | ||||
| Spindle speed | rpm | 10-12000 | ||||
| Spindle taper | HSK-A100 | |||||
| Rapid feedrate – X axis | mm(in)/min | 2000 (78.7) | 18000 (708.6) | 12500 (492.1) | 9000 (354.3) | 6000 (236.2) |
| Rapid feedrate – Y axis | mm(in)/min | 20000 (787.4) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 10000 (393.7) | ||||
| Cutting feedrate | mm(in)/min | 1-10000(393.7) | 1-9000(354.3) | 1-6000(236.2) | ||
| Capacity of tool magazine | pcs | 32 | ||||
| Max. diameter of tool / Adjacent pocket empty | mm (in) | 127(5)/215(8.4) | ||||
| Max. length of tool | mm (in) | 400 (15.7) | ||||
| Max. weight of tool | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015(0.000591)/ full travel | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P=0.019(0.000748) | P=0.025(0.000984) | P=0.025(0.000984) | P=0.030(0.001181) | P=0.035(0.001378) |
| Repeatibility accuracy (JIS 6338) | mm (in) | ±0.003(0.000118) | ||||
| Repeatibility accuracy (VDI/DGQ 3441) | mm (in) | Ps=0.015(0.000591) | Ps=0.020(0.000787) | Ps=0.020(0.000787) | Ps=0.025(0.000984) | Ps=0.028(0.001102) |
| Length of the machine | mm (in) | 8610 (338.9) | 10590 (416.9) | 12660 (498.4) | 14750 (580.7) | 17250 (679.1) |
| Width of the machine | mm (in) | 5850 (230.3) | ||||
| Height of the machine | mm (in) | 6550 (257.9) | ||||
| Weight of the machine | kg (lb) | 35900 (79146) | 42600 (93917) | 48100 (106042) | 53600 (118168) | — |
