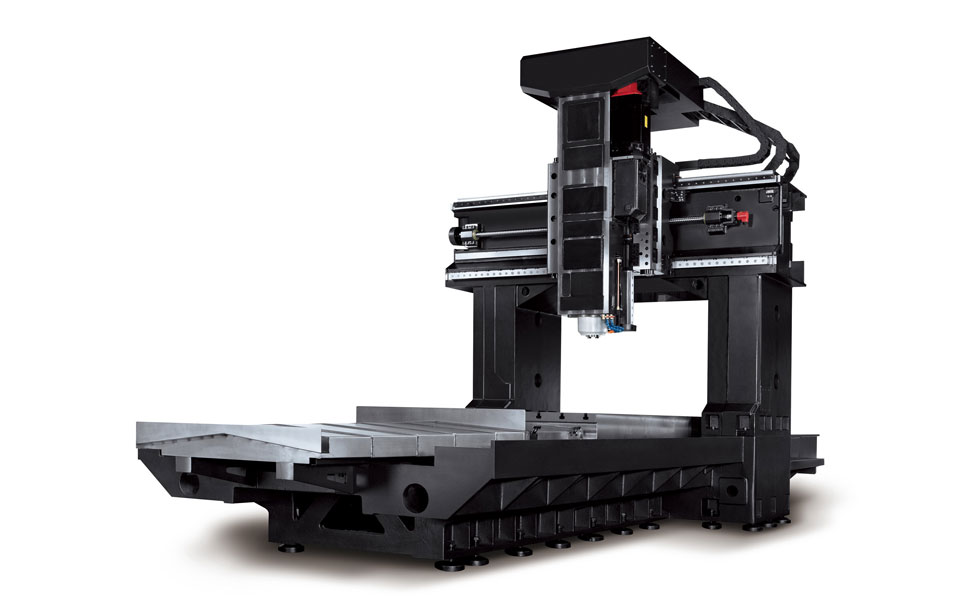

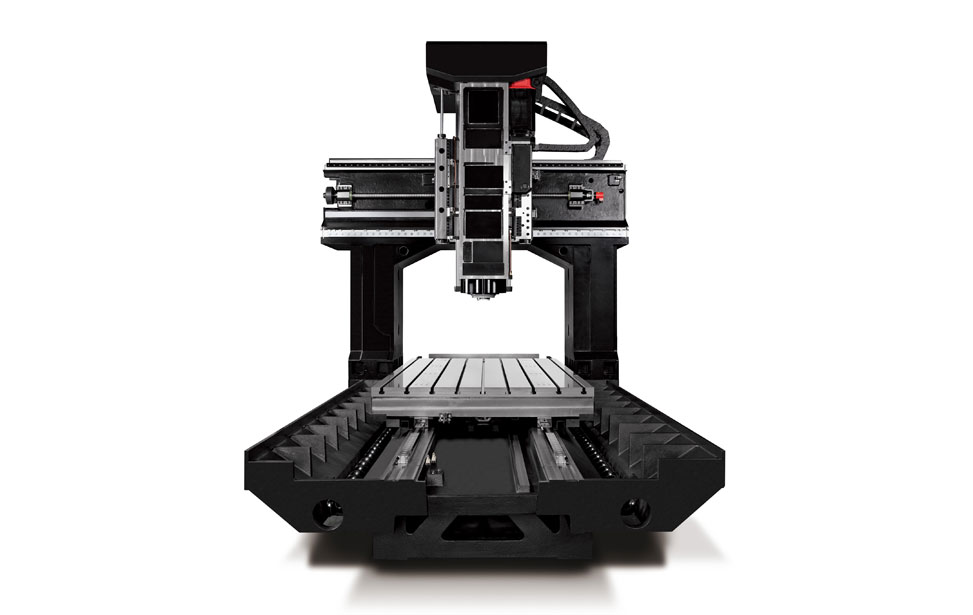

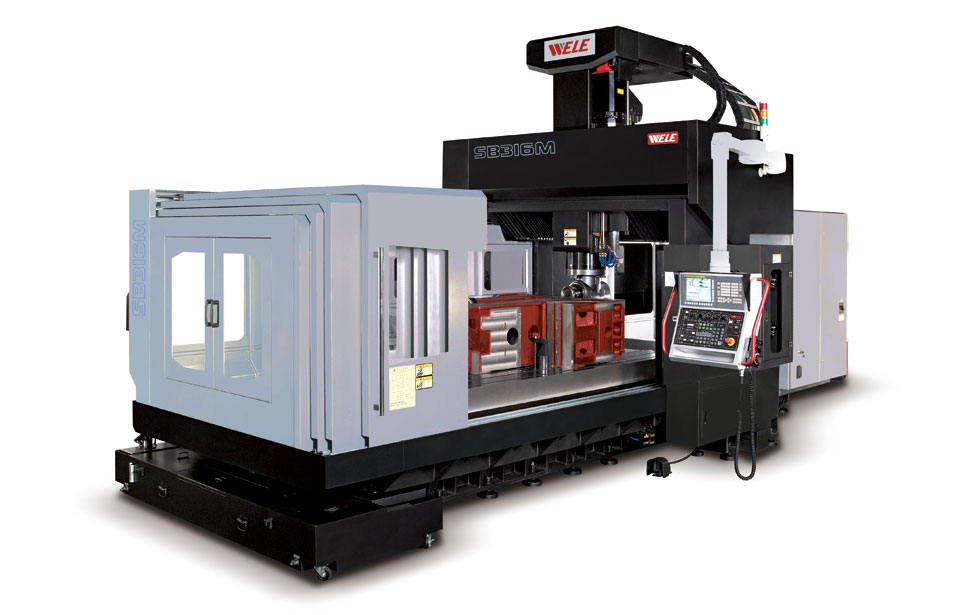

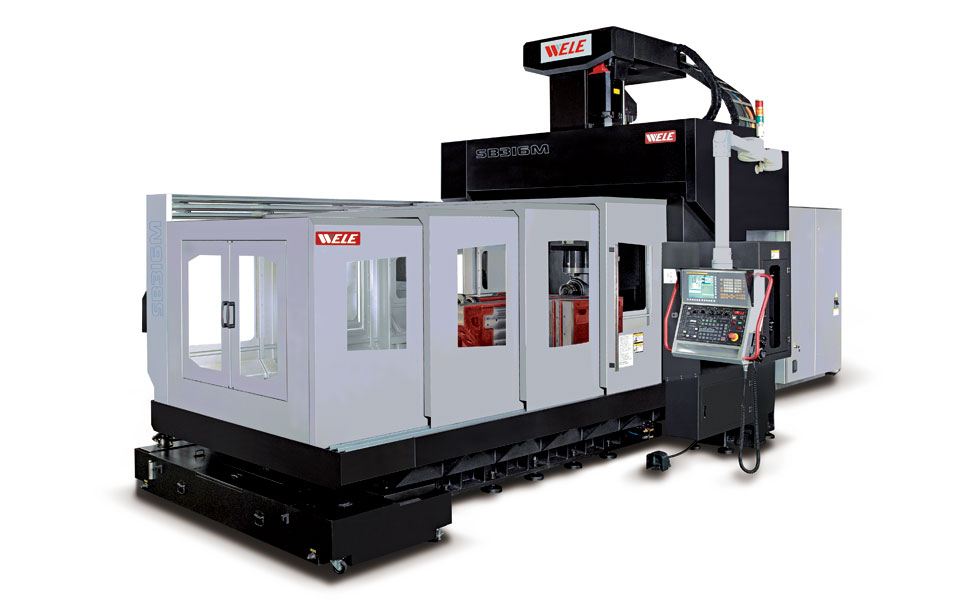

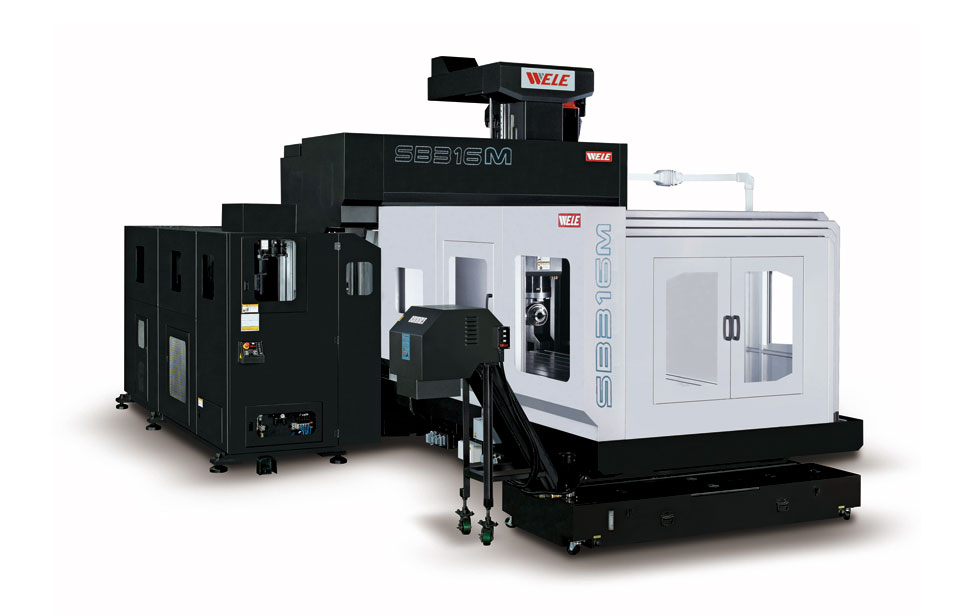

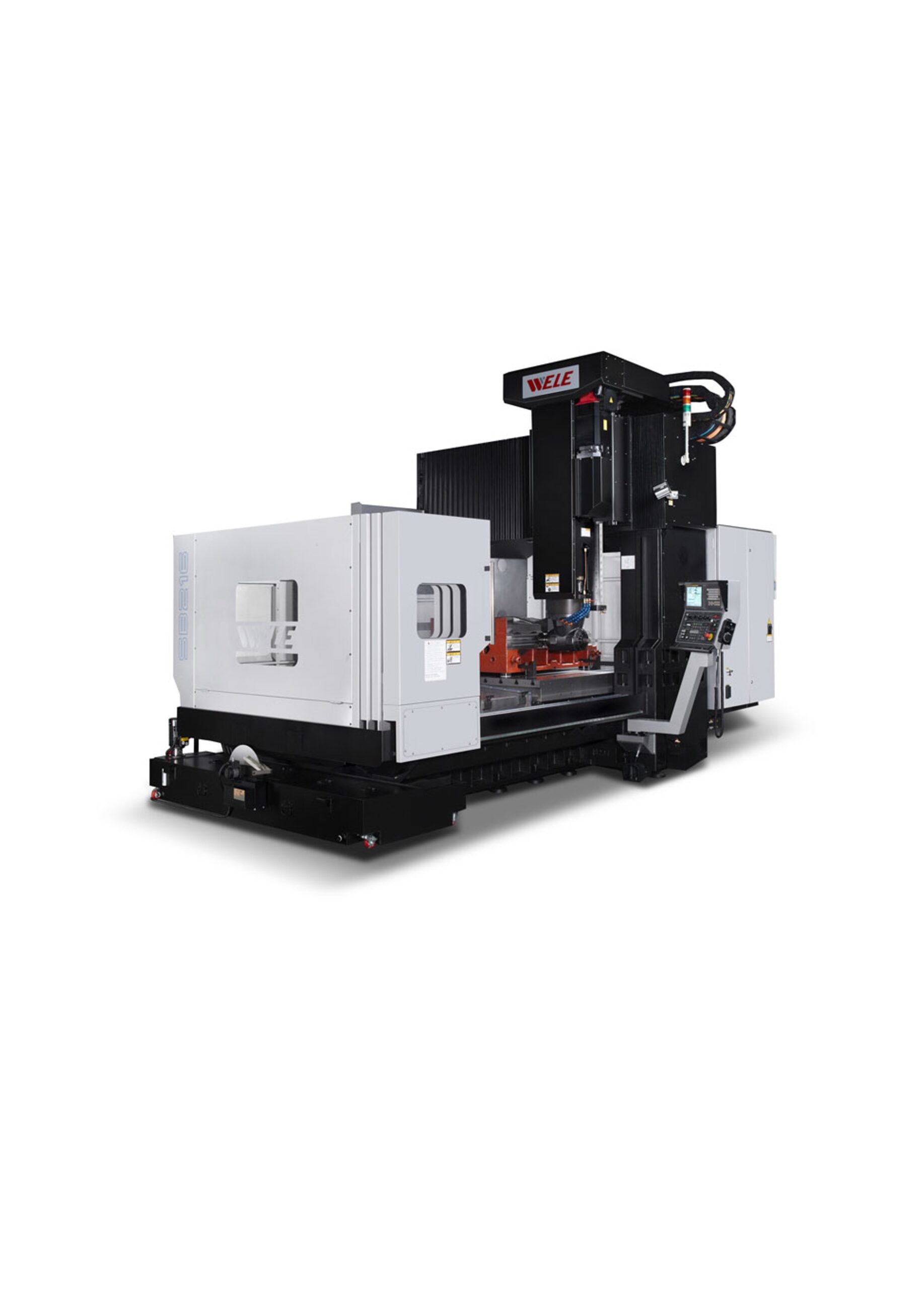

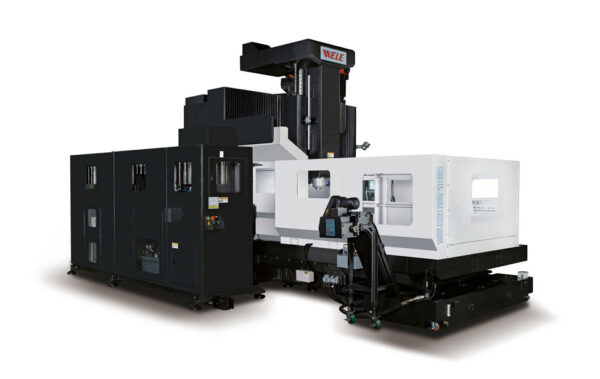

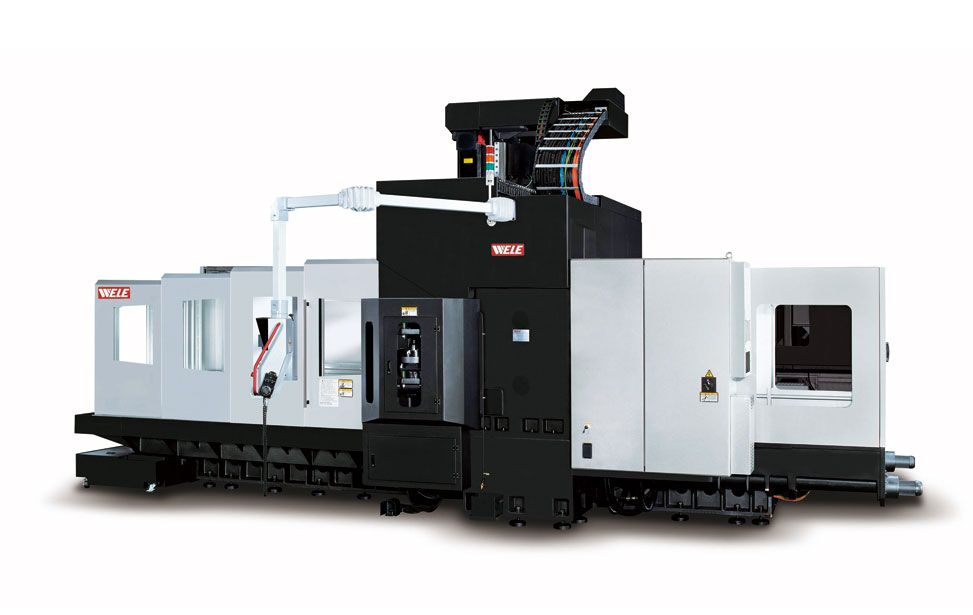

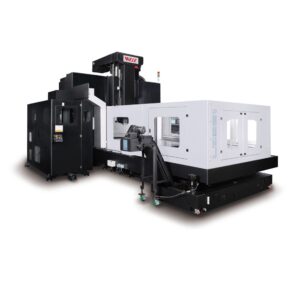

SB Series
브릿지형 가공센터
- 3축 가공에 가장 경제적인 장비입니다.
- (M타입)에서는 경제적인 멀티 헤드 교환 및 보관 기능과 도구 교환 기능이 자동으로 5면 기능으로 업그레이드 되는 옵션이 제공됩니다.
- 5면 작업 좌표 평면 변환 시스템이 이 옵션 기능으로 자동으로 부착됩니다.
- 하나의 조각으로 만들어진 다리 주물
Description
SB-x16
SB-x16Y
| Specification / Machine model | Unit | SB-216 | SB-316 | SB-416 | SB-516 | SB-616 |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 2120 (83.5) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.5) |
| Y axis travel | mm (in) | 1600 (63) | ||||
| Z axis travel | mm (in) | 800 (31.4) | ||||
| Distance between columns | mm (in) | 1700 (66.9) | ||||
| Table dimension (X direction) | mm (in) | 2000 (78.7) | 3000 (118.1) | 4000 (157.5) | 5000 (196.8) | 6000 (236.2) |
| Table dimension (Y direction) | mm (in) | 1500 (59.1) | ||||
| Table loading | kg (lb) | 8000 (17637) | 10000 (22046) | 12000 (26455) | 14000 (30864) | 16000 (35273) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||
| Spindle speed | rpm | 10-6000 | ||||
| Spindle taper | BT#50(ISO 50) | |||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | 20000 (787.4) | 15000 (590.5) | 12000 (472.4) | |
| Rapid feedrate – Y axis | mm(in)/min | 24000 (944.9) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.5) | ||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-12000 (0.04-472.4) | |||
| Capacity of tool magazine | pcs | 32 | ||||
| Max. tool diameter / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | ||||
| Max. tool length | mm (in) | 400 (15.7) | ||||
| Max. tool weight | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015 (±0.004) | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.016(0.00063) | P≦0.019(0.000748) | P≦0.025(0.000984) | P≦0.032(0.00126) | P≦0.040(0.001575) |
| Repeatability accuracy (JIS 6338) | mm (in) | ±0.003 (0.0001) | ||||
| Repeatability accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.013(0.000512) | Ps≦0.015(0.000591) | Ps≦0.020(0.000787) | Ps≦0.025(0.000984) | Ps≦0.030(0.001181) |
| Length of the machine | mm (in) | 5900 (232.2) | 8300 (326.7) | 10200 (401.5) | 12500 (492.1) | — |
| Width of the machine | mm (in) | 4650 (183.1) | ||||
| Height of the machine | mm (in) | 5250 (206.6) | ||||
| Weight of the machine | kg (lb) | 22000 (48502) | 27000 (59525) | 29000 (63934) | 26000 (57320) | — |
| Specification / Machine model | Unit | SB-216Y | SB-316Y | SB-416Y | SB-516Y | SB-616Y |
|---|---|---|---|---|---|---|
| X axis travel | mm (in) | 2120 (83.5) | 3060 (120.5) | 4060 (159.8) | 5060 (199.2) | 6060 (238.5) |
| Y axis travel | mm (in) | 2300 (90.5) | ||||
| Z axis travel | mm (in) | 800 (31.4) | ||||
| Distance between columns | mm (in) | 1700 (66.9) | ||||
| Table dimension (X direction) | mm (in) | 2000 (78.7) | 3000 (118.1) | 4000 (157.5) | 5000 (196.8) | 6000 (236.2) |
| Table dimension (Y direction) | mm (in) | 1500 (59.1) | ||||
| Table loading | kg (lb) | 8000 (17637) | 10000 (22046) | 12000 (26455) | 14000 (30864) | 16000 (35273) |
| Spindle motor power | kW (HP) | 22/26 (30/35) | ||||
| Spindle speed | rpm | 10-6000 | ||||
| Spindle taper | BT#50 (ISO 50) | |||||
| Rapid feedrate – X axis | mm(in)/min | 24000 (944.9) | 20000 (787.4) | 15000 (590.5) | 12000 (472.4) | |
| Rapid feedrate – Y axis | mm(in)/min | 24000 (944.9) | ||||
| Rapid feedrate – Z axis | mm(in)/min | 15000 (590.5) | ||||
| Cutting feedrate | mm(in)/min | 1-15000 (0.04-590.6) | 1-12000 (0.04-472.4) | |||
| Capacity of tool magazine | pcs | 32 | ||||
| Max. tool diameter / Adjacent pocket empty | mm (in) | 127/215 (5.0/8.5) | ||||
| Max. tool length | mm (in) | 400 (15.7) | ||||
| Max. tool weight | kg (lb) | 20 (44) | ||||
| Positioning accuracy (JIS 6338) | mm (in) | ±0.015 (±0.004) | ||||
| Positioning accuracy (VDI/DGQ 3441) | mm (in) | P≦0.016(0.00063) | P≦0.019(0.000748) | P≦0.025(0.000984) | P≦0.032(0.00126) | P≦0.040(0.001575) |
| Repeatability accuracy (JIS 6338) | mm (in) | ±0.003 (0.0001) | ||||
| Repeatability accuracy (VDI/DGQ 3441) | mm (in) | Ps≦0.013(0.000512) | Ps≦0.015(0.000591) | Ps≦0.020(0.000787) | Ps≦0.025(0.000984) | Ps≦0.030(0.001181) |
| Length of the machine | mm (in) | 5900 (232.2) | 8300 (326.7) | 10200 (401.5) | 12500 (492.1) | — |
| Width of the machine | mm (in) | 5500 (216.5) | ||||
| Height of the machine | mm (in) | 5250 (206.6) | ||||
| Weight of the machine | kg (lb) | 22000 (50706) | 28000 (61725) | 30000 (66138) | 27000 (59524) | — |
